QO130EPD | MINIATURE CIRCUIT-BREAKER, QO, 30 A, 1P, 120 V, 10 KA, PLUG IN, EPD | Square D by Schneider Electric

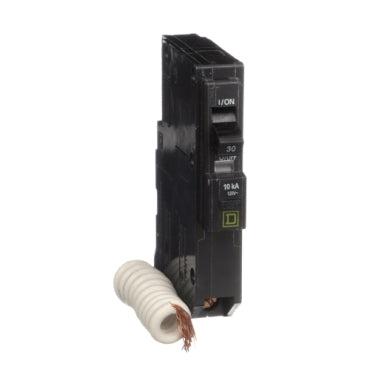

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to QO130EPD
Overview Details for QO130EPD
MINIATURE CIRCUIT-BREAKER, QO, 30 A, 1P, 120 V, 10 KA, PLUG IN, EPD
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 1 pole QO circuit breaker is rated at 30A at 120VAC. This unit provides 10kA breaking capacity and plug in mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This product includes a 30mA ground fault B protection. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555Specifications
- Product
- Miniature circuit-breaker
- Range
- QO
- Current Rating
- 30 A
- Voltage Rating
- 120 V AC
- Mounting Type
- Plug-in
- Number of Poles
- 1P
- Circuit Breaker Type
- Ground fault protecting class B 30 mA
- Ratings
- Not rated
- Electrical Connection
- Pressure plate
- Interrupt Rating
- 10 kA 120 V AC 50/60 Hz
- Number of Panel Spaces
- 1
- Wire Size
- AWG 14...AWG 8 copper;AWG 12...AWG 8 aluminium
- Tightening Torque
- 40.71 lbf.in (4.6 N.m) 0.00…0.02 in² (2.5…10 mm²) (AWG 16...AWG 14);40.71 lbf.in (4.6 N.m) 0.01…0.03 in² (4…20 mm²) (AWG 12...AWG 4)
- Height
- 4.13 in (105 mm)
- Width
- 0.75 in (19 mm)
- Depth
- 2.91 in (74 mm)
- Net Weight
- 0.53 lb(US) (0.240 kg)
- Certifications
- UL Listed;CSA
- Ambient Rating
- 104 °F (40 °C)
- Category
- 00910-QO-EPD;QOB-EPD BREAKERS
- Discount Schedule
- DE2A
- GTIN
- 785901763871
- Returnability
- Yes
- Country of origin
- MX
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 1.10 in (2.794 cm)
- Package 1 Width
- 5.50 in (13.97 cm)
- Package 1 Length
- 3.80 in (9.652 cm)
- Package 1 Weight
- 8.47 oz (240.0 g)
- Warranty
- 18 months
