NSYTBP342912 | Thalassa Multi-purpose Industrial Box, 341mm H x 291mm W x 128mm D, Wall Mount, Grey, IP66 | Square D

Brand: Square DSKU: NSYTBP342912
Square D | NSYTBP342912

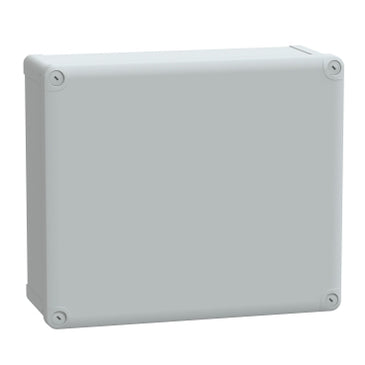

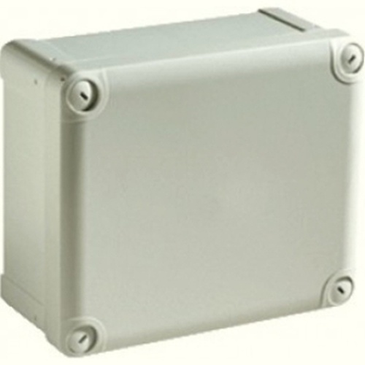

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to NSYTBP342912
Jump to: Overview & Specifications Reviews

Overview Details for NSYTBP342912

Thalassa Multi-purpose Industrial Box, 341mm H x 291mm W x 128mm D, Wall Mount, Grey, IP66

Thalassa Multi-purpose Industrial Box
  • Dimensions: 341mm H x 291mm W x 128mm D
  • Enclosure Mounting: Wall Mount
  • Color: Grey RAL 7035
  • Degree of Protection: IP66 conforming to NEMA 4, 4X Thalassa TBP industrial PC box with opaque PC cover H20. Int is 325 x 275 x 120 mm. Ext is 341 x 291 x 128 mm. Wall mounted enclosure. Low plain cover. Outside sealed is flat screwdriver captive screw lock. Certifications is DEMKO, SEMKO, TÜV, UL. UL 508 A Standard. Fire resistance 960°. Polycarbonate made. IP66 (NEMA 4.4X), IK08, Grey RAL 7035, Insulation Class II. Set of 5. Ambient temperature for storage/operation is (-15 to 60 °C)/(-25 to 80 °C).

    • Specifications

    range
    Thalassa
    product name
    Thalassa TBP
    Device Application
    Multi-purpose
    Category
    Industrial box
    Height
    13.43 in (341 mm)
    Width
    11.46 in (291 mm)
    Depth
    5.04 in (128 mm)
    internal height
    12.80 in (325 mm)
    internal width
    10.83 in (275 mm)
    internal depth
    4.72 in (120 mm)
    enclosure mounting
    Wall mounted
    device composition
    1 body;1 cover;4 cover screw
    body type
    One piece moulded
    type of front cover
    Low plain cover
    cover fixing
    Plastic screws
    lock type
    Captive screw flat outside sealed area
    removable parts
    Cover by captive screws
    material
    polycarbonate
    color
    Gray RAL 7035)
    Standards
    IEC 62208;UL 508 A
    Product Certifications
    TÜV;UL
    Electrical Insulation Class
    Class II
    mounting location
    Outdoor
    Net Weight
    2.56 lb(US) (1.16 kg)
    IP degree of protection
    IP66 conforming to NEMA 4.4X
    IK degree of protection
    IK08 IEC 62262
    fire resistance
    1760 °F (960 °C)
    Ambient Air Temperature for Storage
    5…140 °F (-15…60 °C)
    Operating temperature
    -13…176 °F (-25…80 °C)
    Category
    80033-ENCLOSURE SYSTEMS POLYESTER
    Discount Schedule
    ES1
    GTIN
    3606480165764
    Returnability
    Yes
    Country of origin
    HU
    Unit Type of Package 1
    PCE
    Number of Units in Package 1
    1
    Package 1 Height
    5.51 in (14.0 cm)
    Package 1 Width
    11.81 in (30.0 cm)
    Package 1 Length
    13.98 in (35.5 cm)
    Package 1 Weight
    3.46 lb(US) (1.57 kg)
    Unit Type of Package 2
    CAR
    Number of Units in Package 2
    4
    Package 2 Height
    15.75 in (40.0 cm)
    Package 2 Width
    15.75 in (40.0 cm)
    Package 2 Length
    23.62 in (60.0 cm)
    Package 2 Weight
    15.56 lb(US) (7.058 kg)
    Unit Type of Package 3
    P12
    Number of Units in Package 3
    48
    Package 3 Height
    53.54 in (136.0 cm)
    Package 3 Width
    31.50 in (80.0 cm)
    Package 3 Length
    47.24 in (120.0 cm)
    Package 3 Weight
    225.97 lb(US) (102.5 kg)
    Warranty
    18 months
