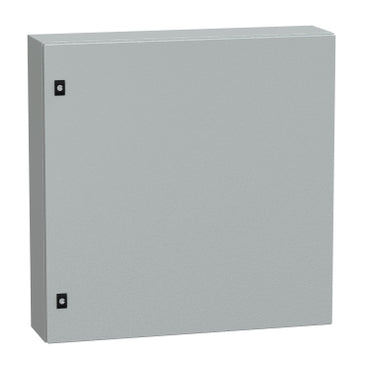

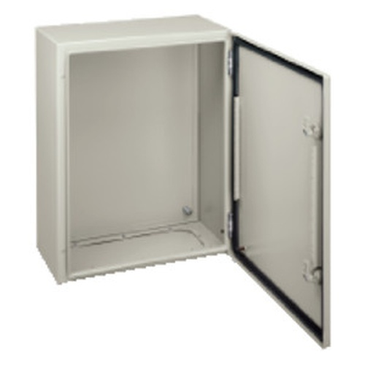

NSYCRN88200 | Spacial CRN Plain Door Enclosure w/o Mounting Plate. H800xW800xD200 IP66 IK10 RAL7035 | Square D by Schneider Electric
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to NSYCRN88200
Overview
Details for NSYCRN88200
Spacial CRN Plain Door Enclosure w/o Mounting Plate. H800xW800xD200 IP66 IK10 RAL7035
Spacial CRN Plain Door Enclosure w/o Mounting Plate- H800xW800xD200
- Sides made from a single folded section; Back welded with double profile forming a protected sealed area
- 1 Front-facing door
- 3mm double-bar lock
- Steel body
- Expoxy polyester powder finish
- Grey RAL 7035
- IP66 IK10
Specifications
- range
- Spacial
- product name
- Spacial CRN
- Application
- Multi-purpose
- Category
- Compact enclosure
- enclosure nominal height
- 31.50 in (800 mm)
- enclosure nominal width
- 31.50 in (800 mm)
- enclosure nominal depth
- 7.87 in (200 mm)
- installation accessory type
- Wall-mounting
- device composition
- 1 body;1 door;1 lock;2 cable gland plate bottom
- door type
- Solid
- mounting plate description
- Without mounting plate
- body type
- Sides made from a single folded section;Back welded with double profile forming a protected sealed area
- number of doors
- Front face 1
- door opening side
- Reversible 120 °)
- lock type
- 3 mm double-bar lock
- type of gland plate
- Standard
- accessibility for operation
- Front
- removable parts
- Door by hinges;Cable gland plate by screws
- material
- Body steel
- surface finish
- epoxy-polyester powder
- color
- Gray RAL 7035)
- Standards
- IEC 62208
- Product Certifications
- cUL;UL;DNV-GL
- Net Weight
- 56.91 lb(US) (25.813 kg)
- IP degree of protection
- IP66 IEC 60529
- IK degree of protection
- IK10 IEC 62262
- Category
- 80034-ENCLOSURE SYSTEMS WALL MOUNT METAL
- Discount Schedule
- ES1
- GTIN
- 3606480211768
- Returnability
- No
- Country of origin
- ES
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 8.66 in (22.0 cm)
- Package 1 Width
- 31.89 in (81.0 cm)
- Package 1 Length
- 31.89 in (81.0 cm)
- Package 1 Weight
- 58.08 lb(US) (26.344 kg)
- Warranty
- 18 months
