NSYCRN86200P | Spacial CRN Plain Door With Mount Plate, H800xW600xD200, IP66, IK10, Grey RAL7035 | Square D

Brand: Square DSKU: NSYCRN86200P

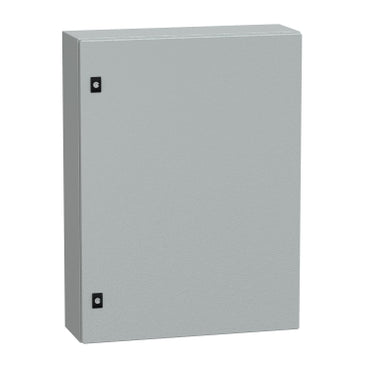

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to NSYCRN86200P

Jump to: Overview & Specifications Reviews

Overview Details for NSYCRN86200P

Spacial CRN Plain Door With Mount Plate, H800xW600xD200, IP66, IK10, Grey RAL7035

Spacial CRN Plain Door

Product or Component Type: Compact Enclosure
Dimensions: 800 H x 600 Q x 200 D mm
Installation Accessory Type: Wall-mounting
Mounting Plate Description: Plain
Degree of Protection: IP66, IK10
Color: Grey RAL 7035

The Spacial CRN wall-mounting compact enclosure comes in grey colour and designed for multi-purpose application. This compact enclosure is composed of body, cable gland plate, door with lock, mounting plate. The compact enclosure is made of galvanized steel (body), steel (door), making it durable and resistant. It has IP66 and IK10 protection level, which can help protect against impact, water and dust. The dimensions are (W) 600 mm x (H) 800 mm x (D) 200 mm. It features a back welded with double profile forming a protected sealed area, sides made from a single folded section. The door type is plain, it has 1 door(s) and the door opening side is reversible. Equipped with a 3 mm double-bar lock lock type. Featuring a epoxy-polyester powder surface finish, which ensures a bright, even and inviting finish. This device is qualified as a green premium product, with minimal use of hazardous substances. This compact enclosure is c.UL certified.

Specifications

range: Spacial
product name: Spacial CRN
Application: Multi-purpose
Category: Compact enclosure
enclosure nominal height: 31.50 in (800 mm)
enclosure nominal width: 23.62 in (600 mm)
enclosure nominal depth: 7.87 in (200 mm)
installation accessory type: Wall-mounting
device composition: 1 body;1 cable gland plate;1 door with lock;1 mounting plate
door type: Solid
mounting plate description: Plain
body type: Sides made from a single folded section;Back welded with double profile forming a protected sealed area
number of doors: Front face 1
door opening side: Reversible 120 °)
lock type: 3 mm double-bar lock
type of gland plate: Standard
accessibility for operation: Front
removable parts: Door by hinges;Cable gland plate by screws;Mounting plate by fixing element
material: Enclosure steel;Mounting plate galvanised steel
surface finish: Enclosure epoxy-polyester powder
color: Enclosure Gray RAL 7035)
Standards: IEC 62208
Product Certifications: cUL;UL;DNV-GL
Net Weight: 57.61 lb(US) (26.13 kg)
IP degree of protection: IP66 IEC 60529
IK degree of protection: IK10 IEC 62262
Category: 80034-ENCLOSURE SYSTEMS WALL MOUNT METAL
Discount Schedule: ES1
GTIN: 3606480211843
Returnability: No
Country of origin: ES
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 8.66 in (22 cm)
Package 1 Width: 24.02 in (61 cm)
Package 1 Length: 31.89 in (81 cm)
Package 1 Weight: 58.23 lb(US) (26.414 kg)
Unit Type of Package 2: PAM
Number of Units in Package 2: 15
Package 2 Height: 79.53 in (202 cm)
Package 2 Width: 39.37 in (100 cm)
Package 2 Length: 47.24 in (120 cm)
Package 2 Weight: 902.15 lb(US) (409.21 kg)
Warranty: 18 months
