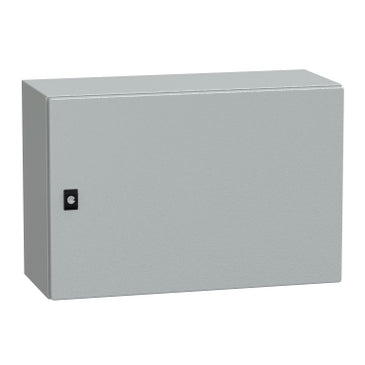

NSYCRN46250 | Spacial CRN Plain Door Without Mount Plate, H400xW600xD250, IP66, IK10, RAL7035 | Square D

Brand: Square DSKU: NSYCRN46250

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to NSYCRN46250

Jump to: Overview & Specifications Reviews

Overview Details for NSYCRN46250

Spacial CRN Plain Door Without Mount Plate, H400xW600xD250, IP66, IK10, RAL7035

Spacial CRN Plain Door

Product or Component Type: Compact Enclosure
Dimensions: H400xW600xD250
Installation Accessory Type: Wall-mounting
Mounting Plate Description: Without Mounting Plate
Degree of Protection: IP66, IK10
Color: Grey RAL 7035

The Spacial CRN wall-mounting compact enclosure comes in grey colour and designed for multi-purpose application. This compact enclosure is composed of body, cable gland plate, door, lock. The compact enclosure is made of steel (body), making it durable and resistant. It has IP66 and IK10 protection level, which can help protect against impact, water and dust. The dimensions are (W) 600 mm x (H) 400 mm x (D) 250 mm. It features a back welded with double profile forming a protected sealed area, sides made from a single folded section. The door type is plain, it has 1 door(s) and the door opening side is reversible. Equipped with a 3 mm double-bar lock lock type. Featuring a epoxy-polyester powder surface finish, which ensures a bright, even and inviting finish. This device is qualified as a green premium product, with minimal use of hazardous substances. This compact enclosure is c.UL certified.

Specifications

range: Spacial
product name: Spacial CRN
Application: Multi-purpose
Category: Compact enclosure
enclosure nominal height: 15.75 in (400 mm)
enclosure nominal width: 23.62 in (600 mm)
enclosure nominal depth: 9.84 in (250 mm)
installation accessory type: Wall-mounting
device composition: 1 body;1 cable gland plate;1 door;1 lock
door type: Solid
mounting plate description: Without mounting plate
body type: Sides made from a single folded section;Back welded with double profile forming a protected sealed area
number of doors: Front face 1
door opening side: Reversible 120 °)
lock type: 3 mm double-bar lock
type of gland plate: Standard
accessibility for operation: Front
removable parts: Door by hinges;Cable gland plate by screws
material: Body steel
surface finish: epoxy-polyester powder
color: Gray RAL 7035)
Standards: IEC 62208
Product Certifications: cUL;UL;DNV-GL
Net Weight: 23.85 lb(US) (10.816 kg)
IP degree of protection: IP66 IEC 60529
IK degree of protection: IK10 IEC 62262
Category: 80033-ENCLOSURE SYSTEMS POLYESTER
Discount Schedule: ES1
GTIN: 3606480212376
Returnability: No
Country of origin: ES
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 10.43 in (26.5 cm)
Package 1 Width: 16.14 in (41.0 cm)
Package 1 Length: 24.21 in (61.5 cm)
Package 1 Weight: 23.06 lb(US) (10.459 kg)
Warranty: 18 months
