NSYCRN108250 | Spacial CRN Plain Door Enclosure w/o Mounting Plate. H1000xW800xD250 IP66 IK10 RAL7035 | Square D

Brand: Square DSKU: NSYCRN108250

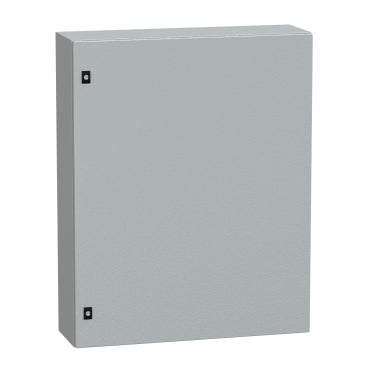

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to NSYCRN108250

Jump to: Overview & Specifications Reviews

Overview Details for NSYCRN108250

Spacial CRN Plain Door Enclosure w/o Mounting Plate. H1000xW800xD250 IP66 IK10 RAL7035

Spacial CRN Plain Door Enclosure w/o Mounting Plate

H1000xW800xD250
Sides made from a single folded section; Back welded with double profile forming a protected sealed area
1 Front-facing door
3mm double-bar lock
Steel body
Expoxy polyester powder finish
Grey RAL 7035
IP66 IK10

The Spacial CRN wall-mounting compact enclosure comes in grey colour and designed for multi-purpose application. This compact enclosure is composed of body, cable gland plate, door, lock. The compact enclosure is made of steel (body), making it durable and resistant. It has IP66 and IK10 protection level, which can help protect against impact, water and dust. The dimensions are (W) 800 mm x (H) 1000 mm x (D) 250 mm. It features a back welded with double profile forming a protected sealed area, sides made from a single folded section. The door type is plain, it has 1 door(s) and the door opening side is reversible. Equipped with a 3 mm double-bar lock lock type. Featuring a epoxy-polyester powder surface finish, which ensures a bright, even and inviting finish. This device is qualified as a green premium product, with minimal use of hazardous substances. This compact enclosure is c.UL certified.

Specifications

range: Spacial
product name: Spacial CRN
Application: Multi-purpose
Category: Compact enclosure
enclosure nominal height: 39.37 in (1000 mm)
enclosure nominal width: 31.50 in (800 mm)
enclosure nominal depth: 9.84 in (250 mm)
installation accessory type: Wall-mounting
device composition: 1 body;1 door;1 lock;2 cable gland plate bottom
door type: Solid
mounting plate description: Without mounting plate
body type: Back welded with double profile forming a protected sealed area;Sides made from a single folded section
number of doors: Front face 1
door opening side: Reversible 120 °)
lock type: 3 mm double-bar lock
type of gland plate: Standard
accessibility for operation: Front
removable parts: Door by hinges;Cable gland plate by screws
material: Body steel
surface finish: epoxy-polyester powder
color: Gray RAL 7035)
Standards: IEC 62208
Product Certifications: UL;cUL;DNV-GL
Net Weight: 72.75 lb(US) (33 kg)
IP degree of protection: IP66 IEC 60529
IK degree of protection: IK10 IEC 62262
Category: 80034-ENCLOSURE SYSTEMS WALL MOUNT METAL
Discount Schedule: ES1
GTIN: 03606480212710
Returnability: No
Country of origin: ES
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 10.63 in (27.0 cm)
Package 1 Width: 31.89 in (81.0 cm)
Package 1 Length: 39.96 in (101.5 cm)
Package 1 Weight: 62.76 lb(US) (28.466 kg)
Unit Type of Package 2: PAM
Number of Units in Package 2: 8
Package 2 Height: 68.90 in (175.0 cm)
Package 2 Width: 39.37 in (100.0 cm)
Package 2 Length: 47.24 in (120.0 cm)
Package 2 Weight: 530.71 lb(US) (240.728 kg)
Warranty: 18 months
