NSYCCOTHO | Climasys Simple Thermostat | Square D by Schneider Electric

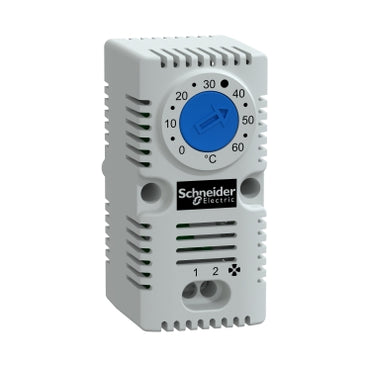

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to NSYCCOTHO

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Square D NSYCCOTHO Documents

Datasheet More Info

Overview

Details for NSYCCOTHO

Climasys Simple Thermostat

Climasys Simple Thermostat ClimaSys CC Simple thermostat. 250V AC. 68 x 33 x 44 mm. Sensor Bimetal with NO contact type. 1 ventilation function. Electrical connection by 4 terminals 2.5mm². Mounting mode by 35mm DIN rail, cross rails, on mounting plate Spacial upright. Made in PC. Light grey. Self-extinguishing UL94 (material V0). Protection IP20.

Specifications

range: ClimaSys
product name: ClimaSys CC
Product or Component Type: Simple thermostat
temperature setting range: 32…140 °F (0…60 °C)
Information Displayed: Temperature in °C
input voltage: 250 V
Sensor Type: Bimetal
contacts type and composition: NO
contact resistance: 10 mOhm
Service Life in Cycles: 100000 cycles
maximum switching capacity: 2 A 120...250 V AC inductive 0.6;10 A 250 V AC resistive;15 A 120 V AC resistive;30 W DC
electrical connection: 4 terminals 2.5 mm²
Mounting Mode: Clipped
height: External 2.68 in (68 mm)
width: External 1.30 in (33 mm)
depth: External 1.73 in (44 mm)
Net Weight: 1.41 oz (40 g)
Mounting Location: 35 mm DIN rail;On mounting plate;Cross rails;Spacial upright
Ambient air temperature for operation: -4…176 °F (-20…80 °C)
IP Degree of Protection: IP20
hysteresis: 7 %
number of outputs: 1 ventilation function
Material: PC
Color: Light gray
flame retardance: Self-extinguishing conforming to UL94 (material V0)
Product Certifications: UL
Category: 80036-ENCLOSURE SYSTEMS ACCESSORIES
Discount Schedule: ES1
GTIN: 3606480152504
Returnability: Yes
Country of origin: DE
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.77 in (4.5 cm)
Package 1 Width: 2.36 in (6.0 cm)
Package 1 Length: 3.15 in (8.0 cm)
Package 1 Weight: 2.26 oz (64.0 g)
Unit Type of Package 2: CAR
Number of Units in Package 2: 100
Package 2 Height: 9.45 in (24.0 cm)
Package 2 Width: 12.99 in (33.0 cm)
Package 2 Length: 16.14 in (41.0 cm)
Package 2 Weight: 16.73 lb(US) (7.588 kg)
Unit Type of Package 3: P12
Number of Units in Package 3: 3600
Package 3 Height: 65.35 in (166.0 cm)
Package 3 Width: 31.50 in (80.0 cm)
Package 3 Length: 47.24 in (120.0 cm)
Package 3 Weight: 617.29 lb(US) (280.0 kg)
Warranty: 18 months
