NSYCCOTH120VID | Climasys CC - Electronical Thermostat 95-135V - Range of Temperature -40-80 deg. C | Square D

Brand: Square DSKU: NSYCCOTH120VID

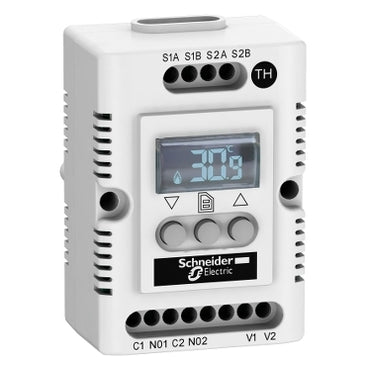

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for NSYCCOTH120VID

Climasys CC - Electronical Thermostat 95-135V - Range of Temperature -40-80 deg. C

Climasys CC - Electronical Thermostat 95...135V - Range of Temperature -40…80 deg. C

range: ClimaSys
product name: ClimaSys CC
Product or Component Type: Electronical thermostat
temperature setting range: -40…176 °F (-40…80 °C)
Display Type: OLED screen
Information Displayed: Temperature in °F;Temperature in °C
input voltage: 90...140 V AC
Sensor Type: Optional NTC external sensor
maximum switching capacity: 4 A 120 V AC
electrical connection: 10 terminals 2.5 mm²
Mounting Mode: By screws;Clipped
height: External 3.35 in (85 mm)
width: External 2.20 in (56 mm)
depth: External 1.73 in (44 mm)
Mounting Location: Spacial upright;35 mm DIN rail;Cross rails;On mounting plate
Ambient air temperature for operation: -40…176 °F (-40…80 °C)
hysteresis: 2 K programmed value
number of outputs: 2 ventilation/heating function
Material: PC
Color: Light gray
flame retardance: Self-extinguishing conforming to UL94 (material V0)
Product Certifications: UR
Category: 80036-ENCLOSURE SYSTEMS ACCESSORIES
Discount Schedule: ES1
GTIN: 3606480152610
Returnability: No
Country of origin: ES
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 2.76 in (7.0 cm)
Package 1 Width: 2.17 in (5.5 cm)
Package 1 Length: 1.97 in (5.0 cm)
Package 1 Weight: 2.47 oz (70.0 g)
Warranty: 18 months
