NF430L2 | 250A 4 WIRE 30 SPACE 3 PHASE NF INTERIOR ALUMINUM | Square D by Schneider Electric

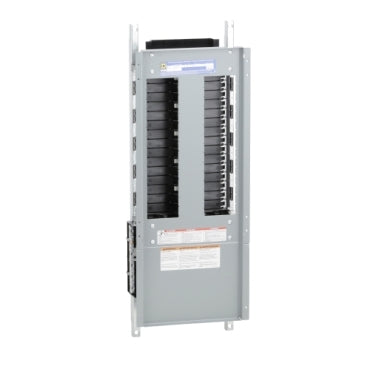

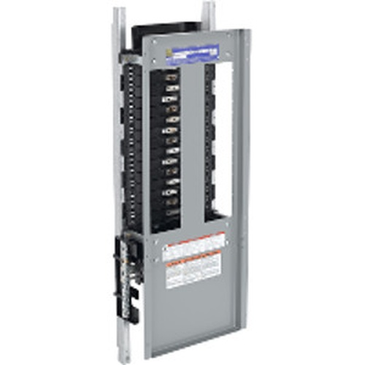

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to NF430L2
Overview
Details for NF430L2
250A 4 WIRE 30 SPACE 3 PHASE NF INTERIOR ALUMINUM
NF Panelboard interiors can be used for applications such as commercial buildings, industrial buildings, stadiums, and offices. These interiors provide protection for commercial and industrial applications. NF Panelboards feature a wide selection of circuit breakers, accessories, and ready to install kits. NF Panelboards are field convertible to top or bottom feed. NF Panelboards are convertible from main lug to main breaker. NF Panelboards can provide 200% rated neutrals for nonlinear loads. Some factory installed options are split bus, lighting contactors, compression lugs, surge protection devices, and phenolic nameplates. The main lugs are rated at 250A 480Y/277 VAC 3 phase. Interior has an interrupt current rating of up to 65 kA. This interior is for a 4 wire system with 30 spaces and has an aluminum bus bar. Interior is for EDB, EDG, and EDJ branch circuit breakers. Lug connections will accept 6 AWG to 350 kcmil aluminum wire. The interior is 33 inches tall and 10.44 inches wide. This interior is UL listed and CSA certified. NF Panelboard interiors can be used for applications such as commercial buildings, industrial buildings, stadiums, and offices.Specifications
- Panelboard Type
- Main lugs
- Branch Circuit Breaker Type
- EDB/EDG/EDJ
- Busbar Material
- Aluminium
- number of spaces
- 30
- Enclosure Nominal Height
- 38 in (965.20 mm);50 in (1270.00 mm)
- Enclosure Nominal Width
- 20 in (508.00 mm)
- Enclosure Nominal Depth
- 5.75 in (146.05 mm) NEMA 1;6.5 in (165.10 mm) NEMA 3R/5/12
- Line Rated Current
- 250 A
- [Iu] rated interrupted current
- 65 kA
- wiring configuration
- 4-wire
- Number of Phases
- 3 phase
- Voltage Rating
- 600Y/347 V AC
- connections - terminals
- Lug line AWG 6...350 kcmil aluminium;Lug neutral AWG 6...350 kcmil aluminium
- tightening torque
- 40.01…50.01 lbf.in (4.52…5.65 N.m) 0.02…0.10 in² (13.30…67.43 mm²) (AWG 6...AWG 2/0);100.01 lbf.in (11.3 N.m) 0.02…0.10 in² (13.30…67.43 mm²) (AWG 6...AWG 2/0);274.99 lbf.in (31.07 N.m) 0.02…0.27 in² (13.30…177.3 mm²) (AWG 6...350 kcmil);274.99 lbf.in (31.07 N.m) 0.02…0.20 in² (13.30…126.7 mm²) (AWG 6...250 kcmil);274.99 lbf.in (31.07 N.m) 0.17…0.24 in² (107.2…152 mm²) (AWG 4...300 kcmil)
- Height
- 33 in (838.20 mm)
- Width
- 10.44 in (265.18 mm)
- Net Weight
- 24.01 lb(US) (10.89 kg)
- Standards
- UL 67;CSA C22.2
- Category
- 08350-NF MLO INTERIOR RTA
- Discount Schedule
- PE1A
- GTIN
- 785901871477
- Returnability
- Yes
- Country of origin
- MX
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 6.30 in (16.002 cm)
- Package 1 Width
- 14.00 in (35.56 cm)
- Package 1 Length
- 38.30 in (97.282 cm)
- Package 1 Weight
- 20.45 lb(US) (9.276 kg)
- Unit Type of Package 2
- PAL
- Number of Units in Package 2
- 15
- Package 2 Height
- 35.20 in (89.408 cm)
- Package 2 Width
- 40.00 in (101.6 cm)
- Package 2 Length
- 48.00 in (121.92 cm)
- Package 2 Weight
- 307.00 lb(US) (139.253 kg)
- Warranty
- 18 months
