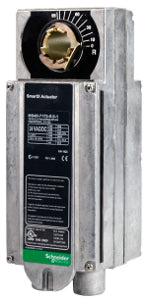

MS40-7170 | Damper Actuator | 150 in-lb | Spg Rtn | 120V | Modulating | Schneider Electric

Damper Actuator | 150 in-lb | Spg Rtn | 120V | Modulating

Actuator: (MS40-7170):

• Actuator Type: Electric
• Control Signal: Proportional
• Control Signal Range: 2 to 10 VDC, 4 to 20 mAdc
• Loss of Power Type: Spring Return
• Power Input Voltage: 120 VAC
• Leads and Connections: 3 ft Appliance
• Torque: 150 in-lb
• Mechanical Movement: Rotary
• Protection Rating: NEMA 1, NEMA 4
• Product Line: Schneider Electric
• Product Range: SmartX Actuator
• Product Series: Mx4x-7xxx
• Actuator Use: Dampers, Globe Valves

Product Alert: Linkage required for Globe Valve Assembly use. NEMA 4 with customer supplied water tight conduit connectors. DuraDrive Direct Coupled Actuators are designed to be used in both damper and valve control applications. The follow general instructions are for damper applications, refer to the Applicable Literature table for valve literature. The MA40-704X, MA4X-707X and MA4X-715X series spring return actuators are used for the on-off, fail safe control of dampers and valves in HVAC systems.
