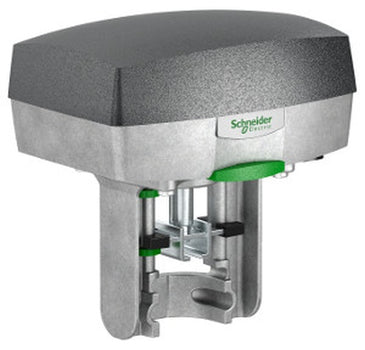

MP500C | Forta MP500C Electric PIBCV Actuator, Multi-Signal Control, Non Spring Return, 24 Vac/Vdc, 500N, Linear, IP54 | Schneider Electric

Brand: Schneider ElectricSKU: MP500C

The photo is for representation purposes only and may not be a photo of product being purchased.

Suggested Alternatives

Overview Details for MP500C

Forta MP500C Electric PIBCV Actuator, Multi-Signal Control, Non Spring Return, 24 Vac/Vdc, 500N, Linear, IP54

Actuator: (MP500C):

Actuator Type: Electric
Control Signal: Proportional
Control Signal Range: 0 to 10 VDC, 4 to 20 mAdc
Loss of Power Type: Non-Spring Return
Power Input Voltage: 24 VAC, 24 VDC
Leads and Connections: No leads
Force: 500 N
Mechanical Movement: Linear
Auxiliary Switch: Available as accessory
Additional Features: Field selectable floating input signal travel time
Protection Rating: IP54
Product Line: Schneider Electric
Product Range: SmartX Actuator
Product Series: MP500C
Actuator Use: Dampers, Electronic Pressure Independent Characterized Control Valves
