MP300-SRU | SmartX, Actuator, Proportional/Floating, Spring Return, Normally Open, 24 VAC/VDC, 300 N, LED Signaling, IP54 | Schneider Electric

Brand: Schneider ElectricSKU: MP300-SRU

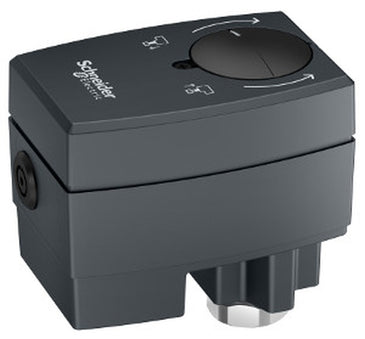

The photo is for representation purposes only and may not be a photo of product being purchased.

Suggested Alternatives

Overview Details for MP300-SRU

SmartX, Actuator, Proportional/Floating, Spring Return, Normally Open, 24 VAC/VDC, 300 N, LED Signaling, IP54

Actuator: (MP300-SRU):

Actuator Type: Electric
Control Signal: Proportional, Floating
Control Signal Range: 0 to 10 VDC, 4 to 20 mAdc
Loss of Power Type: Spring Return
Power Input Voltage: 24 VAC
Leads and Connections: No leads
Force: 300 N
Mechanical Movement: Linear
Additional Features: LED Status Indicator, Valve stroke length selection
Protection Rating: IP54
Product Line: Schneider Electric
Product Range: SmartX Actuator
Product Series: MP300-SR
Actuator Use: Dampers, Electronic Pressure Independent Characterized Control Valves
