MP131-24MP | SmartX, Pressure Independent Valve Actuator, proportional, non-spring return, 24 Vac, 130 N, LED signaling, IP42 | Schneider Electric

Brand: Schneider ElectricSKU: MP131-24MP

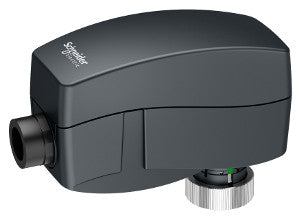

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to MP131-24MP

Suggested Alternatives

Jump to: Overview & Specifications Reviews

Overview Details for MP131-24MP

SmartX, Pressure Independent Valve Actuator, proportional, non-spring return, 24 Vac, 130 N, LED signaling, IP42

Actuator: (MP131-24MP):

Actuator Type: Electric
Control Signal: Proportional
Control Signal Range: 0 to 10 VDC, 4 to 20 mAdc
Loss of Power Type: Non-Spring Return
Power Input Voltage: 24 VAC
Leads and Connections: No leads
Force: 130 N
Mechanical Movement: Linear
Additional Features: LED Status Indicator, Weekly anti blocking selection
Protection Rating: IP42
Product Line: Schneider Electric
Product Range: SmartX Actuator
Product Series: MP131
Actuator Use: Dampers, Electronic Pressure Independent Characterized Control Valves

The SmartX PIBCV range is a comprehensive selection of automatic balancing and control valves that provide flow limitation, with full control authority over hydronic regulation. Automatic balancing within PIBCV valves provide stable flow regulation regardless of pressure fluctuations in the system and all valves have an adjustable flow limitation set point. The control valve portion of the PIBCV further regulates the water/ glycol flow from close-off up to the maximum flow limit setting. Typical applications are temperature control of chillers, airhandling units, heat exchanges and terminal units such as fan coils, induction units and radiant panels.
