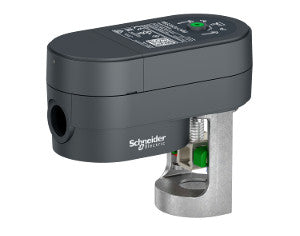

MGF350V-24MP | SmartX, Globe Valve Actuator, proportional, non-spring return, 24 Vac/Vdc, 67 lbf, feedback, LED status indicator, NEMA 2 | Schneider Electric
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to MGF350V-24MP
Overview
Details for MGF350V-24MP
SmartX, Globe Valve Actuator, proportional, non-spring return, 24 Vac/Vdc, 67 lbf, feedback, LED status indicator, NEMA 2
Actuator: (MGF350V-24MP):- Actuator Type: Electric
- Control Signal: Modulating
- Control Signal Range: 0 to 10 VDC, 2 to 10 VDC, 4 to 20 mAdc
- Loss of Power Type: Non-Spring Return
- Power Input Voltage: 24 VAC, 20 to 24 VDC
- Force: 67 lbf
- Mechanical Movement: Linear
- Additional Features: Feedback and LED Status Indicator
- Protection Rating: NEMA 2
- Product Line: Schneider Electric
- Product Range: SmartX Actuator
- Product Series: MGF350V
- Actuator Use: Globe Valves
Product Alert: Field selectable. The 2 to 10 VDC output signal range also includes an alarm signal. MG350V globe valve actuators are non-spring return electromechanical actuators for the control of two-way and three-way globe valves for fan coils, unit ventilators, reheat, cooling units, perimeter heating, and other applications. Proportional, Floating, and Pulse Width Modulated (PWM) models are available for direct mounting on 1/2" … 2" VB-7000 globe valves. The MG350V actuators are also compatible with older field-installed 1/2" … 1-1/4" VB-9000 globe valves as well as other valves (with the addition of AV-800 Globe Valve Adapters).
Specifications
Item Number | MGF350V-24MP |
Brand | Schneider Electric |
