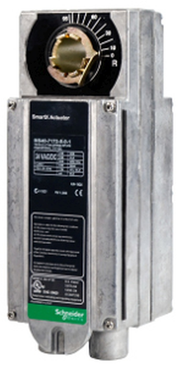

MF41-6343 | Damper Actuator | 300 in-lb | Non-Spg Rtn | 24V | Floating | Schneider Electric

Damper Actuator | 300 in-lb | Non-Spg Rtn | 24V | Floating

Actuator: (MF41-6343):

• Actuator Type: Electric
• Control Signal: Floating
• Loss of Power Type: Non-Spring Return
• Power Input Voltage: 22 to 30 VDC, 24 VAC/VDC
• Leads and Connections: 3 ft Plenum
• Torque: 300 in-lb
• Mechanical Movement: Rotary
• Protection Rating: NEMA 1, NEMA 4
• Product Line: Schneider Electric
• Product Range: SmartX Actuator
• Product Series: Mx4x-6xxx
• Actuator Use: Dampers, Globe Valves

Product Alert: Linkage required for Globe Valve Assembly use. NEMA 4 with customer supplied water tight conduit connectors. The Schneider Electric MF4 and MS4 Series DuraDrive™ direct coupled, non-spring return actuators are designed to accept tri-state or proportional control signals from a DDC system or a thermostat for HVAC damper applications. Typical applications include air handling unit dampers and inlet vanes, VAV boxes, and unitary equipment. The actuators range in torque from 35 to 300 in-lb (4 to 34 Nm).
