METSEEM3560A | EM3500, LOGGING, BACNET, ROPE CT | Square D

Brand: Square DSKU: METSEEM3560A

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to METSEEM3560A

Jump to: Overview & Specifications Reviews

Overview Details for METSEEM3560A

EM3500, LOGGING, BACNET, ROPE CT

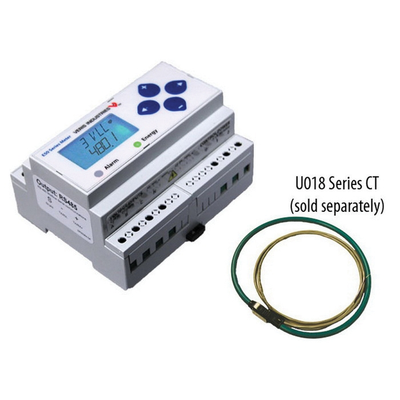

EM3500, LOGGING, BACNET, ROPE CT The EM3500 series offer a three-phases DIN rail-mounted energy meters fitted for accurate cost allocation and sub-metering. EM35xxA models are designed for use exclusively with Rogowski coil CTs where integrator and power supply for the CTs are built into the meter. Not recommanded for high harmonic application. Current input from 20A to 5000A with the Rogowski coil, ANSI C12.20 0.5% accuracy, IEC 62053-22 class 0.5S. The data logging capability protects data in the event of a power failure. Native BACnet and phase alarms are all provided to suit a wide variety of applications. Additional pulse input provide an easy way to incorporate simple WAGES sensors using a BACnet system. Suitable for a 230V AC network, with a supply voltage range of 90V AC to 300V AC at 50Hz or 60Hz. Compliant with UL508, CSA 22.2 number 14-05 and EN 61010-1. Product dimensions are as follows: width 107 mm, depth 59 mm, height 91 mm and product weight 280 g.

Specifications

range: PowerLogic
range of product: PowerLogic EM3500
device short name: EM3560A
Product or Component Type: Energy meter
metering type: Peak demand power PM;QM;SM;Current I1;I2;I3;Iavg;Demand power P;Q;S;Voltage U21;U32;U13;V1;V2;V3
poles description: 3P + N
type of measurement: Active and reactive power total;Active and reactive power per phase;Apparent power total;Apparent power per phase;Power factor total;Power factor per phase;Peak demand power;Current;Voltage;Frequency
Device Application: Sub billing;Partial meter
accuracy class: Class 0.5S power IEC 62053-22;Class 0.5S energy IEC 62053-22;Class 0.5S power ANSI C12.20;Class 0.5S energy ANSI C12.20
measurement accuracy: Power +/- 0.5 %;Energy +/- 0.5 %
input type: Rogowski coil 50...5000 A
rated voltage: 90…347 V
Network Frequency: 50 Hz;60 Hz
Technology Type: Electronic
Display Type: Backlit LCD
measurement current: 20…5000 A
display digits: 5
information displayed: Status and alert;Communication with system;Input/output status;Error;Tx activity;Rx activity;Instant power per usage
tamperproof of settings: Protected by access code
communication port protocol: BACnet MS/TP 9600 bauds...115200 bauds (automatic detection) - 2-wire
communication port support: Screw terminal block RS485
Communication Service: Total cumulated energy;Total cumulated active energy
data recording: Energy consumption logs
Demand intervals: External synchronisation to communication;Fixed or rolling block
local signalling: Red LED threshold reached;Green flashing LED output signal
number of accumulator inputs: 1 pulse
Number of Outputs: 1 alarm output
buffer size: 32-bit 3
[Ue] rated operational voltage: 90...347 V AC 50/60 Hz between phase and neutral UL;156...600 V AC 50/60 Hz between phases UL;90...300 V AC 50/60 Hz between phase and neutral CE;125...300 V DC
power consumption in VA: 5 VA 347 V AC between phase and neutral);5 VA 600 V AC between phases)
power consumption in W: 3 W 300 V
ride-through time: 100 ms 120 V AC
Mounting Mode: By screws;Clip-on
Mounting Support: DIN rail
Standards: IEC 61010-1;UL 508;CSA C22.2 No 14-05
product certifications: CE IEC 61010;CULus UL 508
relative humidity: 0…95 %
ambient air temperature for operation: -22…158 °F (-30…70 °C)
Ambient Air Temperature for Storage: -40…185 °F (-40…85 °C)
Color: Dark grey
9 mm pitches: 12
Width: 4.21 in (107 mm)
Height: 3.58 in (91 mm)
Depth: 2.32 in (59 mm)
Category: 09798-POWERLOGIC EM3500 SERIES
Discount Schedule: PL1
Returnability: Yes
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 3.80 in (9.65 cm)
Package 1 Width: 8.30 in (21.08 cm)
Package 1 Length: 9.50 in (24.13 cm)
Package 1 Weight: 19.20 oz (544.311 g)
