METSEEM3550A | EM3500, 2 QUAD, MODBUS, ROPE CT | Square D by Schneider Electric

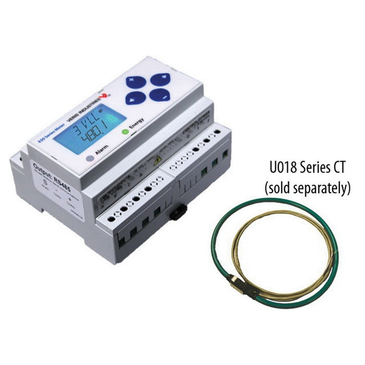

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to METSEEM3550A

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Square D METSEEM3550A Documents

Datasheet More Info

Overview

Details for METSEEM3550A

EM3500, 2 QUAD, MODBUS, ROPE CT

The EM3500 series offer a three-phases DIN rail-mounted energy meters fitted for accurate cost allocation and sub-metering. EM35xxA models are designed for use exclusively with Rogowski coil CTs where integrator and power supply for the CTs are built into the meter. Not recommanded for high harmonic application. Current input from 20A to 5000A with the Rogowski coil, ANSI C12.20 0.5% accuracy, IEC 62053-22 class 0.5S. Modbus, pulse output, and phase alarms are all provided to suit a wide variety of applications. Suitable for a 230V AC network, with a supply voltage range of 90V AC to 300V AC at 50Hz or 60Hz. Compliant with UL508, CSA 22.2 number 14-05 and EN 61010-1. Product dimensions are as follows: width 107 mm, depth 59 mm, height 91 mm and product weight 280 g.

Specifications

range: PowerLogic
range of product: PowerLogic EM3500
device short name: EM3550A
Product or Component Type: Energy meter
metering type: Peak demand power PM;QM;SM;Demand power P;Q;S;Voltage U21;U32;U13;V1;V2;V3;Current I1;I2;I3;Iavg
poles description: 3P + N
type of measurement: Active and reactive power total;Active and reactive power per phase;Apparent power total;Apparent power per phase;Power factor total;Power factor per phase;Peak demand power;Current;Voltage;Frequency
Device Application: Sub billing;Partial meter
accuracy class: Class 0.5S power IEC 62053-22;Class 0.5S energy IEC 62053-22;Class 0.5S power ANSI C12.20;Class 0.5S energy ANSI C12.20
measurement accuracy: Power +/- 0.5 %;Energy +/- 0.5 %
input type: Rogowski coil 50...5000 A
rated voltage: 90…347 V
Network Frequency: 50 Hz;60 Hz
Technology Type: Electronic
Display Type: Backlit LCD
measurement current: 20…5000 A
display digits: 5
information displayed: Status and alert;Communication with system;Input/output status;Error;Tx activity;Rx activity;Instant power per usage
tamperproof of settings: Protected by access code
communication port protocol: Modbus RTU 1200…38400 bps - 2-wire
communication port support: Screw terminal block RS485
Communication Service: Total cumulated energy;Total cumulated active energy
data recording: Energy consumption logs
Demand intervals: External synchronisation to communication;Fixed or rolling block
local signalling: Red LED threshold reached;Green flashing LED output signal
Number of Outputs: 1 alarm output;1 pulse
[Ue] rated operational voltage: 90...347 V AC 50/60 Hz between phase and neutral UL;156...600 V AC 50/60 Hz between phases UL;90...300 V AC 50/60 Hz between phase and neutral CE;125...300 V DC
power consumption in VA: 5 VA 347 V AC between phase and neutral);5 VA 600 V AC between phases)
power consumption in W: 3 W 300 V
ride-through time: 100 ms 120 V AC
Mounting Mode: Clip-on;By screws
Mounting Support: DIN rail
Standards: IEC 61010-1;CSA C22.2 No 14-05;UL 508
product certifications: CE IEC 61010;CULus UL 508
relative humidity: 0…95 %
ambient air temperature for operation: -22…158 °F (-30…70 °C)
Ambient Air Temperature for Storage: -40…185 °F (-40…85 °C)
Color: Dark grey
9 mm pitches: 12
Width: 4.21 in (107 mm)
Height: 3.58 in (91 mm)
Depth: 2.32 in (59 mm)
Category: 09798-POWERLOGIC EM3500 SERIES
Discount Schedule: PL1
GTIN: 3606481969262
Returnability: Yes
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 3.80 in (9.65 cm)
Package 1 Width: 8.30 in (21.08 cm)
Package 1 Length: 9.50 in (24.13 cm)
Package 1 Weight: 19.20 oz (544.311 g)
