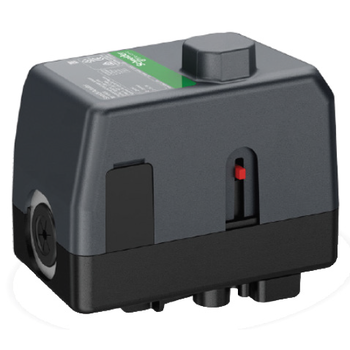

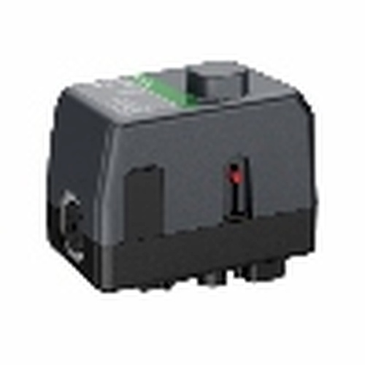

M313A00 | SmartX, Ball Valve Actuator, Proportional, Spring Return Open, 24 VAC, Terminal Block, NEMA 2 | Schneider Electric

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to M313A00

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Schneider Electric M313A00 Documents

More Info

Overview

Details for M313A00

SmartX, Ball Valve Actuator, Proportional, Spring Return Open, 24 VAC, Terminal Block, NEMA 2

Actuator: (M313A00):

Actuator Type: Electric
Control Signal: Proportional
Control Signal Range: 0 to 10 VDC, 0 to 5 VDC, 4 to 20 mAdc, 5 to 10 VDC
Loss of Power Type: Spring Return
Power Input Voltage: 24 VAC
Leads and Connections: Terminal Block
Mechanical Movement: Rotary
Protection Rating: NEMA 2
Product Line: Schneider Electric
Product Range: SmartX Actuator
Product Series: M313
Actuator Use: Ball Valves

The VBB and VBS Series valves with SmartX Actuators are 2-Way or 3-Way, 1/2" or 3/4", characterized ball valves. The M3 and M2 SmartX Actuators are direct coupled to the VBB/VBS Series valves and accept two-position, floating or proportional control signals from a DDC system, controller, or thermostat for control of hot or chilled water, or solutions of up to 60% glycol. Typical applications include VAV reheat, fan coil units, hot and chilled water coils in air handling units, heat pumps and unit ventilators.
