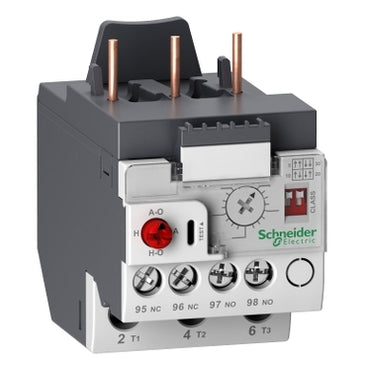

TeSys LRD Electronic Thermal Overload Relay, 3P, 5A, IP20

TeSys LRD Electronic Thermal Overload Relay
  • Poles Description: 3-Poles
  • Mounting Support: Plate and rail, with specific accessories, under contactor
  • Rated Operational Voltage: 690V for Power Circuit, 660V for signaling circuit
  • Rated Insulation Voltage: 1000V power circuit, 690V signaling circuit
  • Control Type: Red push-button stop and manual reset, White 2 microswitches adjustable trip class, Red knob for automatic reset mode, Grey dial for full-load current adjustment mode
  • Conventional Free Air Thermal Current: 5A
  • Degree of Protection: IP20 front face conforming to IEC60529 and VDE 60255-8
LR9D32 is a TeSys LR9D electronic overload relay from Schneider Electric to be used with a TeSys D contactor. With a thermal range 6.4-32A, selectable tripping class 5-10-20-30 and phase unbalance protection, it protects motors 3 to 11kW@400V. LR9D32 is a TeSys LR9D electronic overload relay from Schneider Electric for direct mounting on TeSys D contactors. With a large thermal setting range 6.4-32A, a selectable tripping class 5-10-20-30 and phase unbalance detection, it protects motors 3 to 11kW@400V. It provides manual test & reset buttons, automatic reset, trip auxiliary contact and flag indicator. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach). Thermal overload protection, electronic type, with phase unbalance protection (differential), self powered (no external power supply needed). Direct mounting on the bottom terminals of a Tesys LC1D09-D38 to form a compact starter contactor. Light and compact, 45mm wide. Manual control with test & reset buttons, manual / automatic reset selector. High accuracy, temperature compensated to keep a precise tripping over the ambient temperature range. Wide protection adjustment range 6.4-32A and selectable tripping class 5-10-20 -30. Trip signaling with 1NO+1NC auxiliary contacts and trip flag indicator. 90% reduction in energy dissipation compared to a thermal overload relay. Can be completed with terminal blocks and separate mounting accessories (LAD7B).

Specifications

range
TeSys
product name
TeSys LRD
device short name
LR9D
Product or Component Type
Electronic thermal overload relay
relay application
Motor protection
Product Compatibility
LC1D09;LC1D25;LC1D32;LC1D38;LC1D12;LC1D18
thermal overload class
Class 5…30
thermal protection adjustment range
6.4…32 A
Power Consumption in W
300 mW
mounting support
Under contactor;Plate;with specific accessories;Rail;with specific accessories
[Ue] rated operational voltage
690 V power circuit;660 V signalling circuit
[Ui] rated insulation voltage
Power circuit 1000 V;Signalling circuit 690 V
tripping threshold
1.25 In IEC 60947-4-1
control type
Red push-button stop and manual reset;White 2 microswitches adjustable trip class;Red knob automatic reset;Gray dial full-load current adjustment
time range
1.5...4 min - automatic reset time
[Ith] conventional free air thermal current
5 A signalling circuit
associated fuse rating
5 A gG signalling circuit;5 A BS signalling circuit
[Uimp] rated impulse withstand voltage
6 kV
phase failure sensitivity
Phase difference > 40% 3 s IEC 60947-4-1
electromagnetic compatibility
Surge withstand 2 kV common mode IEC 61000-4-5;Resistance to electrostatic discharge 8 kV IEC 61000-4-2;Immunity to radiated radio-electrical interference 10 V/m IEC 61000-4-3;Immunity to fast transients 2 kV IEC 61000-4-4
connections - terminals
Control circuit screw clamp terminals 1 0.00 in² (2.5 mm²) solid or flexible - without cable end;Power circuit screw clamp terminals 1 0.02 in² (16 mm²) solid or flexible - without cable end
tightening torque
Control circuit 0.8 N.m screw clamp terminals;Power circuit 3.1 N.m screw clamp terminals
Height
2.85 in (72.5 mm)
Width
1.77 in (45 mm)
Depth
3.15 in (79.9 mm)
Net Weight
0.40 lb(US) (0.18 kg)
Standards
EN/IEC 60947-4-1;EN/IEC 60947-5-1;UL 60947-4-1;UL 60947-5-1;CSA C22.2 No 60947-4-1;CSA C22.2 No 60947-5-1;GB/T 14048.4;GB/T 14048.5
Product Certifications
IECEE CB Scheme;UL;CSA;CCC
IP degree of protection
IP20 front face IEC 60529
ambient air temperature for operation
-13…158 °F (-25…70 °C) IEC 60255-8
Ambient Air Temperature for Storage
-67…176 °F (-55…80 °C)
operating altitude
6561.68 ft (2000 m) without derating
mechanical robustness
Vibrations 10...150 Hz6 Gn IEC 60068-2-6;Shocks 11 ms15 gn IEC 60068-2-7
dielectric strength
6 kV 50 Hz IEC 60255-5
Category
22348-LR9D ELECTRONIC OVERLOAD RELAY 0.1-110A
Discount Schedule
I12
GTIN
3606485420950
Returnability
Yes
Country of origin
CN
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
2.09 in (5.3 cm)
Package 1 Width
2.91 in (7.4 cm)
Package 1 Length
3.54 in (9.0 cm)
Package 1 Weight
7.79 oz (220.96 g)
Unit Type of Package 2
CAR
Number of Units in Package 2
30
Package 2 Height
5.91 in (15.0 cm)
Package 2 Width
11.81 in (30.0 cm)
Package 2 Length
15.75 in (40.0 cm)
Package 2 Weight
14.61 lb(US) (6.629 kg)
