LR9D08 | TeSys LRD, Electronic thermal overload relay, 3P, 0.6...8 A | Square D by Schneider Electric

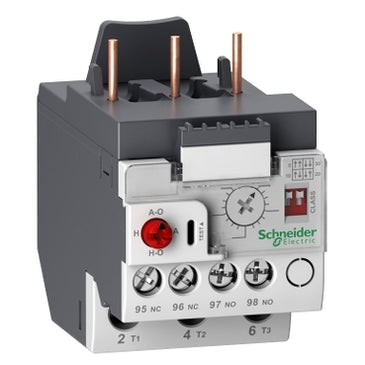

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LR9D08
Overview
Details for LR9D08
TeSys LRD, Electronic thermal overload relay, 3P, 0.6...8 A
LR9D08 is a TeSys LR9D electronic overload relay from Schneider Electric to be used with a TeSys D contactor. With a thermal range 1.6-8A, selectable tripping class 5-10-20-30 and phase unbalance protection, it protects motors 1.1 to 2.2kW@400V. LR9D08 is a TeSys LR9D electronic overload relay from Schneider Electric for direct mounting on TeSys D contactors. With a large thermal setting range 1.6-8A, a selectable tripping class 5-10-20-30 and phase unbalance detection, it protects motors 1.1 to 2.2kW@400V. It provides manual test & reset buttons, automatic reset, trip auxiliary contact and flag indicator. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach). Thermal overload protection, electronic type, with phase unbalance protection (differential), self powered (no external power supply needed). Direct mounting on the bottom terminals of a Tesys LC1D09-D38 to form a compact starter contactor. Light and compact, 45mm wide. Manual control with test & reset buttons, manual / automatic reset selector. High accuracy, temperature compensated to keep a precise tripping over the ambient temperature range. Wide protection adjustment range 1.6-8A and selectable tripping class 5-10-20 -30. Trip signaling with 1NO+1NC auxiliary contacts and trip flag indicator. 90% reduction in energy dissipation compared to a thermal overload relay. Can be completed with terminal blocks and separate mounting accessories (LAD7B).Specifications
- range
- TeSys
- product name
- TeSys LRD
- device short name
- LR9D
- Product or Component Type
- Electronic thermal overload relay
- relay application
- Motor protection
- Product Compatibility
- LC1D12;LC1D32;LC1D38;LC1D09;LC1D25;LC1D18
- thermal overload class
- Class 5…30
- thermal protection adjustment range
- 1.6…8 A
- Power Consumption in W
- 300 mW
- mounting support
- Under contactor;Plate;with specific accessories;Rail;with specific accessories
- [Ue] rated operational voltage
- 690 V power circuit;660 V signalling circuit
- [Ui] rated insulation voltage
- Power circuit 1000 V;Signalling circuit 690 V
- tripping threshold
- 1.25 In IEC 60947-4-1
- control type
- Red push-button stop and manual reset;White 2 microswitches adjustable trip class;Red knob automatic reset;White dial full-load current adjustment
- time range
- 1.5...4 min - automatic reset time
- [Ith] conventional free air thermal current
- 5 A signalling circuit
- associated fuse rating
- 5 A gG signalling circuit;5 A BS signalling circuit
- [Uimp] rated impulse withstand voltage
- 6 kV
- phase failure sensitivity
- Phase difference > 40% 3 s IEC 60947-4-1
- electromagnetic compatibility
- Surge withstand 2 kV common mode IEC 61000-4-5;Resistance to electrostatic discharge 8 kV IEC 61000-4-2;Immunity to radiated radio-electrical interference 10 V/m IEC 61000-4-3;Immunity to fast transients 2 kV IEC 61000-4-4
- connections - terminals
- Control circuit screw clamp terminals 1 0.00 in² (2.5 mm²) solid or flexible - without cable end;Power circuit screw clamp terminals 1 0.02 in² (16 mm²) solid or flexible - without cable end
- tightening torque
- Control circuit 0.8 N.m screw clamp terminals;Power circuit 3.1 N.m screw clamp terminals
- Height
- 2.85 in (72.5 mm)
- Width
- 1.77 in (45 mm)
- Depth
- 3.15 in (79.9 mm)
- Net Weight
- 0.40 lb(US) (0.18 kg)
- Standards
- EN/IEC 60947-4-1;EN/IEC 60947-5-1;UL 60947-4-1;UL 60947-5-1;CSA C22.2 No 60947-4-1;CSA C22.2 No 60947-5-1;GB/T 14048.4;GB/T 14048.5
- Product Certifications
- IECEE CB Scheme;UL;CSA;CCC
- IP degree of protection
- IP20 front face IEC 60529
- ambient air temperature for operation
- -13…158 °F (-25…70 °C) IEC 60255-8
- Ambient Air Temperature for Storage
- -67…176 °F (-55…80 °C)
- operating altitude
- 6561.68 ft (2000 m) without derating
- mechanical robustness
- Vibrations 10...150 Hz6 Gn IEC 60068-2-6;Shocks 11 ms15 gn IEC 60068-2-7
- dielectric strength
- 6 kV 50 Hz IEC 60255-5
- Category
- 22348-LR9D ELECTRONIC OVERLOAD RELAY 0.1-110A
- Discount Schedule
- I12
- GTIN
- 3606485420943
- Returnability
- Yes
- Country of origin
- CN
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 2.09 in (5.3 cm)
- Package 1 Width
- 2.91 in (7.4 cm)
- Package 1 Length
- 3.54 in (9.0 cm)
- Package 1 Weight
- 7.79 oz (220.96 g)
- Unit Type of Package 2
- CAR
- Number of Units in Package 2
- 30
- Package 2 Height
- 5.91 in (15.0 cm)
- Package 2 Width
- 11.81 in (30.0 cm)
- Package 2 Length
- 15.75 in (40.0 cm)
- Package 2 Weight
- 14.61 lb(US) (6.629 kg)
