LK4JU3N | Disconnect Switch, Non-Fusible, 100A, 3-Poles, 750V | Square D by Schneider Electric

Brand: Square DSKU: LK4JU3N

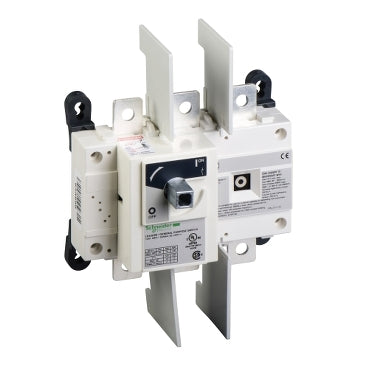

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LK4JU3N

Jump to: Overview & Specifications Reviews

Overview Details for LK4JU3N

Disconnect Switch, Non-Fusible, 100A, 3-Poles, 750V

Disconnect Switch

Rated Operational Current: 100A
Control Type: Rotary Handle
Poles Description: 3-Poles
System Voltage: 600V AC 50/60 Hz

TeSys LK4 non fusible disconnect switches are compact or standard sized switches that break and make power circuits, on and off loads, and provide safety isolation. This 3 pole non fusible disconnect switch has a 100 ampere rating. It can be used in applications up to 600 VAC or VDC. This nonfusible disconnect switch has a 30 HP rating at 240 VAC, a 75 HP rating at 480 VAC, a 100 HP rating at 600 VAC, a 10 HP rating at 125 VDC and a 15 HP rating at 240 VDC. This disconnect switch is operated with a rotary handle. This 100A disconnect switch has a 200kA short circuit current rating (SCCR) when used with Type J fuses. Each terminal has a lug that will accept one 6 AWG to 300 kcmil copper or aluminum wire. The disconnect switch is 6.30 inches tall, 7.09 inches wide and 3.72 inches deep. TeSys LK his motor circuit protector is UL Listed and CSA certified.

Specifications

range: TeSys
product name: TeSys LK
Product or Component Type: Disconnect Switch
disconnector device type: Non-fusible disconnect switch
suitability for isolation: Yes
poles description: 3P
network type: AC;DC
Network Frequency: 50/60 Hz
[Ie] rated operational current: 100 A400 V AC AC-22A IEC;100 A400 V AC AC-23A IEC;100 A690 V AC AC-22A IEC;100 A690 V AC AC-23A IEC;100 A CSA;100 A UL
[Ue] rated operational voltage: 600 V AC 50/60 Hz
[Ui] Rated Insulation Voltage: 750 V
Control Type: Rotary handle
type of operating handle: External frontal;External right side
Mounting Support: Plate
[Uimp] rated impulse withstand voltage: 8 kV IEC
rated power in W: 51 kW 400 V;63 kW 500 V;90 kW 690 V
rated power in hp: 30 hp 240 V 53 A AC;75 hp 480 V 64 A AC;100 hp 600 V 51 A AC;10 hp 125 V 77 A DC;15 hp 250 V 54 A DC
[Icw] rated short-time withstand current: 17.6 kA
mechanical durability: 8000 cycles
electrical durability: 6000 cycles
connections - terminals: lugs-ring terminals 1 0.01 in² (4 mm²)
Height: 6.30 in (160 mm)
Width: 7.09 in (180 mm)
Depth: 3.74 in (95 mm)
Standards: IEC 60947-3;UL98;CSA C22.2 No 4
Product Certifications: CE;UL;CSA
Category: 22640-IEC DISCONNECT-GS1;LK3
Discount Schedule: I11
GTIN: 3606480510441
Returnability: Yes
Country of origin: FR
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 6.69 in (17 cm)
Package 1 Width: 11.02 in (28 cm)
Package 1 Length: 11.02 in (28 cm)
Package 1 Weight: 5.02 lb(US) (2.278 kg)
Unit Type of Package 2: S04
Number of Units in Package 2: 4
Package 2 Height: 11.81 in (30 cm)
Package 2 Width: 15.75 in (40 cm)
Package 2 Length: 23.62 in (60 cm)
Package 2 Weight: 22.28 lb(US) (10.108 kg)
Unit Type of Package 3: P06
Number of Units in Package 3: 16
Package 3 Height: 29.53 in (75 cm)
Package 3 Width: 23.62 in (60 cm)
Package 3 Length: 31.50 in (80 cm)
Package 3 Weight: 108.98 lb(US) (49.432 kg)
Warranty: 18 months
