LE1D093A62OG70 | IEC Enclosed Starter, Full-Voltage, 9A, 120V AC, NEMA 1, Non-Reversing | Square D by Schneider Electric

Brand: Square DSKU: LE1D093A62OG70
Square D | LE1D093A62OG70

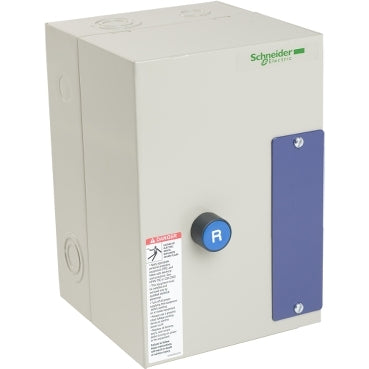

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LE1D093A62OG70
Jump to: Overview & Specifications Reviews

Overview Details for LE1D093A62OG70

IEC Enclosed Starter, Full-Voltage, 9A, 120V AC, NEMA 1, Non-Reversing

IEC Starter
  • Product Type: Enclosed Full-Voltage
  • Disconnector Type: Fusible Disconnect
  • Motor Starter Type: Non-Reversing
  • Line Rate Current: 9A
  • System Voltage: 120V AC 50/60 Hz
  • Degree of Protection: NEMA 1 steel TeSys LE1 enclosed IEC full voltage starters are available in Type 1 and Type 12/3R enclosures. The enclosed TeSys LE1 starters use TeSys D contactors and standard TeSys D accessories and all Insta-Kits control units and control power transformer kits. This enclosed IEC full voltage starter has a LC1D09G7 contactor. This enclosed IEC starter is without an line protection. Contactor has a 2HP at 208VAC, 2HP at 230VAC, 5HP at 460VAC and 7.5HP at 600VAC 3 phase ratings. Contactor has a 1/3HP at 120VAC and 1HP at 240VAC single phase ratings. Contactor has a 120VAC 50/60Hz coil. Contactor has one normally open and one normally closed auxiliary contact. Enclosed starter is not supplied with an overload relay or control transformer. Enclosure is a general purpose sheet steel that is rated NEMA Type 1. This TeSys LE1 IEC encosed starter is UL Listed, CSA certified and IEC certified.

    • Specifications

    Product or Component Type
    Full voltage starter
    Range of Product
    Instakits
    Starter Type
    Non reversing
    Control Circuit Voltage
    120 V AC 50/60 Hz
    Current Rating
    9 A
    Horsepower Rating
    0.3 hp 120 V AC;1 phase;1 hp 240 V AC;1 phase;2 hp 208 V AC;3 phase;2 hp 230 V AC;3 phase;5 hp 460 V AC;3 phase;7.5 hp 575 V AC;3 phase
    Maximum Voltage Rating
    600 V AC
    Auxiliary Contacts
    1 NO + 1 NC
    location of connection
    Line
    Product Certifications
    CSA;UL;IEC
    Enclosure Type
    NEMA 1 steel
    Category
    22313-CTRS;D-LINE;ENCL (METAL)
    Discount Schedule
    I11
    GTIN
    785901487029
    Returnability
    Yes
    Country of origin
    MX
    Unit Type of Package 1
    PCE
    Number of Units in Package 1
    1
    Package 1 Height
    9.60 in (24.384 cm)
    Package 1 Width
    10.50 in (26.67 cm)
    Package 1 Length
    14.60 in (37.084 cm)
    Package 1 Weight
    10.30 lb(US) (4.672 kg)
    Unit Type of Package 2
    PAL
    Number of Units in Package 2
    50
    Package 2 Height
    40.00 in (101.6 cm)
    Package 2 Width
    40.00 in (101.6 cm)
    Package 2 Length
    48.00 in (121.92 cm)
    Package 2 Weight
    515.00 lb(US) (233.6 kg)
    Warranty
    18 months
