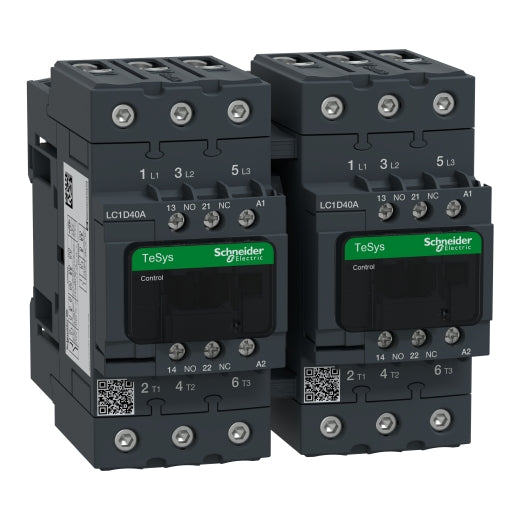

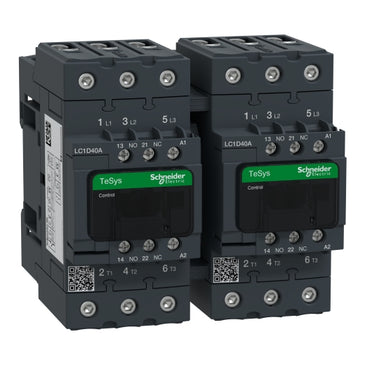

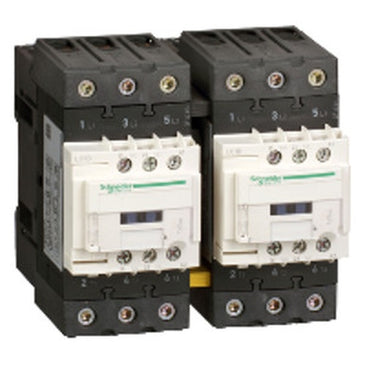

LC2D40AG7 | TeSys D Contactor, 3-Poles (3 NO), 40A, 120V AC Coil, Everlink Power Connection, Reversing | Square D by Schneider Electric
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LC2D40AG7
Overview
Details for LC2D40AG7
TeSys D Contactor, 3-Poles (3 NO), 40A, 120V AC Coil, Everlink Power Connection, Reversing
TeSys Deca reversing contactor, 3 poles (3NO), for motor control applications up to 40A/440V AC-3 (18.5kW@400V). It provides 120V 60Hz AC coils, 2NO+2NC built-in auxiliary contacts (NC mirror contacts), power connection by EverLink BTR screw connectors, control by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (119mm width), DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).- Range
- TeSys
TeSys Deca - Product name
- TeSys D
TeSys Deca - Product or component type
- Reversing contactor
- device short name
- LC2D
- contactor application
- Motor control
Resistive load - Utilisation category
- AC-3
AC-1
AC-3e - device presentation
- Preassembled with reversing power busbar
- Poles description
- 3P
- power pole contact composition
- 3 NO
- [Ue] rated operational voltage
- Power circuit: <= 690 V AC 25...400 Hz
Power circuit: <= 300 V DC - [Ie] rated operational current
- 40 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
60 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
40 A (at <60 °C) at <= 440 V AC AC-3e for power circuit - Motor power kW
- 11 kW at 220...230 V AC 50...60 Hz
18.5 kW at 380...400 V AC 50...60 Hz
22 kW at 415 V AC 50...60 Hz
22 kW at 440 V AC 50...60 Hz
22 kW at 500 V AC 50...60 Hz
30 kW at 660...690 V AC 50...60 Hz - motor power HP (UL / CSA)
- 5 hp at 230/240 V AC 60 Hz for 1 phase motors
10 hp at 230/240 V AC 60 Hz for 3 phases motors
30 hp at 575/600 V AC 60 Hz for 3 phases motors
10 hp at 200/208 V AC 60 Hz for 3 phases motors
3 hp at 115 V AC 60 Hz for 1 phase motors
30 hp at 460/480 V AC 60 Hz for 3 phases motors - Control circuit type
- AC at 60 Hz
- [Uc] control circuit voltage
- 120 V AC 60 Hz
- auxiliary contact composition
- 1 NO + 1 NC
- [Uimp] rated impulse withstand voltage
- 6 kV conforming to IEC 60947
- Overvoltage category
- III
- [Ith] conventional free air thermal current
- 10 A (at 60 °C) for signalling circuit
60 A (at 60 °C) for power circuit - Irms rated making capacity
- 140 A AC for signalling circuit conforming to IEC 60947-5-1
250 A DC for signalling circuit conforming to IEC 60947-5-1
800 A at 440 V for power circuit conforming to IEC 60947 - Rated breaking capacity
- 800 A at 440 V for power circuit conforming to IEC 60947
- [Icw] rated short-time withstand current
- 72 A 40 °C - 10 min for power circuit
165 A 40 °C - 1 min for power circuit
320 A 40 °C - 10 s for power circuit
720 A 40 °C - 1 s for power circuit
100 A - 1 s for signalling circuit
120 A - 500 ms for signalling circuit
140 A - 100 ms for signalling circuit - Associated fuse rating
- 10 A gG for signalling circuit conforming to IEC 60947-5-1
80 A gG at <= 690 V coordination type 1 for power circuit
80 A gG at <= 690 V coordination type 2 for power circuit - Average impedance
- 1.5 mOhm - Ith 60 A 50 Hz for power circuit
- [Ui] rated insulation voltage
- Power circuit: 690 V conforming to IEC 60947-4-1
Power circuit: 600 V CSA certified
Power circuit: 600 V UL certified
Signalling circuit: 690 V conforming to IEC 60947-1
Signalling circuit: 600 V CSA certified
Signalling circuit: 600 V UL certified - Electrical durability
- 1.5 Mcycles 40 A AC-3 at Ue <= 440 V
1.4 Mcycles 60 A AC-1 at Ue <= 440 V
1.5 Mcycles 40 A AC-3e at Ue <= 440 V - Power dissipation per pole
- 2.4 W AC-3
5.4 W AC-1
2.4 W AC-3e - Front cover
- With
- Interlocking type
- Mechanical
- Mounting support
- Plate
Rail - Standards
- CSA C22.2 No 14
EN 60947-4-1
EN 60947-5-1
IEC 60947-4-1
IEC 60947-5-1
UL 508
IEC 60335-1 - product certifications
- UL
CSA
RINA
GOST
CCC
DNV
LROS (Lloyds register of shipping)
GL
BV
UKCA - Connections - terminals
- Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end
Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable end
Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end
Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end
Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²solid
Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²solid
Power circuit: EverLink BTR screw connectors 1 cable(s) 1…35 mm²flexible without cable end
Power circuit: EverLink BTR screw connectors 2 cable(s) 1…25 mm²flexible without cable end
Power circuit: EverLink BTR screw connectors 1 cable(s) 1…35 mm²flexible with cable end
Power circuit: EverLink BTR screw connectors 2 cable(s) 1…25 mm²flexible with cable end
Power circuit: EverLink BTR screw connectors 1 cable(s) 1…35 mm²solid
Power circuit: EverLink BTR screw connectors 2 cable(s) 1…25 mm²solid - Tightening torque
- Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm
Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2
Power circuit: 8 N.m - on EverLink BTR screw connectors - cable 25…35 mm² hexagonal screw head 4 mm
Power circuit: 5 N.m - on EverLink BTR screw connectors - cable 1…25 mm² hexagonal screw head 4 mm
Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2
Power circuit: 2.5 N.m - on screw clamp terminals - with screwdriver pozidriv No 2 - Operating time
- 4...19 ms opening
12...26 ms closing - Safety reliability level
- B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 - Mechanical durability
- 6 Mcycles
- Maximum operating rate
- 3600 cyc/h 60 °C
- Coil technology
- Without built-in suppressor module
- Control circuit voltage limits
- 0.3...0.6 Uc (-40…70 °C):drop-out AC 60 Hz
0.85...1.1 Uc (-40…60 °C):operational AC 60 Hz
1...1.1 Uc (60…70 °C):operational AC 60 Hz - Inrush power in VA
- 140 VA 60 Hz cos phi 0.75 (at 20 °C)
- Hold-in power consumption in VA
- 13 VA 60 Hz cos phi 0.3 (at 20 °C)
- Heat dissipation
- 4…5 W at 60 Hz
- Auxiliary contacts type
- type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1
type mirror contact 1 NC conforming to IEC 60947-4-1 - Signalling circuit frequency
- 25...400 Hz
- Minimum switching current
- 5 mA for signalling circuit
- Minimum switching voltage
- 17 V for signalling circuit
- Non-overlap time
- 1.5 ms on de-energisation between NC and NO contact
1.5 ms on energisation between NC and NO contact - Insulation resistance
- > 10 MOhm for signalling circuit
- IP degree of protection
- IP20 front face conforming to IEC 60529
- Climatic withstand
- conforming to IACS E10
conforming to IEC 60947-1 Annex Q category D - Protective treatment
- TH conforming to IEC 60068-2-30
- Pollution degree
- 3
- Ambient air temperature for operation
- -40…60 °C
60…70 °C with derating - Ambient air temperature for storage
- -60…80 °C
- Operating altitude
- 0...3000 m
- Fire resistance
- 850 °C conforming to IEC 60695-2-1
- Flame retardance
- V1 conforming to UL 94
- Mechanical robustness
- Vibrations contactor open: 2 Gn, 5...300 Hz
Vibrations contactor closed: 4 Gn, 5...300 Hz
Shocks contactor open: 10 Gn for 11 ms
Shocks contactor closed: 15 Gn for 11 ms - Height
- 122 mm
- Width
- 119 mm
- Depth
- 120 mm
- Net weight
- 1.87 kg
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 14 cm
- Package 1 Width
- 16.2 cm
- Package 1 Length
- 19.3 cm
- Package 1 Weight
- 2.094 kg
- Unit Type of Package 2
- S02
- Number of Units in Package 2
- 4
- Package 2 Height
- 15 cm
- Package 2 Width
- 30 cm
- Package 2 Length
