LC1DT25F7 | TeSys D contactor - 4P(4 NO), AC-1, <= 440 V 25 A , 110 V AC 50/60 Hz coil | Square D by Schneider Electric

Square D | LC1DT25F7

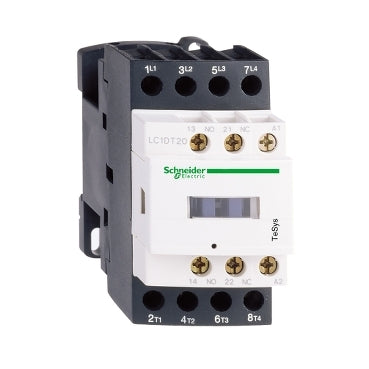

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LC1DT25F7

Documents and manuals

Square D LC1DT25F7 Documents

Overview

Details for LC1DT25F7

TeSys D contactor - 4P(4 NO), AC-1, <= 440 V 25 A , 110 V AC 50/60 Hz coil

TeSys D contactor
  • Utilisation category : AC-1
  • Poles description : 4P
  • power pole contact composition : 4 NO
  • Rated operational voltage : <= 300 V DC for power circuit, <= 690 V AC 25...400 Hz for power circuit
  • Rated operational current : 25 A (<= 60 °C) at <= 440 V AC AC-1 for power circuit
  • Control circuit voltage : 110 V AC 50/60 Hz
  • Auxiliary contact composition : 1 NO + 1 NC
TeSys D contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys D contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 4 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactor has four normally open power contacts. Power contacts have a 25A resistive load rating. Contactor is supplied with a 110 VAC 50/60 Hz coil. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 3.35 inches tall, 1.77 inches wide and 3.62 inches deep. It weighs 0.80 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. Contactor also meets the requirements of RoHS/REACh making it a Green Premium product.

Specifications

range
TeSys;TeSys Deca
Range of Product
TeSys D;TeSys Deca
Product or Component Type
Contactor
device short name
LC1D
contactor application
Resistive load
utilisation category
AC-1
poles description
4P
[Ue] rated operational voltage
Power circuit <= 690 V AC 25...400 Hz;Power circuit <= 300 V DC
[Ie] rated operational current
25 A 140 °F (60 °C)) <= 440 V AC AC-1 power circuit
[Uc] control circuit voltage
110 V AC 50/60 Hz
compatibility code
LC1D
pole contact composition
4 NO
contact compatibility
M6
protective cover
With
[Ith] conventional free air thermal current
10 A 140 °F (60 °C) signalling circuit;25 A 140 °F (60 °C) power circuit
Irms rated making capacity
140 A AC signalling circuit IEC 60947-5-1;250 A DC signalling circuit IEC 60947-5-1;250 A 440 V power circuit IEC 60947
rated breaking capacity
250 A 440 V power circuit IEC 60947
[Icw] rated short-time withstand current
30 A 104 °F (40 °C) - 10 min power circuit;61 A 104 °F (40 °C) - 1 min power circuit;105 A 104 °F (40 °C) - 10 s power circuit;210 A 104 °F (40 °C) - 1 s power circuit;100 A - 1 s signalling circuit;120 A - 500 ms signalling circuit;140 A - 100 ms signalling circuit
associated fuse rating
10 A gG signalling circuit IEC 60947-5-1;40 A gG <= 690 V type 1 power circuit;25 A gG <= 690 V type 2 power circuit
average impedance
2.5 mOhm - Ith 25 A 50 Hz power circuit
power dissipation per pole
1.56 W AC-1
[Ui] rated insulation voltage
Power circuit 600 V CSA;Power circuit 600 V UL;Signalling circuit 690 V IEC 60947-1;Signalling circuit 600 V CSA;Signalling circuit 600 V UL;Power circuit 690 V IEC 60947-4-1
overvoltage category
III
pollution degree
3
[Uimp] rated impulse withstand voltage
6 kV IEC 60947
safety reliability level
B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1;B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
mechanical durability
15 Mcycles
electrical durability
0.8 Mcycles 25 A AC-1 <= 440 V
control circuit type
AC 50/60 Hz
coil technology
Without built-in suppressor module
control circuit voltage limits
0.3...0.6 Uc -40…158 °F (-40…70 °C) drop-out AC 50/60 Hz;0.8...1.1 Uc -40…140 °F (-40…60 °C) operational AC 50 Hz;0.85...1.1 Uc -40…140 °F (-40…60 °C) operational AC 60 Hz;1...1.1 Uc 140…158 °F (60…70 °C) operational AC 50/60 Hz
inrush power in VA
70 VA 60 Hz 0.75 68 °F (20 °C));70 VA 50 Hz 0.75 68 °F (20 °C))
hold-in power consumption in VA
7.5 VA 60 Hz 0.3 68 °F (20 °C));7 VA 50 Hz 0.3 68 °F (20 °C))
heat dissipation
2…3 W 50/60 Hz
operating time
4...19 ms opening;12...22 ms closing
maximum operating rate
3600 cyc/h 140 °F (60 °C)
connections - terminals
Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²) flexible with cable end;Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²) flexible without cable end;Control circuit screw clamp terminals 2 0.00…0.01 in² (1…4 mm²) flexible without cable end;Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²) flexible with cable end;Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²) solid without cable end;Control circuit screw clamp terminals 2 0.00…0.01 in² (1…4 mm²) solid without cable end;Power circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²) flexible without cable end;Power circuit screw clamp terminals 2 0.00…0.01 in² (1…4 mm²) flexible without cable end;Power circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²) flexible with cable end;Power circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²) flexible with cable end;Power circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²) solid without cable end;Power circuit screw clamp terminals 2 0.00…0.01 in² (1…4 mm²) solid without cable end
tightening torque
Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals flat Ø 6 mm;Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals Philips No 2;Power circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals flat Ø 6 mm;Power circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals Philips No 2;Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals pozidriv No 2;Power circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals pozidriv No 2
auxiliary contact composition
1 NO + 1 NC
auxiliary contacts type
Mechanically linked 1 NO + 1 NC IEC 60947-5-1;Mirror contact 1 NC IEC 60947-4-1
signalling circuit frequency
25...400 Hz
minimum switching voltage
17 V signalling circuit
minimum switching current
5 mA signalling circuit
insulation resistance
> 10 MOhm signalling circuit
non-overlap time
1.5 ms on de-energisation between NC and NO contact;1.5 ms on energisation between NC and NO contact
Mounting Support
Rail;Plate
standards
CSA C22.2 No 14;EN 60947-4-1;EN 60947-5-1;IEC 60947-4-1;IEC 60947-5-1;UL 508;IEC 60335-1
Product Certifications
GL;DNV;UL;CCC;GOST;CSA;RINA;BV;LROS (Lloyds register of shipping)
IP degree of protection
IP20 front face IEC 60529
protective treatment
THIEC 60068-2-30
climatic withstand
IACS E10 exposure to damp heat;IEC 60947-1 Annex Q category D exposure to damp heat
permissible ambient air temperature around the device
-40…140 °F (-40…60 °C);140…158 °F (60…70 °C) with derating
operating altitude
0...9842.52 ft (0...3000 m)
fire resistance
1562 °F (850 °C) IEC 60695-2-1
flame retardance
V1 conforming to UL 94
mechanical robustness
Vibrations contactor open 2 Gn;5...300 Hz);Vibrations contactor closed 4 Gn;5...300 Hz);Shocks contactor closed 15 Gn for 11 ms);Shocks contactor open 10 Gn for 11 ms)
Height
3.35 in (85 mm)
Width
1.77 in (45 mm)
Depth
3.62 in (92 mm)
Net Weight
0.80 lb(US) (0.365 kg)
Category
22354-CTR;TESYS D;OPEN;9-38A AC
Discount Schedule
I12
GTIN
3389110577662
Returnability
Yes
Country of origin
ID
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
2.17 in (5.5 cm)
Package 1 Width
3.74 in (9.5 cm)
Package 1 Length
4.65 in (11.8 cm)
Package 1 Weight
13.72 oz (389.0 g)
Unit Type of Package 2
S02
Number of Units in Package 2
16
Package 2 Height
5.91 in (15.0 cm)
Package 2 Width
11.81 in (30.0 cm)
Package 2 Length
15.75 in (40.0 cm)
Package 2 Weight
15.00 lb(US) (6.802 kg)
Warranty
18 months
