LC1D95G7 | TeSys D Contactor, 3-Poles (3 NO), 125/95A, 120V AC Coil, Non-Reversing | Square D by Schneider Electric

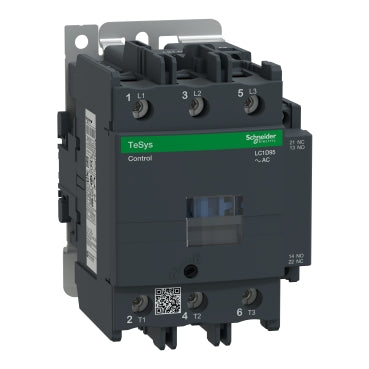

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LC1D95G7

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Square D LC1D95G7 Documents

Datasheet More Info

Overview

Details for LC1D95G7

TeSys D Contactor, 3-Poles (3 NO), 125/95A, 120V AC Coil, Non-Reversing

TeSys D Contactor

Number of Poles: 3-Poles

Pole Contact Composition: 3 NO

Rated Operational Current: 125 A (<= 60 deg C) at <= 440 V AC AC-1 for power circuit, 95 A (<= 60 deg C) at <= 440 V AC AC-3 for power circuit

Control Circuit Voltage: 120V AC 50/60 Hz

Non-Reversing TeSys D contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys D contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 95A inductive 3 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactors have both Horsepower and Kw motor rating for international acceptance. Contactor is rated for 25HP at 200 to 208VAC, 30HP at 240VAC, 60HP at 480VAC and 60HP at 600VAC three phase. Contactor is also rated for 7.5HP at 115VAC and 15HP at 240VAC single phase. Contactor is supplied with a 120 VAC 50/60 Hz coil. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 5.00 inches tall, 3.35 inches wide and 5.12 inches deep. It weighs 3.55 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. Contactor also meets the requirements of RoHS/REACh making it a Green Premium product.

Specifications

range: TeSys
Range of Product: TeSys D
Product or Component Type: Contactor
device short name: LC1D
contactor application: Resistive load;Motor control
utilisation category: AC-1;AC-4;AC-3;AC-3e
poles description: 3P
[Ue] rated operational voltage: Power circuit 1000 V AC 25...400 Hz
[Ie] rated operational current: 95 A 140 °F (60 °C)) <= 440 V AC-3 power circuit;125 A 140 °F (60 °C)) <= 690 V AC-1 power circuit;95 A 140 °F (60 °C)) <= 440 V AC-3e power circuit
[Uc] control circuit voltage: 120 V AC 50/60 Hz
motor power kW: 25 kW 220...230 V AC 50 Hz AC-3);45 kW 380...400 V AC 50 Hz AC-3);45 kW 415...440 V AC 50 Hz AC-3);55 kW 500 V AC 50 Hz AC-3);45 kW 660...690 V AC 50 Hz AC-3);45 kW 1000 V AC 50 Hz AC-3)
Maximum Horse Power Rating: 7.5 hp 120 V at AC 60 Hz for 1 phase;15 hp 230/240 V at AC 60 Hz for 1 phase;30 hp 200/208 V at AC 60 Hz for 3 phase;30 hp 230/240 V at AC 60 Hz for 3 phase;60 hp 460/480 V at AC 60 Hz for 3 phase;60 hp 575/600 V at AC 60 Hz for 3 phase
compatibility code: LC1D
pole contact composition: 3 NO
contact compatibility: M11
protective cover: With
[Ith] conventional free air thermal current: 10 A 140 °F (60 °C) signalling circuit;125 A 140 °F (60 °C) power circuit
Irms rated making capacity: 1100 A 440 V AC power circuit IEC 60947;140 A AC signalling circuit IEC 60947-5-1;250 A DC signalling circuit IEC 60947-5-1
rated breaking capacity: 1100 A 440 V power circuit IEC 60947
[Icw] rated short-time withstand current: 1100 A 104 °F (40 °C) - 1 s power circuit;800 A 104 °F (40 °C) - 10 s power circuit;400 A 104 °F (40 °C) - 1 min power circuit;135 A 104 °F (40 °C) - 10 min power circuit;140 A - 100 ms signalling circuit;120 A - 500 ms signalling circuit;100 A - 1 s signalling circuit
associated fuse rating: 10 A gG signalling circuit IEC 60947-5-1;200 A gG <= 690 V type 1 power circuit;160 A gG <= 690 V type 2 power circuit
average impedance: 0.8 mOhm - Ith 125 A 50 Hz power circuit
power dissipation per pole: 12.5 W AC-1;7.2 W AC-3;7.2 W AC-3e
[Ui] rated insulation voltage: Power circuit 1000 V IEC 60947-4-1;Power circuit 600 V CSA;Power circuit 600 V UL;Signalling circuit 690 V IEC 60947-1;Signalling circuit 600 V CSA;Signalling circuit 600 V UL
overvoltage category: III
pollution degree: 3
[Uimp] rated impulse withstand voltage: 8 kV IEC 60947
safety reliability level: B10d = 1.3 Mcycles contactor with nominal load EN/ISO 13849-1;B10d = 20 Mcycles contactor with mechanical load EN/ISO 13849-1
mechanical durability: 4 Mcycles
electrical durability: 1.2 Mcycles 95 A AC-3;1.3 Mcycles 125 A AC-1;1.2 Mcycles 95 A AC-3e
control circuit type: AC 50/60 Hz
coil technology: Without built-in suppressor module
control circuit voltage limits: 0.8...1.1 Uc -40…131 °F (-40…55 °C) operational AC 50 Hz;0.85...1.1 Uc -40…131 °F (-40…55 °C) operational AC 60 Hz;0.3...0.6 Uc -40…158 °F (-40…70 °C) drop-out AC 50/60 Hz;1...1.1 Uc 131…158 °F (55…70 °C) operational AC 50/60 Hz
inrush power in VA: 245 VA 60 Hz 0.75 68 °F (20 °C));245 VA 50 Hz 0.75 68 °F (20 °C))
hold-in power consumption in VA: 26 VA 60 Hz 0.3 68 °F (20 °C));26 VA 50 Hz 0.3 68 °F (20 °C))
maximum operating rate: 3600 cyc/h 140 °F (60 °C)
tightening torque: Control circuit 10.62 lbf.in (1.2 N.m) screw clamp terminals flat Ø 6 mm;Control circuit 10.62 lbf.in (1.2 N.m) screw clamp terminals Philips No 2;Power circuit 106.21 lbf.in (12 N.m) connector flat Ø 6 to Ø 8 mm;Power circuit 106.21 lbf.in (12 N.m) connector hexagonal 0.16 in (4 mm);Control circuit 10.62 lbf.in (1.2 N.m) screw clamp terminals pozidriv No 2
auxiliary contact composition: 1 NO + 1 NC
auxiliary contacts type: Mechanically linked 1 NO + 1 NC IEC 60947-5-1;Mirror contact 1 NC IEC 60947-4-1
signalling circuit frequency: 25...400 Hz
minimum switching voltage: 17 V signalling circuit
minimum switching current: 5 mA signalling circuit
insulation resistance: > 10 MOhm signalling circuit
non-overlap time: 1.5 ms on de-energisation between NC and NO contact;1.5 ms on energisation between NC and NO contact
Mounting Support: Plate;Rail
standards: EN/IEC 60947-1;EN/IEC 60947-4-1;EN/IEC 60947-5-1;UL 60947-4-1;UL 60947-5-1;CSA C22.2 No 60947-4-1;CSA C22.2 No 60947-5-1;GB/T 14048.4
Product Certifications: IECEE CB Scheme;UL;CSA;CCC;EAC;LROS (Lloyds register of shipping);RINA;BV;DNV-GL
IP degree of protection: IP20 front face IEC 60529
climatic withstand: IACS E10
operating altitude: 0...9842.52 ft (0...3000 m)
fire resistance: 1562 °F (850 °C) IEC 60695-2-1
flame retardance: V1 conforming to UL 94
Height: 5.00 in (127 mm)
Width: 3.35 in (85 mm)
Depth: 5.12 in (130 mm)
Net Weight: 3.55 lb(US) (1.61 kg)
Category: 22359-CTR;TESYS D;OPEN;80-150A AC&DC
Discount Schedule: I12
GTIN: 3389110451269
Returnability: Yes
Country of origin: CZ
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 6.10 in (15.5 cm)
Package 1 Width: 3.74 in (9.5 cm)
Package 1 Length: 5.31 in (13.5 cm)
Package 1 Weight: 3.53 lb(US) (1.6 kg)
Warranty: 18 months
