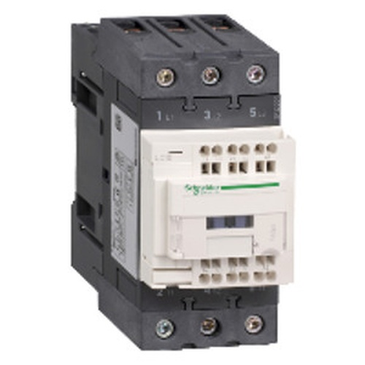

LC1D50ALE7 | TeSys D Contactor, 3-Poles (3 NO), 50A, 208V AC Coil, Non-Reversing | Square D by Schneider Electric
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LC1D50ALE7
Overview Details for LC1D50ALE7
TeSys D Contactor, 3-Poles (3 NO), 50A, 208V AC Coil, Non-Reversing
TeSys D ContactorSpecifications
- range
- TeSys
- Range of Product
- TeSys D
- Product or Component Type
- Contactor
- device short name
- LC1D
- contactor application
- Motor control;Resistive load
- utilisation category
- AC-4;AC-1;AC-3;AC-3e
- poles description
- 3P
- [Ue] rated operational voltage
- Power circuit <= 690 V AC 25...400 Hz;Power circuit <= 300 V DC
- [Ie] rated operational current
- 50 A 140 °F (60 °C)) <= 440 V AC AC-3 power circuit;80 A 140 °F (60 °C)) <= 440 V AC AC-1 power circuit;50 A 140 °F (60 °C)) <= 440 V AC AC-3e power circuit
- [Uc] control circuit voltage
- 208 V AC 60 Hz
- motor power kW
- 15 kW 220...230 V AC 50/60 Hz AC-3);22 kW 380...400 V AC 50/60 Hz AC-3);30 kW 500 V AC 50/60 Hz AC-3);33 kW 660...690 V AC 50/60 Hz AC-3);25 kW 415 V AC 50/60 Hz AC-3);30 kW 440 V AC 50/60 Hz AC-3);11 kW 400 V AC 50/60 Hz AC-4);15 kW 220...230 V AC 50/60 Hz AC-3e);22 kW 380...400 V AC 50/60 Hz AC-3e);30 kW 500 V AC 50/60 Hz AC-3e);33 kW 660...690 V AC 50/60 Hz AC-3e);25 kW 415 V AC 50/60 Hz AC-3e);30 kW 440 V AC 50/60 Hz AC-3e)
- Maximum Horse Power Rating
- 3 hp 115 V at AC 50/60 Hz for 1 phase;7.5 hp 230/240 V at AC 50/60 Hz for 1 phase;15 hp 200/208 V at AC 50/60 Hz for 3 phase;15 hp 230/240 V at AC 50/60 Hz for 3 phase;40 hp 460/480 V at AC 50/60 Hz for 3 phase;40 hp 575/600 V at AC 50/60 Hz for 3 phase
- compatibility code
- LC1D
- pole contact composition
- 3 NO
- contact compatibility
- M2
- protective cover
- With
- [Ith] conventional free air thermal current
- 10 A 140 °F (60 °C) signalling circuit;80 A 140 °F (60 °C) power circuit
- Irms rated making capacity
- 140 A AC signalling circuit IEC 60947-5-1;250 A DC signalling circuit IEC 60947-5-1;900 A 440 V power circuit IEC 60947
- rated breaking capacity
- 900 A 440 V power circuit IEC 60947
- [Icw] rated short-time withstand current
- 400 A 104 °F (40 °C) - 10 s power circuit;810 A 104 °F (40 °C) - 1 s power circuit;84 A 104 °F (40 °C) - 10 min power circuit;208 A 104 °F (40 °C) - 1 min power circuit;100 A - 1 s signalling circuit;120 A - 500 ms signalling circuit;140 A - 100 ms signalling circuit
- associated fuse rating
- 10 A gG signalling circuit IEC 60947-5-1;100 A gG <= 690 V type 1 power circuit;100 A gG <= 690 V type 2 power circuit
- average impedance
- 1.5 mOhm - Ith 80 A 50 Hz power circuit
- power dissipation per pole
- 3.7 W AC-3;9.6 W AC-1;3.7 W AC-3e
- [Ui] rated insulation voltage
- Power circuit 600 V CSA;Power circuit 600 V UL;Signalling circuit 690 V IEC 60947-1;Signalling circuit 600 V CSA;Signalling circuit 600 V UL;Power circuit 690 V IEC 60947-4-1
- overvoltage category
- III
- pollution degree
- 3
- [Uimp] rated impulse withstand voltage
- 6 kV IEC 60947
- safety reliability level
- B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1;B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
- mechanical durability
- 6 Mcycles
- electrical durability
- 1.45 Mcycles 50 A AC-3 <= 440 V;1.1 Mcycles 80 A AC-1 <= 440 V;1.45 Mcycles 50 A AC-3e <= 440 V
- control circuit type
- AC 60 Hz
- coil technology
- Without built-in suppressor module
- control circuit voltage limits
- 0.3...0.6 Uc -40…158 °F (-40…70 °C) drop-out AC 60 Hz;0.85...1.1 Uc -40…140 °F (-40…60 °C) operational AC 60 Hz;1...1.1 Uc 140…158 °F (60…70 °C) operational AC 60 Hz
- inrush power in VA
- 140 VA 60 Hz 0.75 68 °F (20 °C))
- hold-in power consumption in VA
- 13 VA 60 Hz 0.3 68 °F (20 °C))
- heat dissipation
- 4…5 W 60 Hz
- operating time
- 4...19 ms opening;12...26 ms closing
- maximum operating rate
- 3600 cyc/h 140 °F (60 °C)
- connections - terminals
- Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²) flexible with cable end;Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²) flexible without cable end;Control circuit screw clamp terminals 2 0.00…0.01 in² (1…4 mm²) flexible without cable end;Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²) flexible with cable end;Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²) solid without cable end;Control circuit screw clamp terminals 2 0.00…0.01 in² (1…4 mm²) solid without cable end;Power circuit EverLink BTR screw connectors 1 0.00…0.05 in² (1…35 mm²) flexible without cable end;Power circuit EverLink BTR screw connectors 2 0.00…0.04 in² (1…25 mm²) flexible without cable end;Power circuit EverLink BTR screw connectors 1 0.00…0.05 in² (1…35 mm²) flexible with cable end;Power circuit EverLink BTR screw connectors 2 0.00…0.04 in² (1…25 mm²) flexible with cable end;Power circuit EverLink BTR screw connectors 1 0.00…0.05 in² (1…35 mm²) solid without cable end;Power circuit EverLink BTR screw connectors 2 0.00…0.04 in² (1…25 mm²) solid without cable end
- tightening torque
- Control circuit 15.05 lbf.in (1.7 N.m) EverLink BTR screw connectors flat Ø 6 mm;Control circuit 15.05 lbf.in (1.7 N.m) EverLink BTR screw connectors Philips No 2;Power circuit 70.81 lbf.in (8 N.m) EverLink BTR screw connectors 0.04…0.05 in² (25…35 mm²) hexagonal 0.16 in (4 mm);Power circuit 44.25 lbf.in (5 N.m) EverLink BTR screw connectors 0.00…0.04 in² (1…25 mm²) hexagonal 0.16 in (4 mm);Control circuit 15.05 lbf.in (1.7 N.m) EverLink BTR screw connectors pozidriv No 2
- auxiliary contact composition
- 1 NO + 1 NC
- auxiliary contacts type
- Mechanically linked 1 NO + 1 NC IEC 60947-5-1;Mirror contact 1 NC IEC 60947-4-1
- signalling circuit frequency
- 25...400 Hz
- minimum switching voltage
- 17 V signalling circuit
- minimum switching current
- 5 mA signalling circuit
- insulation resistance
- > 10 MOhm signalling circuit
- non-overlap time
- 1.5 ms on de-energisation between NC and NO contact;1.5 ms on energisation between NC and NO contact
- Mounting Support
- Rail;Plate
- standards
- CSA C22.2 No 14;EN 60947-4-1;EN 60947-5-1;IEC 60947-4-1;IEC 60947-5-1;UL 508
- Product Certifications
- BV;GOST;RINA;UL;GL;CSA;LROS (Lloyds register of shipping);DNV;CCC
- IP degree of protection
- IP20 front face IEC 60529
- protective treatment
- THIEC 60068-2-30
- climatic withstand
- IACS E10 exposure to damp heat;IEC 60947-1 Annex Q category D exposure to damp heat
- permissible ambient air temperature around the device
- -40…140 °F (-40…60 °C);140…158 °F (60…70 °C) with derating
- operating altitude
- 0...9842.52 ft (0...3000 m)
- fire resistance
- 1562 °F (850 °C) IEC 60695-2-1
- flame retardance
- V1 conforming to UL 94
- mechanical robustness
- Vibrations contactor open 2 Gn;5...300 Hz);Vibrations contactor closed 4 Gn;5...300 Hz);Shocks contactor closed 15 Gn for 11 ms);Shocks contactor open 10 Gn for 11 ms)
- Height
- 4.80 in (122 mm)
- Width
- 2.17 in (55 mm)
- Depth
- 4.72 in (120 mm)
- Net Weight
- 1.88 lb(US) (0.855 kg)
- Category
- 22357-CTR;TESYS D;OPEN;40-65A AC
- Discount Schedule
- I12
- GTIN
- 3389119408684
- Returnability
- Yes
- Country of origin
- FR
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 2.44 in (6.2 cm)
- Package 1 Width
- 5.39 in (13.7 cm)
- Package 1 Length
- 5.98 in (15.2 cm)
- Package 1 Weight
- 33.62 oz (953.0 g)
- Unit Type of Package 2
- S02
- Number of Units in Package 2
- 10
- Package 2 Height
- 5.91 in (15.0 cm)
- Package 2 Width
- 11.81 in (30.0 cm)
- Package 2 Length
- 15.75 in (40.0 cm)
- Package 2 Weight
- 22.01 lb(US) (9.985 kg)
- Warranty
- 18 months
