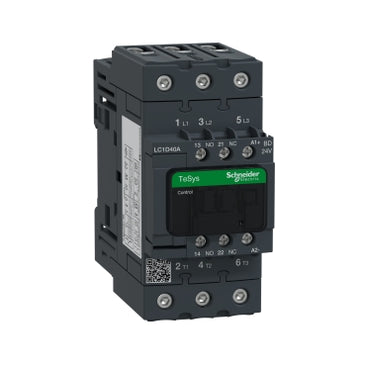

TeSys D Contactor, 3-Poles (3 NO), 40A, 24V DC Coil, Non-Reversing
TeSys D ContactorSpecifications
- range
- TeSys;TeSys Deca
- Range of Product
- TeSys D;TeSys Deca
- Product or Component Type
- Contactor
- device short name
- LC1D
- contactor application
- Resistive load;Motor control
- utilisation category
- AC-4;AC-1;AC-3;AC-3e
- poles description
- 3P
- [Ue] rated operational voltage
- Power circuit <= 690 V AC 25...400 Hz;Power circuit <= 300 V DC
- [Ie] rated operational current
- 60 A 140 °F (60 °C)) <= 440 V AC AC-1 power circuit;40 A 140 °F (60 °C)) <= 440 V AC AC-3 power circuit;40 A 140 °F (60 °C)) <= 440 V AC AC-3e power circuit
- [Uc] control circuit voltage
- 24 V DC
- motor power kW
- 18.5 kW 380...400 V AC 50/60 Hz AC-3);11 kW 220...230 V AC 50/60 Hz AC-3);22 kW 415...440 V AC 50/60 Hz AC-3);22 kW 500 V AC 50/60 Hz AC-3);30 kW 660...690 V AC 50/60 Hz AC-3);9 kW 400 V AC 50/60 Hz AC-4);18.5 kW 380...400 V AC 50/60 Hz AC-3e);11 kW 220...230 V AC 50/60 Hz AC-3e);22 kW 415...440 V AC 50/60 Hz AC-3e);22 kW 500 V AC 50/60 Hz AC-3e);30 kW 660...690 V AC 50/60 Hz AC-3e)
- Maximum Horse Power Rating
- 5 hp 230/240 V at AC 50/60 Hz for 1 phase;10 hp 230/240 V at AC 50/60 Hz for 3 phase;30 hp 575/600 V at AC 50/60 Hz for 3 phase;10 hp 200/208 V at AC 50/60 Hz for 3 phase;3 hp 115 V at AC 50/60 Hz for 1 phase;30 hp 460/480 V at AC 50/60 Hz for 3 phase
- compatibility code
- LC1D
- pole contact composition
- 3 NO
- contact compatibility
- M4
- protective cover
- With
- [Ith] conventional free air thermal current
- 10 A 140 °F (60 °C) signalling circuit;60 A 140 °F (60 °C) power circuit
- Irms rated making capacity
- 140 A AC signalling circuit IEC 60947-5-1;250 A DC signalling circuit IEC 60947-5-1;800 A 440 V power circuit IEC 60947
- rated breaking capacity
- 800 A 440 V power circuit IEC 60947
- [Icw] rated short-time withstand current
- 320 A 104 °F (40 °C) - 10 s power circuit;720 A 104 °F (40 °C) - 1 s power circuit;72 A 104 °F (40 °C) - 10 min power circuit;165 A 104 °F (40 °C) - 1 min power circuit;100 A - 1 s signalling circuit;120 A - 500 ms signalling circuit;140 A - 100 ms signalling circuit
- associated fuse rating
- 10 A gG signalling circuit IEC 60947-5-1;80 A gG <= 690 V type 1 power circuit;80 A gG <= 690 V type 2 power circuit
- average impedance
- 1.5 mOhm - Ith 60 A 50 Hz power circuit
- power dissipation per pole
- 2.4 W AC-3;5.4 W AC-1;2.4 W AC-3e
- [Ui] rated insulation voltage
- Power circuit 600 V CSA;Power circuit 600 V UL;Signalling circuit 690 V IEC 60947-1;Signalling circuit 600 V CSA;Signalling circuit 600 V UL;Power circuit 690 V IEC 60947-4-1
- overvoltage category
- III
- pollution degree
- 3
- [Uimp] rated impulse withstand voltage
- 6 kV IEC 60947
- safety reliability level
- B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1;B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
- mechanical durability
- 10 Mcycles
- electrical durability
- 0.7 Mcycles 60 A AC-1 <= 440 V;1.5 Mcycles 40 A AC-3 <= 440 V;1.5 Mcycles 40 A AC-3e <= 440 V
- control circuit type
- DC standard
- coil technology
- Built-in bidirectional peak limiting diode suppressor
- control circuit voltage limits
- 0.1...0.3 Uc -40…158 °F (-40…70 °C) drop-out DC;0.75...1.25 Uc -40…140 °F (-40…60 °C) operational DC;1...1.25 Uc 140…158 °F (60…70 °C) operational DC
- inrush power in W
- 19 W 68 °F (20 °C))
- hold-in power consumption in W
- 7.4 W 68 °F (20 °C)
- operating time
- 42.5...57.5 ms closing;16...24 ms opening
- time constant
- 34 ms
- maximum operating rate
- 3600 cyc/h 140 °F (60 °C)
- connections - terminals
- Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²) flexible with cable end;Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²) flexible without cable end;Control circuit screw clamp terminals 2 0.00…0.01 in² (1…4 mm²) flexible without cable end;Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²) flexible with cable end;Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²) solid without cable end;Control circuit screw clamp terminals 2 0.00…0.01 in² (1…4 mm²) solid without cable end;Power circuit screw connection 1 0.00…0.05 in² (1…35 mm²) flexible without cable end;Power circuit screw connection 2 0.00…0.04 in² (1…25 mm²) flexible without cable end;Power circuit screw connection 1 0.00…0.05 in² (1…35 mm²) flexible with cable end;Power circuit screw connection 2 0.00…0.04 in² (1…25 mm²) flexible with cable end;Power circuit screw connection 1 0.00…0.05 in² (1…35 mm²) solid without cable end;Power circuit screw connection 2 0.00…0.04 in² (1…25 mm²) solid without cable end
- tightening torque
- Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals flat Ø 6 mm;Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals Philips No 2;Power circuit 70.81 lbf.in (8 N.m) EverLink BTR screw connectors 0.04…0.05 in² (25…35 mm²) hexagonal 0.16 in (4 mm);Power circuit 44.25 lbf.in (5 N.m) EverLink BTR screw connectors 0.00…0.04 in² (1…25 mm²) hexagonal 0.16 in (4 mm);Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals pozidriv No 2;Power circuit 22.13 lbf.in (2.5 N.m) screw clamp terminals pozidriv No 2
- auxiliary contact composition
- 1 NO + 1 NC
- auxiliary contacts type
- Mechanically linked 1 NO + 1 NC IEC 60947-5-1;Mirror contact 1 NC IEC 60947-4-1
- signalling circuit frequency
- 25...400 Hz
- minimum switching voltage
- 17 V signalling circuit
- minimum switching current
- 5 mA signalling circuit
- insulation resistance
- > 10 MOhm signalling circuit
- non-overlap time
- 1.5 ms on de-energisation between NC and NO contact;1.5 ms on energisation between NC and NO contact
- Mounting Support
- Rail;Plate
- standards
- CSA C22.2 No 14;EN 60947-4-1;EN 60947-5-1;IEC 60947-4-1;IEC 60947-5-1;UL 508;IEC 60335-1
- Product Certifications
- CCC;CSA;GOST;UL
- IP degree of protection
- IP20 front face IEC 60529
- protective treatment
- THIEC 60068-2-30
- climatic withstand
- IACS E10 exposure to damp heat;IEC 60947-1 Annex Q category D exposure to damp heat
- permissible ambient air temperature around the device
- -40…140 °F (-40…60 °C);140…158 °F (60…70 °C) with derating
- operating altitude
- 0...9842.52 ft (0...3000 m)
- fire resistance
- 1562 °F (850 °C) IEC 60695-2-1
- flame retardance
- V1 conforming to UL 94
- mechanical robustness
- Vibrations contactor open 2 Gn;5...300 Hz);Vibrations contactor closed 4 Gn;5...300 Hz);Shocks contactor closed 15 Gn for 11 ms);Shocks contactor open 10 Gn for 11 ms)
- Height
- 4.80 in (122 mm)
- Width
- 2.17 in (55 mm)
- Depth
- 4.72 in (120 mm)
- Net Weight
- 2.04 lb(US) (0.925 kg)
- Category
- 22358-CTR;TESYS D;OPEN;40-65A DC
- Discount Schedule
- I12
- GTIN
- 3389119408486
- Returnability
- Yes
- Country of origin
- FR
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 2.44 in (6.2 cm)
- Package 1 Width
- 5.39 in (13.7 cm)
- Package 1 Length
- 5.98 in (15.2 cm)
- Package 1 Weight
- 34.89 oz (989 g)
- Unit Type of Package 2
- S02
- Number of Units in Package 2
- 10
- Package 2 Height
- 5.91 in (15 cm)
- Package 2 Width
- 11.81 in (30 cm)
- Package 2 Length
- 15.75 in (40 cm)
- Package 2 Weight
- 22.66 lb(US) (10.278 kg)
- Unit Type of Package 3
- P06
- Number of Units in Package 3
- 160
- Package 3 Height
- 29.53 in (75 cm)
- Package 3 Width
- 23.62 in (60 cm)
- Package 3 Length
- 31.50 in (80 cm)
- Package 3 Weight
- 392.11 lb(US) (177.86 kg)
- Warranty
- 18 months
