LC1D09T7 | TeSys D Contactor, 3-Poles (3 NO), 9A, 480V AC Coil, Non-Reversing | Square D by Schneider Electric

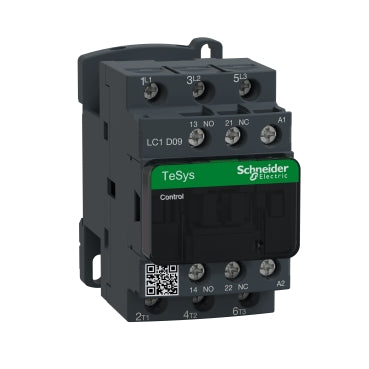

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LC1D09T7
Overview
Details for LC1D09T7
TeSys D Contactor, 3-Poles (3 NO), 9A, 480V AC Coil, Non-Reversing
TeSys D ContactorSpecifications
- Range of Product
- TeSys Deca
- Product or Component Type
- Contactor
- device short name
- LC1D
- contactor application
- Resistive load;Motor control
- utilisation category
- AC-4;AC-3;AC-1;AC-3e
- poles description
- 3P
- [Ue] rated operational voltage
- Power circuit <= 690 V AC 25...400 Hz;Power circuit <= 300 V DC
- [Ie] rated operational current
- 9 A 140 °F (60 °C)) <= 440 V AC AC-3 power circuit;25 A 140 °F (60 °C)) <= 440 V AC AC-1 power circuit;9 A 140 °F (60 °C)) <= 440 V AC AC-3e power circuit
- [Uc] control circuit voltage
- 480 V AC 50/60 Hz
- motor power kW
- 2.2 kW 220...230 V AC 50/60 Hz AC-3);4 kW 380...400 V AC 50/60 Hz AC-3);4 kW 415...440 V AC 50/60 Hz AC-3);5.5 kW 500 V AC 50/60 Hz AC-3);5.5 kW 660...690 V AC 50/60 Hz AC-3);2.2 kW 400 V AC 50/60 Hz AC-4);2.2 kW 220...230 V AC 50/60 Hz AC-3e);4 kW 380...400 V AC 50/60 Hz AC-3e);4 kW 415...440 V AC 50/60 Hz AC-3e);5.5 kW 500 V AC 50/60 Hz AC-3e);5.5 kW 660...690 V AC 50/60 Hz AC-3e)
- Maximum Horse Power Rating
- 1 hp 230/240 V at AC 50/60 Hz for 1 phase;2 hp 200/208 V at AC 50/60 Hz for 3 phase;2 hp 230/240 V at AC 50/60 Hz for 3 phase;5 hp 460/480 V at AC 50/60 Hz for 3 phase;7.5 hp 575/600 V at AC 50/60 Hz for 3 phase;0.33 hp 115 V at AC 50/60 Hz for 1 phase
- compatibility code
- LC1D
- pole contact composition
- 3 NO
- contact compatibility
- M2
- protective cover
- With
- [Ith] conventional free air thermal current
- 25 A 140 °F (60 °C) power circuit;10 A 140 °F (60 °C) signalling circuit
- Irms rated making capacity
- 250 A 440 V power circuit IEC 60947;140 A AC signalling circuit IEC 60947-5-1;250 A DC signalling circuit IEC 60947-5-1
- rated breaking capacity
- 250 A 440 V power circuit IEC 60947
- [Icw] rated short-time withstand current
- 105 A 104 °F (40 °C) - 10 s power circuit;210 A 104 °F (40 °C) - 1 s power circuit;30 A 104 °F (40 °C) - 10 min power circuit;61 A 104 °F (40 °C) - 1 min power circuit;100 A - 1 s signalling circuit;120 A - 500 ms signalling circuit;140 A - 100 ms signalling circuit
- associated fuse rating
- 10 A gG signalling circuit IEC 60947-5-1;25 A gG <= 690 V type 1 power circuit;20 A gG <= 690 V type 2 power circuit
- average impedance
- 2.5 mOhm - Ith 25 A 50 Hz power circuit
- power dissipation per pole
- 1.56 W AC-1;0.2 W AC-3;0.2 W AC-3e
- [Ui] rated insulation voltage
- Power circuit 690 V IEC 60947-4-1;Power circuit 600 V CSA;Power circuit 600 V UL;Signalling circuit 690 V IEC 60947-1;Signalling circuit 600 V CSA;Signalling circuit 600 V UL
- overvoltage category
- III
- pollution degree
- 3
- [Uimp] rated impulse withstand voltage
- 6 kV IEC 60947
- safety reliability level
- B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1;B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
- mechanical durability
- 15 Mcycles
- electrical durability
- 0.6 Mcycles 25 A AC-1 <= 440 V;2 Mcycles 9 A AC-3 <= 440 V;2 Mcycles 9 A AC-3e <= 440 V
- control circuit type
- AC 50/60 Hz
- coil technology
- Without built-in suppressor module
- control circuit voltage limits
- 0.3...0.6 Uc -40…158 °F (-40…70 °C) drop-out AC 50/60 Hz;0.8...1.1 Uc -40…140 °F (-40…60 °C) operational AC 50 Hz;0.85...1.1 Uc -40…140 °F (-40…60 °C) operational AC 60 Hz;1...1.1 Uc 140…158 °F (60…70 °C) operational AC 50/60 Hz
- inrush power in VA
- 70 VA 60 Hz 0.75 68 °F (20 °C));70 VA 50 Hz 0.75 68 °F (20 °C))
- hold-in power consumption in VA
- 7.5 VA 60 Hz 0.3 68 °F (20 °C));7 VA 50 Hz 0.3 68 °F (20 °C))
- heat dissipation
- 2…3 W 50/60 Hz
- operating time
- 12...22 ms closing;4...19 ms opening
- maximum operating rate
- 3600 cyc/h 140 °F (60 °C)
- connections - terminals
- Power circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²) flexible without cable end;Power circuit screw clamp terminals 2 0.00…0.01 in² (1…4 mm²) flexible without cable end;Power circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²) flexible with cable end;Power circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²) flexible with cable end;Power circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²) solid without cable end;Power circuit screw clamp terminals 2 0.00…0.01 in² (1…4 mm²) solid without cable end;Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²) flexible without cable end;Control circuit screw clamp terminals 2 0.00…0.01 in² (1…4 mm²) flexible without cable end;Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²) flexible with cable end;Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²) flexible with cable end;Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²) solid without cable end;Control circuit screw clamp terminals 2 0.00…0.01 in² (1…4 mm²) solid without cable end
- tightening torque
- Power circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals flat Ø 6 mm;Power circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals Philips No 2;Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals flat Ø 6 mm;Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals Philips No 2;Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals pozidriv No 2;Power circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals pozidriv No 2
- auxiliary contact composition
- 1 NO + 1 NC
- auxiliary contacts type
- Mechanically linked 1 NO + 1 NC IEC 60947-5-1;Mirror contact 1 NC IEC 60947-4-1
- signalling circuit frequency
- 25...400 Hz
- minimum switching voltage
- 17 V signalling circuit
- minimum switching current
- 5 mA signalling circuit
- insulation resistance
- > 10 MOhm signalling circuit
- non-overlap time
- 1.5 ms on de-energisation between NC and NO contact;1.5 ms on energisation between NC and NO contact
- Mounting Support
- Rail;Plate
- standards
- CSA C22.2 No 14;EN 60947-4-1;EN 60947-5-1;IEC 60947-4-1;IEC 60947-5-1;UL 508;IEC 60335-1
- Product Certifications
- CSA;BV;GL;CCC;UL;GOST;LROS (Lloyds register of shipping);RINA;DNV;UKCA
- IP degree of protection
- IP20 front face IEC 60529
- protective treatment
- THIEC 60068-2-30
- climatic withstand
- IACS E10 exposure to damp heat;IEC 60947-1 Annex Q category D exposure to damp heat
- permissible ambient air temperature around the device
- -40…140 °F (-40…60 °C);140…158 °F (60…70 °C) with derating
- operating altitude
- 0...9842.52 ft (0...3000 m)
- fire resistance
- 1562 °F (850 °C) IEC 60695-2-1
- flame retardance
- V1 conforming to UL 94
- mechanical robustness
- Vibrations contactor open 2 Gn;5...300 Hz);Vibrations contactor closed 4 Gn;5...300 Hz);Shocks contactor open 10 Gn for 11 ms);Shocks contactor closed 15 Gn for 11 ms)
- Height
- 3.03 in (77 mm)
- Width
- 1.77 in (45 mm)
- Depth
- 3.39 in (86 mm)
- Net Weight
- 0.71 lb(US) (0.32 kg)
- Category
- 22354-CTR;TESYS D;OPEN;9-38A AC
- Discount Schedule
- I12
- GTIN
- 3389110348811
- Returnability
- Yes
- Country of origin
- ID
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 4.41 in (11.2 cm)
- Package 1 Width
- 3.58 in (9.1 cm)
- Package 1 Length
- 1.93 in (4.9 cm)
- Package 1 Weight
- 12.45 oz (353.0 g)
- Unit Type of Package 2
- S02
- Number of Units in Package 2
- 20
- Package 2 Height
- 5.91 in (15.0 cm)
- Package 2 Width
- 11.81 in (30.0 cm)
- Package 2 Length
- 15.75 in (40.0 cm)
- Package 2 Weight
- 16.57 lb(US) (7.515 kg)
- Unit Type of Package 3
- P06
- Number of Units in Package 3
- 320
- Package 3 Height
- 30.31 in (77.0 cm)
- Package 3 Width
- 31.50 in (80.0 cm)
- Package 3 Length
- 23.62 in (60.0 cm)
- Package 3 Weight
- 283.82 lb(US) (128.74 kg)
- Warranty
- 18 months
