LA9F702 | TeSys F - terminal shroud for contactor or relay 3P | Square D

Brand: Square DSKU: LA9F702

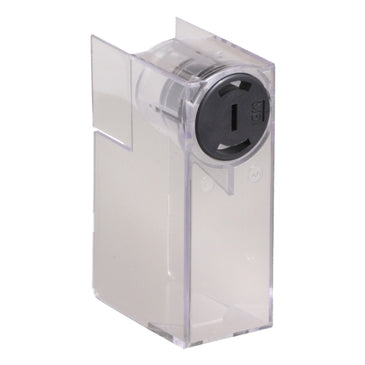

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LA9F702

Jump to: Overview & Specifications Reviews

Overview Details for LA9F702

TeSys F - terminal shroud for contactor or relay 3P

TeSys F power terminal protection shrouds, for 3-pole contactors LC1 F150, F185 and CR1 F150, F185, and thermal overload relays LR9 F63, F67, F69, F*63, F*67, F*69. Set of 6 units. The shrouds protect against direct contact on terminals by providing a front face IP20 protection. One shroud per power terminal, to be attached to the connection screw of the terminal. Green Premium compliant (RoHS/REACh).

Specifications

Range: TeSys
device short name: LA9F
Product or component type: Terminal shroud
accessory / separate part category: Protection accessory
Range compatibility: TeSys LR9F electronic thermal overload relay
TeSys LC1F contactor
TeSys LC2F reversing contactor
TeSys CR1F magnetic latching contactor
Altistart ATS22 soft starter
Altistart ATS48 soft starter
Product compatibility: LR9F5363, F5367, F5369
LC1F150, F185
ATS22 C11, C14, C17
LC2F150, F185
LR9F5563, F5567, F5569
CR1F150, F185
ATS48 C14, C17
LR9F63, F67, F69
Quantity per set: Set of 6
Poles description: 1P
Mounting location: On power terminal
Net weight: 0.25 kg
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 6.500 cm
Package 1 Width: 12.000 cm
Package 1 Length: 18.500 cm
Package 1 Weight: 203.000 g
Unit Type of Package 2: S03
Number of Units in Package 2: 16
Package 2 Height: 30.000 cm
Package 2 Width: 30.000 cm
Package 2 Length: 40.000 cm
Package 2 Weight: 3.623 kg
Unit Type of Package 3: P06
Number of Units in Package 3: 128
Package 3 Height: 75.000 cm
Package 3 Width: 60.000 cm
Package 3 Length: 80.000 cm
Package 3 Weight: 40.188 kg
Warranty: 18 months
