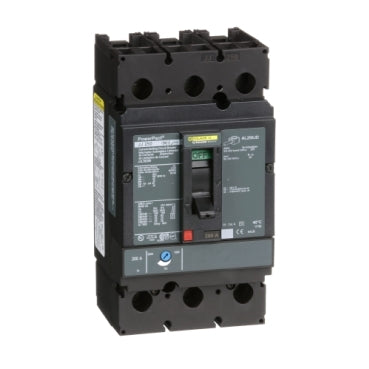

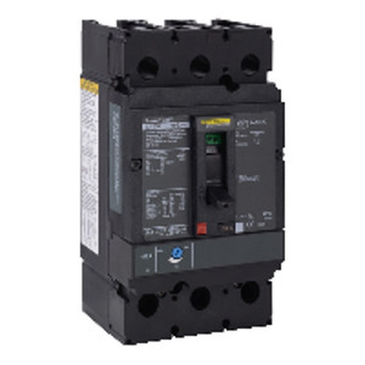

JJL36200 | I-Line PowerPact Molded Case Circuit Breaker: 200A, 600 Volt AC, 250 Volt DC, 3-Pole, Unit Mount | Square D by Schneider Electric

I-Line PowerPact Molded Case Circuit Breaker: 200A, 600 Volt AC, 250 Volt DC, 3-Pole, Unit Mount

I-Line PowerPact Molded Case Circuit Breaker:

• Line Rated Current: 200A
• System Voltage: 600 Volt AC, 250 Volt DC
• Number of Poles: 3-Poles
• Mounting Mode: Unit Mount

PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 25kA at 600VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT J, 200A, 3 pole, circuit breaker has a breaking capacity of 25kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
