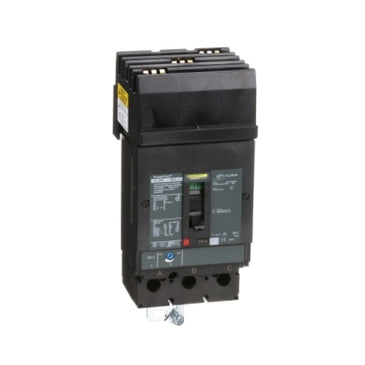

MOLDED CASE CIRCUIT BREAKER 600V 250A
PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 25kA at 600VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT J I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT J, 250A, 3 pole, circuit breaker has a breaking capacity of 25kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.Specifications
- range
- PowerPact
- product name
- PowerPact J
- Product or Component Type
- Circuit breaker
- Device Application
- Distribution
- Line Rated Current
- 250 A
- Number of Poles
- 3P
- Control Type
- Toggle
- breaking capacity code
- J
- breaking capacity
- 100 kA 240 V AC 50/60 Hz UL 489;65 kA 480 V AC 50/60 Hz UL 489;25 kA 600 V AC 50/60 Hz UL 489;20 kA 250 V DC UL 489
- [Ue] rated operational voltage
- 600 V AC 50/60 Hz IEC 60947-3
- Network Frequency
- 50/60 Hz
- [Ics] rated service breaking capacity
- 65 kA 220/240 V AC 50/60 Hz IEC 60947-2;35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2;18 kA 500/525 V AC 50/60 Hz IEC 60947-2;20 kA 250 V DC IEC 60947-2;20 kA 500 V DC IEC 60947-2
- [Uimp] rated impulse withstand voltage
- 8 kV IEC 60947-2
- trip unit technology
- Thermal-magnetic
- magnetic tripping current
- 2500 A
- magnetic hold current
- 1250 A
- continuous current rating
- 80 %
- [Ui] rated insulation voltage
- 750 V IEC 60947-2
- Protection Type
- Overload protection;Short-circuit protection
- suitability for isolation
- Yes IEC 60947-2
- utilisation category
- Category A
- AWG gauge
- AWG 3/0...350 kcmil aluminium/copper terminals
- local signalling
- Switched off (OFF) 1 trip indicator green)
- mounting mode
- I-Line bracket)
- Mounting Support
- Bracket
- electrical connection
- I-Line connection line;Lugs load
- terminal identifier
- AL250JD
- long time pick-up adjustment range
- 0.25...1 x In
- Mounting Height
- 4.5 in (114.30 mm)
- tightening torque
- 221.27 lbf.in (25 N.m) 0.15…0.29 in² (95…185 mm²) (AWG 3/0...350 kcmil)
- number of slots
- 2 auxiliary switch OF plug-in);1 alarm switch SD plug-in);1 overcurrent trip switch SDE plug-in);1 voltage release MN or MX plug-in)
- Power wire stripping length
- 0.98 in (25 mm)
- Height
- 7.52 in (191 mm)
- Width
- 4.09 in (104 mm)
- Depth
- 3.39 in (86 mm)
- Net Weight
- 5.29 lb(US) (2.4 kg)
- phase connection
- ABC
- communication interface
- Modbus;Ethernet
- circuit breaker application
- HACR rated
- quality labels
- CE
- Standards
- UL;CSA;NEMA;NOM-003-SCFI-2000;IEC 60947-2
- product certifications
- UL;CSA;NOM
- IP degree of protection
- Front cover IP40
- pollution degree
- 3 IEC 60947-1
- Ambient air temperature for operation
- 28…158 °F (-2…70 °C)
- Ambient Air Temperature for Storage
- -58…185 °F (-50…85 °C)
- operating altitude
- < 6561.68 ft (2000 m) without derating;5000 m with derating
- Category
- 01117-HG;HJ;JG;JJ I-LINE BREAKER/SWITCH
- Discount Schedule
- DE2
- GTIN
- 785901689881
- Returnability
- Yes
- Country of origin
- MX
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 6.20 in (15.748 cm)
- Package 1 Width
- 8.50 in (21.59 cm)
- Package 1 Length
- 14.80 in (37.592 cm)
- Package 1 Weight
- 6.75 lb(US) (3.062 kg)
- Warranty
- 18 months
