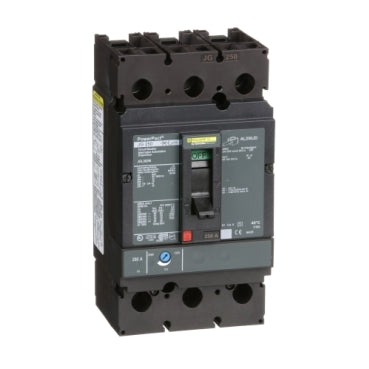

JGL36250 | MOLDED CASE CIRCUIT BREAKER 600V 250A | Square D by Schneider Electric

Brand: Square DSKU: JGL36250

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to JGL36250

Jump to: Overview & Specifications Reviews

Overview Details for JGL36250

MOLDED CASE CIRCUIT BREAKER 600V 250A

PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 18kA at 600VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT J, 250A, 3 pole, circuit breaker has a breaking capacity of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Specifications

range: PowerPact
product name: PowerPact J
Device Application: Distribution
Line Rated Current: 250 A
Number of Poles: 3P
Control Type: Toggle
breaking capacity code: G
breaking capacity: 65 kA 240 V AC 50/60 Hz UL 489;35 kA 480 V AC 50/60 Hz UL 489;18 kA 600 V AC 50/60 Hz UL 489;20 kA 250 V DC UL 489;20 kA 500 V DC UL 489
[Ue] rated operational voltage: 600 V AC 50/60 Hz IEC 60947-3
Network Frequency: 50/60 Hz
[Ics] rated service breaking capacity: 65 kA 220/240 V AC 50/60 Hz IEC 60947-2;35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2;18 kA 500/525 V AC 50/60 Hz IEC 60947-2;20 kA 250 V DC IEC 60947-2;20 kA 500 V DC IEC 60947-2
[Uimp] rated impulse withstand voltage: 8 kV IEC 60947-2
trip unit technology: Thermal-magnetic
magnetic tripping current: 2500 A
magnetic hold current: 1250 A
continuous current rating: 80 %
[Ui] rated insulation voltage: 750 V IEC 60947-2
Protection Type: Overload protection;Short-circuit protection
suitability for isolation: Yes IEC 60947-2
utilisation category: Category A
AWG gauge: AWG 3/0...350 kcmil aluminium/copper terminals
local signalling: Switched off (OFF) 1 trip indicator green)
mounting mode: Unit mount lug)
Mounting Support: Lug
electrical connection: Lugs line;Lugs load
terminal identifier: AL250JD
long time pick-up adjustment range: 0.25...1 x In
tightening torque: 221.27 lbf.in (25 N.m) 0.15…0.29 in² (95…185 mm²) (AWG 3/0...350 kcmil)
number of slots: 2 auxiliary switch OF plug-in);1 alarm switch SD plug-in);1 overcurrent trip switch SDE plug-in);1 voltage release MN or MX plug-in)
Power wire stripping length: 0.98 in (25 mm)
Height: 7.52 in (191 mm)
Width: 4.09 in (104 mm)
Depth: 3.39 in (86 mm)
Net Weight: 5.29 lb(US) (2.4 kg)
communication interface: Modbus;Ethernet
quality labels: CE
Standards: UL;CSA;NEMA;NOM-003-SCFI-2000;IEC 60947-2
product certifications: UL;CSA;NOM
IP degree of protection: Front cover IP40
pollution degree: 3 IEC 60947-1
Ambient air temperature for operation: 28…158 °F (-2…70 °C)
Ambient Air Temperature for Storage: -58…185 °F (-50…85 °C)
operating altitude: < 6561.68 ft (2000 m) without derating;5000 m with derating
Category: 01115-HG;HJ;JG;JJ UNIT MT BREAKER/SWITCH
Discount Schedule: DE2
GTIN: 785901433897
Returnability: Yes
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 5.80 in (14.732 cm)
Package 1 Width: 7.40 in (18.796 cm)
Package 1 Length: 8.80 in (22.352 cm)
Package 1 Weight: 4.86 lb(US) (2.205 kg)
Warranty: 18 months
