HOM2125 | MINIATURE CIRCUIT BREAKER ,2P, 120/240V 125A | Square D by Schneider Electric

Brand: Square DSKU: HOM2125

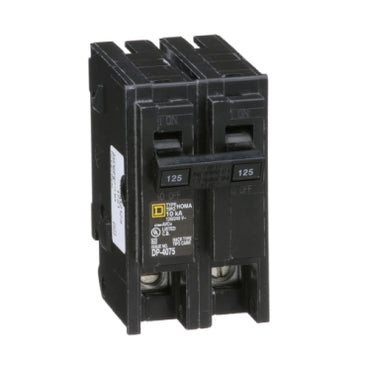

Square D | HOM2125
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to HOM2125
Jump to: Overview & Specifications Reviews

Overview Details for HOM2125

MINIATURE CIRCUIT BREAKER ,2P, 120/240V 125A

MINIATURE CIRCUIT BREAKER
  • Current Rating : 125 A
  • Voltage Rating : 120/240 V AC
  • Number of Poles : 2P
  • Short Circuit Current Rating : 10 kA
  • Circuit Breaker Type : Standard
Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 125A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. The electrical connections are box lugs that will accept 1 wires. The box lugs will accept a wire range of 4 AWG to 2/0 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 2.0 inch and depth of 2.98 inches. HOM Homeline miniature circuit breakers are UL Listed.

Specifications

Product
Miniature circuit-breaker
Range
Homeline
Current Rating
125 A
Certifications
UL Listed
Voltage Rating
120/240 V AC
Mounting Type
Plug-in
Number of Poles
2P
Short Circuit Current Rating
10 kA
Number of Spaces
2
Circuit Breaker Type
Standard
Ratings
HACR rated
Electrical Connection
Box lugs
Wire Size
AWG 4...AWG 2/0 aluminium/copper)1
tightening torque
42.48 lbf.in (4.8 N.m) (AWG 4...2/0 kcmil)
Height
3.13 in (79.50 mm)
Width
2 in (50.80 mm)
Depth
2.98 in (75.69 mm)
Ambient air temperature for operation
104 °F (40 °C)
Category
00151-HOM MAIN BREAKERS
Discount Schedule
DE3D
GTIN
785901065791
Returnability
Yes
Country of origin
MX
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
3.50 in (8.89 cm)
Package 1 Width
4.00 in (10.16 cm)
Package 1 Length
2.40 in (6.096 cm)
Package 1 Weight
13.60 oz (385.554 g)
Unit Type of Package 2
PAL
Number of Units in Package 2
1728
Package 2 Height
40.00 in (101.6 cm)
Package 2 Width
40.00 in (101.6 cm)
Package 2 Length
48.00 in (121.92 cm)
Package 2 Weight
1506.00 lb(US) (683.11 kg)
Unit Type of Package 3
CAR
Number of Units in Package 3
36
Package 3 Height
3.80 in (9.652 cm)
Package 3 Width
14.00 in (35.56 cm)
Package 3 Length
20.80 in (52.832 cm)
Package 3 Weight
31.40 lb(US) (14.243 kg)
Warranty
Lifetime
