Details for HOM120CAFI

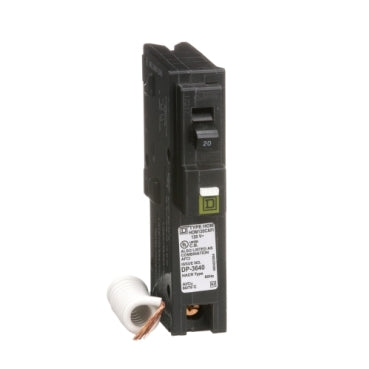

MINIATURE CIRCUIT BREAKER 120V 20A

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 1 pole circuit breaker with plug in mounting is rated 20A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. Homeline combination arc fault circuit interrupters provide overload and short circuit protection, plus arc fault protection in accordance with the NEC and UL1699. This breaker has a pigtail neutral. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 1.0 inch and depth of 2.98 inches. HOM Homeline miniature circuit breakers are UL Listed.

Specifications

Product: Miniature circuit-breaker
Range: Homeline
Current Rating: 20 A
Certifications: UL Listed
Voltage Rating: 120 V AC
Mounting Type: Plug-in
Number of Poles: 1P
Short Circuit Current Rating: 10 kA
Number of Spaces: 1
Circuit Breaker Type: Combination ARC-fault
Ratings: HACR rated
Electrical Connection: Screw clamp terminals
Wire Size: AWG 14...AWG 8 aluminium/copper)1
Connections - Terminals: Pigtail neutral
tightening torque: 35.40 lbf.in (4.0 N.m) 0.00…0.01 in² (2.5…6 mm²) (AWG 14...AWG 8)
Height: 3.13 in (79.50 mm)
Width: 1 in (25.40 mm)
Depth: 2.98 in (75.69 mm)
Ambient air temperature for operation: 104 °F (40 °C)
Category: 06301-HOM SINGLE POLE ARC FAULT CIRCUIT BREAKER
Discount Schedule: DE3D
GTIN: 785901601517
Returnability: Yes
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.30 in (3.302 cm)
Package 1 Width: 4.00 in (10.16 cm)
Package 1 Length: 5.50 in (13.97 cm)
Package 1 Weight: 10.40 oz (294.835 g)
Unit Type of Package 2: CAR
Number of Units in Package 2: 38
Package 2 Height: 3.90 in (9.906 cm)
Package 2 Width: 13.90 in (35.306 cm)
Package 2 Length: 20.80 in (52.832 cm)
Package 2 Weight: 25.05 lb(US) (11.362 kg)
Warranty: Lifetime
