HMISTU855 | TOUCH PANEL SCREEN 5.7 COLOR | Square D by Schneider Electric

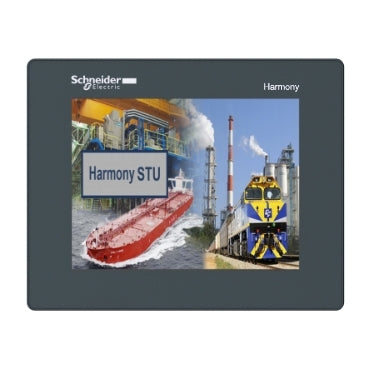

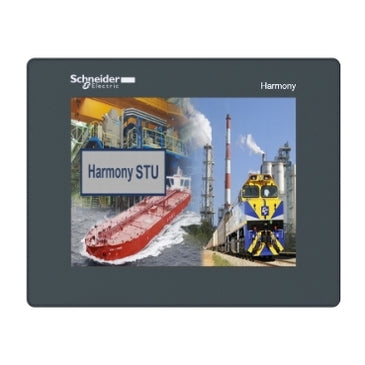

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to HMISTU855

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Square D HMISTU855 Documents

Datasheet More Info

Overview

Details for HMISTU855

TOUCH PANEL SCREEN 5.7 COLOR

This Magelis STU small touchscreen operator interface (HMI) is supplied with 24V DC, has a 5.7" color TFT LCD display with, 320 x 240 pixels (QVGA) and 32MB EPROM. It also has 1 host + 1 mini-B USB ports, 1 RS232C / RS485 port and 1 Ethernet TCP/IP port. It is ideal for optimized information and communication with automation systems in industry and infrastructure such as compact machines, handling systems, food & beverage machines and pharmaceutical industry. The screen displays graphic pages with monochrome screen. Thanks to its fixing with a 22mm diameter hole, no panel rectangular cut-out is required. Its RS485 host port makes it ideal to supervise and control simple systems and machines.

Specifications

Range of Product: Harmony STO & STU
Product or Component Type: Touch panel screen
Software Designation: Vijeo Designer
Operating System: Harmony
processor name: CPU ARM9
Display size: 5.7 inch
Display Type: QVGA TFT colour touchscreen
display colour: 65536 colours
Display Resolution: 320 x 240 pixels QVGA
touch panel: Analogue
backlight lifespan: 50000 hours
brightness: 16 levels
character font: Taiwanese (traditional Chinese);Japanese (ANK;Kanji);Chinese (simplified Chinese);ASCII;Korean
[Us] rated supply voltage: 24 V DC
supply: External source
supply voltage limits: 20.4…28.8 V
inrush current: 30 A
Power Consumption in W: 6.8 W
number of pages: Limited by internal memory capacity
processor frequency: 333 MHz
memory description: Application memory 16 MB;Back up of data 64 kB
integrated connection type: 1 USB 2.0 type mini B;1 USB 2.0 type A;COM1 serial link - female RJ45 - RS232C/RS485 <= 115.2 kbits/s);power supply - removable screw terminal block;1 Ethernet - RJ45
realtime clock: Access to the PLC real-time clock
downloadable protocols: Uni-TE;Modbus TCP/IP;Third party protocols;Modbus
fixing mode: Ø 22 mm hole
Enclosure Material: PC/PBT and PAA
Marking: With Schneider logo;CE
Height: 5.08 in (129.15 mm)
Width: 6.42 in (163 mm)
Depth: 2.22 in (56.5 mm)
immunity to microbreaks: 7 ms
Standards: UL 1604;FCC Class A;IEC 61000-6-2;EN 61131-2;UL 508
Product Certifications: UL class 1 Div2 T4A ou T5;C-tick;cULus;Marine;UKCA
Ambient Air Temperature for Operation: 32…122 °F (0…50 °C)
Ambient Air Temperature for Storage: -4…140 °F (-20…60 °C)
relative humidity: 0…85 % without condensation
Operating altitude: <= 6561.68 ft (2000 m)
IP degree of protection: IP20 IEC 60529 rear panel);IP65 IEC 60529 front panel)
NEMA degree of protection: NEMA 4X front panel indoor use)
shock resistance: 15 gn 11 msIEC 60068-2-27
vibration resistance: +/- 3.5 mm 5…9 Hz) IEC 60068-2-6;1 gn 9…150 Hz) IEC 60068-2-6
resistance to electromagnetic fields: 9.14 V/m (10 V/m) IEC 61000-4-3
Category: 22569-MAGELIS XBT-GT (AND XBT-G)
Discount Schedule: MC2
GTIN: 3606489909499
Returnability: Yes
Country of origin: CN
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 2.74 in (6.961 cm)
Package 1 Width: 7.30 in (18.532 cm)
Package 1 Length: 10.62 in (26.974 cm)
Package 1 Weight: 30.51 oz (865 g)
Unit Type of Package 2: S03
Number of Units in Package 2: 8
Package 2 Height: 11.81 in (30 cm)
Package 2 Width: 11.81 in (30 cm)
Package 2 Length: 15.75 in (40 cm)
Package 2 Weight: 262.29 oz (7436 g)
Unit Type of Package 3: P12
Number of Units in Package 3: 192
Package 3 Height: 37.40 in (95 cm)
Package 3 Width: 31.50 in (80 cm)
Package 3 Length: 47.24 in (120 cm)
Package 3 Weight: 6612.49 oz (187464 g)
Warranty: 18 months
