    HMIGTO2300 | Advanced Touchscreen Panel 320 x 240 Pixels QVGA- 5.7 in. TFT - 64 MB | Square D

    Brand: Square DSKU: HMIGTO2300
    Square D | HMIGTO2300

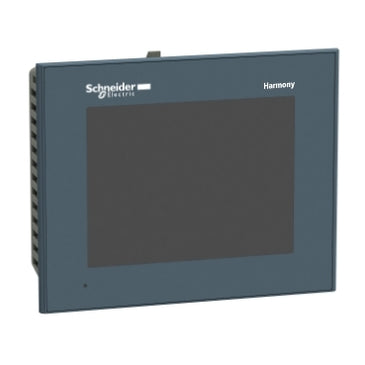

    The photo is for representation purposes only and may not be a photo of product being purchased.
    Search products similar to HMIGTO2300
    Jump to: Overview & Specifications Reviews

    Overview Details for HMIGTO2300

    Advanced Touchscreen Panel 320 x 240 Pixels QVGA- 5.7 in. TFT - 64 MB

    Advanced Touchscreen Panel
    • Display resolution - 320 x 240 Pixels
    • QVGA- 5.7 in. TFT
    • Memory - 64 MB
    This Magelis GTO IP65 touchscreen operator interface (HMI) is supplied with 24V DC, has a 5.7" color TFT LCD display, 320 x 240 pixels (QVGA) and 64MB EPROM. It also has 1 host + 1 mini-B USB ports, 1 RS232C port and 1 RS485 port. It is ideal for optimized information and communication with automation systems in industry and infrastructure such as compact machines, handling systems, food & beverage machines and pharmaceutical industry. The screen displays text messages, graphic objects and mimic diagrams, control and configuration of data. Its RS485 host port makes it ideal to supervise and control simple systems and machines. It is easily programmable with Vijeo Designer, with almost not coding needed.

    Specifications

    Range of Product
    Harmony GTO
    Product or Component Type
    Advanced touchscreen panel
    display colour
    65536 colours
    Display size
    5.7 inch
    supply
    External source
    Operating System
    Harmony
    battery type
    Lithium internal RAM 100 days 5 day(s) 10 year(s)
    terminal type
    Touchscreen display
    Display Type
    Backlit colour TFT LCD
    Display Resolution
    320 x 240 pixels QVGA
    touch sensitive zone
    1024 x 1024
    touch panel
    Resistive film;1000000 cycles
    backlight lifespan
    50000 hours white 77 °F (25 °C)
    brightness
    16 levels by touch panel;16 levels by software
    character font
    Chinese (simplified Chinese);Korean;ASCII (European characters);Japanese (ANK;Kanji);Taiwanese (traditional Chinese)
    [Us] rated supply voltage
    24 V DC
    supply voltage limits
    19.2…28.8 V
    inrush current
    30 A
    maximum power consumption in W
    6.5 W when power is not supplied to external devices;4.5 W when backlight is OFF;5 W when backlight is dimmed;10.5 W
    local signalling
    Status LED green;steady offline;Status LED green;steady operating;Status LED orange;flashing software starting up;Status LED red;steady power supply (ON);Status LED clear;faded power supply (OFF);COM2 LED yellow;steady data is being transmitted;COM2 LED yellow;faded no data transmission;SD card LED green;steady card is inserted;SD card LED green;faded card is not inserted or is not being accessed
    software designation
    Vijeo Designer configuration software >= V6.1
    memory description
    Flash EPROM;64 MB
    data backed up
    128 kB internal RAM SRAM)
    downloadable protocols
    Schneider Electric Modicon Modbus;Schneider Electric Modicon Uni-TE;Schneider Electric Modicon Modbus Plus;Schneider Electric Modicon FIPWAY;Mitsubishi Melsec third party protocols;Omron Sysmac third party protocols;Rockwell Automation Allen-Bradley third party protocols;Siemens Simatic third party protocols
    integrated connection type
    COM1 serial link SUB-D 9 RS232C 2400...115200 bps;COM2 serial link RJ45 RS485 2400...115200 bps;COM2 serial link RJ45 RS485 187.5 kbps Siemens MPI;USB 2.0 type A;USB 2.0 type mini B
    product mounting
    Flush mounting
    fixing mode
    by 4 screw clamps
    front material
    PPT
    Enclosure Material
    PPT
    type of cooling
    Natural convection
    Width
    6.67 in (169.5 mm)
    Height
    5.39 in (137 mm)
    Depth
    2.34 in (59.5 mm)
    Net Weight
    1.76 lb(US) (0.8 kg)
    Standards
    IEC 61000-6-2;UL 508;EN 61131-2
    Product Certifications
    KCC;CE;cULus;C-tick
    Ambient air temperature for operation
    32…122 °F (0…50 °C)
    ambient air temperature for storage
    -4…140 °F (-20…60 °C)
    relative humidity
    10…90 % without condensation
    operating altitude
    < 6561.68 ft (2000 m)
    IP degree of protection
    IP20 IEC 60529 rear panel);IP65 IEC 60529 front panel)
    NEMA degree of protection
    NEMA 4X front panel (indoor use)
    shock resistance
    147 m/s² 3 chocks in each direction X;Y and Z EN/IEC 61131-2
    vibration resistance
    3.5 mm 5…9 Hz) - X;Y;Z directions for 10 cycles (approx. 100 min) - EN/IEC 61131-2;1 gn 9…150 Hz) - X;Y;Z directions for 10 cycles (approx. 100 min) - EN/IEC 61131-2
    resistance to electrostatic discharge
    6 kV contact discharge IEC 61000-4-2 level 3
    Category
    22569-MAGELIS XBT-GT (AND XBT-G)
    Discount Schedule
    MC2
    GTIN
    3595864150239
    Returnability
    Yes
    Country of origin
    CN
    Unit Type of Package 1
    PCE
    Number of Units in Package 1
    1
    Package 1 Height
    5.91 in (15.0 cm)
    Package 1 Width
    7.48 in (19.0 cm)
    Package 1 Length
    9.45 in (24.0 cm)
    Package 1 Weight
    2.35 lb(US) (1.064 kg)
    Unit Type of Package 2
    S03
    Number of Units in Package 2
    4
    Package 2 Height
    11.81 in (30.0 cm)
    Package 2 Width
    11.81 in (30.0 cm)
    Package 2 Length
    15.75 in (40.0 cm)
    Package 2 Weight
    11.53 lb(US) (5.232 kg)
    Unit Type of Package 3
    P12
    Number of Units in Package 3
    64
    Package 3 Height
    29.53 in (75.0 cm)
    Package 3 Width
    31.50 in (80.0 cm)
    Package 3 Length
    47.24 in (120.0 cm)
    Package 3 Weight
    198.42 lb(US) (90.0 kg)
    Warranty
    18 months
