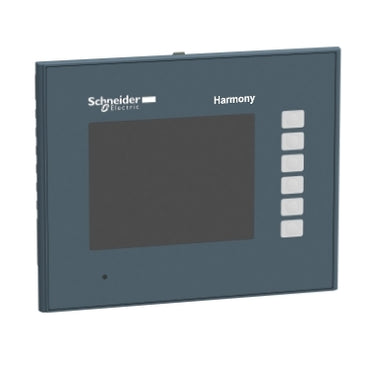

Advanced Touchscreen Panel 320 x 240 Pixels QVGA- 3.5 in. TFT - 64 MB
This Magelis GTO IP65 touchscreen operator interface (HMI) is supplied with 24V DC, has a 3.5" color TFT LCD display, 320 x 240 pixels (QVGA), 6 function keys and 64MB EPROM. It also has 1 host + 1 mini-B USB ports, 1 RS232C port and 1 RS485 port. It is ideal for optimized information and communication with automation systems in industry and infrastructure such as compact machines, handling systems, food & beverage machines and pharmaceutical industry. The screen displays text messages, graphic objects and mimic diagrams, control and configuration of data. Its RS485 host port makes it ideal to supervise and control simple systems and machines. It is easily programmable with Vijeo Designer, with almost not coding needed.Specifications
- Range of Product
- Harmony GTO
- Product or Component Type
- Advanced touchscreen panel
- display colour
- 65536 colours
- Display size
- 3.5 inch
- supply
- External source
- Control Button Type
- 6 operation defined using Vijeo Designer push-button key F1...F6
- Operating System
- Harmony
- battery type
- Lithium internal RAM 100 days 5 day(s) 10 year(s)
- terminal type
- Touchscreen display
- Display Type
- Backlit colour TFT LCD
- Display Resolution
- 320 x 240 pixels QVGA
- touch sensitive zone
- 1024 x 1024
- touch panel
- Resistive film;1000000 cycles
- backlight lifespan
- 50000 hours white 77 °F (25 °C)
- brightness
- 16 levels by touch panel;16 levels by software
- character font
- Chinese (simplified Chinese);ASCII (European characters);Japanese (ANK;Kanji);Korean;Taiwanese (traditional Chinese)
- [Us] rated supply voltage
- 24 V DC
- supply voltage limits
- 19.2…28.8 V
- inrush current
- 30 A
- maximum power consumption in W
- 5.2 W when power is not supplied to external devices;4.2 W when backlight is OFF;4.3 W when backlight is dimmed;9.6 W
- local signalling
- Status LED green;steady offline;Status LED green;steady operating;Status LED orange;flashing software starting up;Status LED red;steady power supply (ON);Status LED clear;faded power supply (OFF)
- software designation
- Vijeo Designer configuration software >= V6.1
- memory description
- Flash EPROM;64 MB
- data backed up
- 128 kB internal RAM SRAM)
- downloadable protocols
- Schneider Electric Modicon Modbus;Schneider Electric Modicon Uni-TE;Schneider Electric Modicon Modbus Plus;Schneider Electric Modicon FIPWAY;Mitsubishi Melsec third party protocols;Omron Sysmac third party protocols;Rockwell Automation Allen-Bradley third party protocols;Siemens Simatic third party protocols
- integrated connection type
- COM1 serial link SUB-D 9 RS232C 2400...115200 bps;COM2 serial link RJ45 RS485 2400...115200 bps;COM2 serial link RJ45 RS485 187.5 kbps Siemens MPI;USB 2.0 type A;USB 2.0 type mini B
- product mounting
- Flush mounting
- fixing mode
- by 4 screw clamps
- front material
- PPT
- Enclosure Material
- PPT
- type of cooling
- Natural convection
- Width
- 5.20 in (132 mm)
- Height
- 4.17 in (106 mm)
- Depth
- 1.65 in (42 mm)
- Net Weight
- 0.88 lb(US) (0.4 kg)
- Standards
- UL 508;EN 61131-2;IEC 61000-6-2
- Product Certifications
- C-tick;cULus;CE;KCC
- Ambient air temperature for operation
- 32…122 °F (0…50 °C)
- ambient air temperature for storage
- -4…140 °F (-20…60 °C)
- relative humidity
- 10…90 % without condensation
- operating altitude
- < 6561.68 ft (2000 m)
- IP degree of protection
- IP20 IEC 60529 rear panel);IP65 IEC 60529 front panel)
- NEMA degree of protection
- NEMA 4X front panel (indoor use)
- shock resistance
- 147 m/s² 3 chocks in each direction X;Y and Z EN/IEC 61131-2
- vibration resistance
- 9.8 m/s² 9…150 Hz) - X;Y;Z directions for 10 cycles (approx. 100 min) - EN/IEC 61131-2;3.5 mm 5…9 Hz) - X;Y;Z directions for 10 cycles (approx. 100 min) - EN/IEC 61131-2
- resistance to electrostatic discharge
- 6 kV contact discharge IEC 61000-4-2 level 3
- Category
- 22569-MAGELIS XBT-GT (AND XBT-G)
- Discount Schedule
- MC2
- GTIN
- 3595864150215
- Returnability
- Yes
- Country of origin
- ID
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 4.92 in (12.5 cm)
- Package 1 Width
- 7.17 in (18.2 cm)
- Package 1 Length
- 8.46 in (21.5 cm)
- Package 1 Weight
- 27.30 oz (774 g)
- Unit Type of Package 2
- S03
- Number of Units in Package 2
- 4
- Package 2 Height
- 11.81 in (30 cm)
- Package 2 Width
- 11.81 in (30 cm)
- Package 2 Length
- 15.75 in (40 cm)
- Package 2 Weight
- 7.90 lb(US) (3.583 kg)
- Package 3 Height
- 5.91 in (15.0 cm)
- Warranty
- 18 months
