HMIG3X | Magelis Premium BOX - for Magelis GTU Universal Pane | Square D by Schneider Electric

Brand: Square DSKU: HMIG3X

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to HMIG3X

Jump to: Overview & Specifications Reviews

Overview Details for HMIG3X

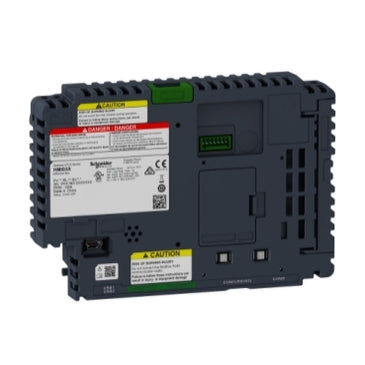

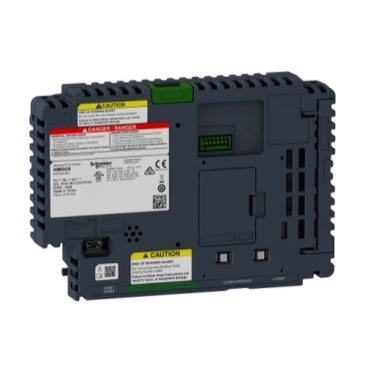

Magelis Premium BOX - for Magelis GTU Universal Pane

Specifications

Range of Product: Harmony GTUX
Product or Component Type: Base unit
device short name: eXtreme Box
[Us] rated supply voltage: 12 V DC power supply
power consumption in W: 20.0 W
integrated connection type: Ethernet TCP/IP 2 RJ45 10 BASE-T/100 BASE-TX/1000 BASE-T;COM1 serial link RJ45 RS485 110...115200 bit/s;COM1 serial link RJ45 RS485 187.5 kbit/s;COM2 serial link SUB-D 9 RS232C/RS422/RS485 110...115200 bit/s;COM2 serial link SUB-D 9 RS232C/RS422/RS485 187.5 kbit/s;Auxiliary port terminal block;Expansion unit fieldbus card;USB 2.0 port 2 USB type A;USB 2.0 port mini B USB
communication port protocol: Modbus TCP/IP;Modbus serial;Uni-Telway
operating system: Harmony
software package: Vijeo Designer run time
processor name: CPU RISC
data storage equipment: 1 GB SD card
memory description: 256 MB RAM internal 2 x 13 mm board);512 kB NVRAM backup memory
number of slots: 2 SD card
type of cooling: Natural convection
Width: 7.40 in (188 mm)
Height: 5.16 in (131 mm)
Depth: 1.77 in (45 mm)
Net Weight: 1.98 lb(US) (0.9 kg)
standards: UL 61010;UL 121201;CSA C22.2 No 213;CSA C22.2 No 61010-1;IEC 61132-2
Product Certifications: CE;KC;RCM;EAC;ATEX zone 2/22;IEC-Ex;UL;CSA
resistance to fast transients: 1 kV IEC 61000-4-4 signal ports);2 kV IEC 61000-4-4 power ports)
resistance to electrostatic discharge: 6 kV contact discharge EN/IEC 61000-4-2 level 3;8 kV air discharge EN/IEC 61000-4-2 level 3
ambient air temperature for operation: -22…158 °F (-30…70 °C)
ambient air temperature for storage: -22…158 °F (-30…70 °C)
pollution degree: 2 EN 61131-2 Ed.3
environmental characteristic: Corrosive gas free
Relative Humidity: 10…90 % non-condensing
operating altitude: 6561.68 ft (2000 m)
vibration resistance: 7 mm 5…9 Hz) X;Y;Z directions for 10 cycles (approx. 100 min) EN/IEC 61131-2;19.6 m/s² 9…150 Hz) EN/IEC 61131-2
shock resistance: 392 m/s² X;Y;Z directions for 3 times)EN/IEC 61131-2
electromagnetic compatibility: Electrostatic discharge immunity test EN/IEC 61000-4-2 level 3
Category: 22567-MAGELIS HMI GTU
Discount Schedule: MC2
GTIN: 3606489747930
Returnability: Yes
Country of origin: CN
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 5.16 in (13.1 cm)
Package 1 Width: 8.27 in (21 cm)
Package 1 Length: 10.24 in (26 cm)
Package 1 Weight: 42.84 oz (1214.5 g)
Unit Type of Package 2: S04
Number of Units in Package 2: 4
Package 2 Height: 11.81 in (30 cm)
Package 2 Width: 15.75 in (40 cm)
Package 2 Length: 23.62 in (60 cm)
Package 2 Weight: 203.25 oz (5762 g)
Unit Type of Package 3: P12
Number of Units in Package 3: 48
Package 3 Height: 31.50 in (80 cm)
Package 3 Width: 47.24 in (120 cm)
Package 3 Length: 43.31 in (110 cm)
Package 3 Weight: 2756.40 oz (78144 g)
