HLL36060LV | MOLDED CASE CIRCUIT BREAKER 600V 60A | Square D by Schneider Electric
Get your Special Pricing!
Log In / Create an Account for the LOWEST PRICING on our most Popular Brands!

Web Price:

$2,479.27
Availability: This product is currently available to purchase

Contact us for price breaks on large quantities!

This item ships FREE*
*Free shipping applies within the continental US and weighing less than 50 lbs. Shipping and Returns Terms
Ship to Estimates
Are you from Chicago?
Yes / No
This item ships to
Change
Cancel


*shipping cost are estimated until you complete your order

Speak With a Technical Expert

Image for Technical Expert

Documents: HLL36060LV

HLL36060LV | MOLDED CASE CIRCUIT BREAKER 600V 60A | Square D by Schneider Electric

Brand: Square DSKU: HLL36060LV
Square D | HLL36060LV

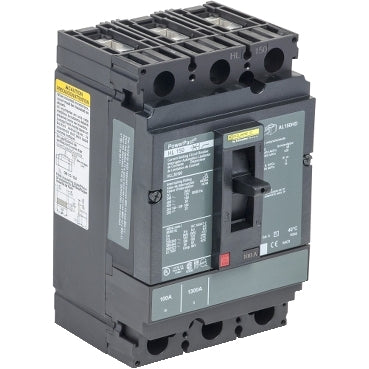

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to HLL36060LV

Overview Details for HLL36060LV

MOLDED CASE CIRCUIT BREAKER 600V 60A

PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 50kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT H, 60A, 3 pole, circuit breaker has a breaking capacity of 50kA at 600VAC. This circuit breaker has a continuous current rating of 80%. This unit includes a control wire terminal on the load end. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Specifications

range
PowerPact
product name
PowerPact H
Product or Component Type
Circuit breaker
Device Application
Distribution
Line Rated Current
60 A
Number of Poles
3P
protected poles description
3t
Control Type
Toggle
breaking capacity code
L
breaking capacity
125 kA 240 V AC 50/60 Hz UL 489;100 kA 480 V AC 50/60 Hz UL 489;50 kA 600 V AC 50/60 Hz UL 489;20 kA 250 V DC UL 489;50 kA 500 V DC UL 489
[Ue] rated operational voltage
690 V AC 50/60 Hz IEC 60947-3
Network Frequency
50/60 Hz
[Ics] rated service breaking capacity
125 kA 220/240 V AC 50/60 Hz IEC 60947-2;100 kA 380/440/415 V AC 50/60 Hz IEC 60947-2;50 kA 500/525 V AC 50/60 Hz IEC 60947-2;20 kA 250 V DC IEC 60947-2;20 kA 500 V DC IEC 60947-2
[Uimp] rated impulse withstand voltage
8 kV IEC 60947-2
trip unit technology
Thermal-magnetic
magnetic tripping current
1450 A
magnetic hold current
800 A
continuous current rating
80 %
[Ui] rated insulation voltage
750 V IEC 60947-2
accessory / separate part type
Control wire OFF end
suitability for isolation
Yes IEC 60947-2
utilisation category
Category A
AWG gauge
AWG 14...AWG 3/0 aluminium/copper terminal
local signalling
Switched off (OFF) 1 trip indicator green)
mounting mode
Unit mount lug)
Mounting Support
Lug
electrical connection
Lugs line;Lugs load
terminal identifier
AL150HD
tightening torque
44.25 lbf.in (5 N.m) 0.00…0.01 in² (2.5…6 mm²) (AWG 14...AWG 10);123.91 lbf.in (14 N.m) 0.02…0.15 in² (10…95 mm²) (AWG 8...AWG 3/0)
number of slots
2 auxiliary switch OF plug-in);1 alarm switch SD plug-in);1 overcurrent trip switch SDE plug-in);1 voltage release MN or MX plug-in)
Power wire stripping length
0.63 in (16 mm)
Color
Black
Height
6.42 in (163 mm)
Width
4.09 in (104 mm)
Depth
3.39 in (86 mm)
Net Weight
4.85 lb(US) (2.2 kg)
Quantity per Set
1
communication interface
Modbus;Ethernet
circuit breaker application
HACR rated
quality labels
CE
Standards
UL;CSA;NEMA;NOM-003-SCFI-2000;IEC 60947-2
product certifications
UL;CSA;NOM
IP degree of protection
Front cover IP40 IEC 60529
pollution degree
3 IEC 60947-1
Ambient air temperature for operation
28…158 °F (-2…70 °C)
Ambient Air Temperature for Storage
-58…185 °F (-50…85 °C)
operating altitude
< 6561.68 ft (2000 m) without derating;5000 m with derating
Category
01120-HL;JL UNIT MT BREAKER/SWITCH
Discount Schedule
DE2
Returnability
No
Country of origin
MX
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
5.13 in (13.018 cm)
Package 1 Width
7.25 in (18.415 cm)
Package 1 Length
8.44 in (21.433 cm)
Package 1 Weight
4.16 lb(US) (1.885 kg)
Warranty
18 months
