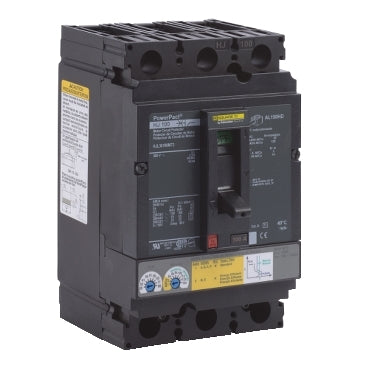

HJL36100M73 | PowerPact H Circuit Breaker, Motor Protector, 100A, 3P, 600V, 25kA | Square D by Schneider Electric

Brand: Square DSKU: HJL36100M73

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to HJL36100M73

Jump to: Overview & Specifications Reviews

Overview Details for HJL36100M73

PowerPact H Circuit Breaker, Motor Protector, 100A, 3P, 600V, 25kA

PowerPacT H-Frame motor circuit protectors (MCP) are instantaneous-trip circuit breakers designed to offer short circuit protection for motors. The unique design of the PowerPacT MCPs accommodates transient motor inrush current without nuisance tripping. These motor protectors accept the same accessories and terminals as equivalent PowerPact circuit breakers. This unit has lugs on both the line and load side. This PowerPacT H, 100A, 3 pole, motor protector has a breaking capacity of 25kA at 600VAC. PowerPact electronic Motor Circuit Protectors accept the same accessories and terminals as equivalent PowerPact circuit breakers. This breaker has lugs on both the line and load sides. This breaker has a continuous current rating of 80%. PowerPacT H motor circuit protectors comply to UL, CSA, and IEC standards and are CE marked.

Specifications

range: PowerPact
product name: PowerPact H
Product or Component Type: Motor Circuit Protector
Device Application: Distribution
Line Rated Current: 100 A
Number of Poles: 3P
protected poles description: 3t
Control Type: Toggle
breaking capacity code: J
breaking capacity: 100 kA 240 V AC 50/60 Hz UL 489;65 kA 480 V AC 50/60 Hz UL 489;25 kA 600 V AC 50/60 Hz UL 489;20 kA 250 V DC UL 489
[Ue] rated operational voltage: 690 V AC 50/60 Hz IEC 60947-3
Network Frequency: 50/60 Hz
[Ics] rated service breaking capacity: 65 kA 220/240 V AC 50/60 Hz IEC 60947-2;35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2;18 kA 500/525 V AC 50/60 Hz IEC 60947-2;20 kA 250 V DC IEC 60947-2;20 kA 500 V DC IEC 60947-2
[Uimp] rated impulse withstand voltage: 8 kV IEC 60947-2
trip unit technology: Thermal-magnetic
[Ith] conventional free air thermal current: 30…80 A
magnetic tripping current: 180…1040 A
continuous current rating: 80 %
[Ui] rated insulation voltage: 750 V IEC 60947-2
suitability for isolation: Yes IEC 60947-2
utilisation category: Category A
AWG gauge: AWG 14...AWG 3/0 aluminium/copper terminal
mounting mode: Unit mount lug)
Mounting Support: Lug
electrical connection: Lugs line;Lugs load
terminal identifier: AL150HD
tightening torque: 44.25 lbf.in (5 N.m) 0.00…0.01 in² (2.5…6 mm²) (AWG 14...AWG 10);123.91 lbf.in (14 N.m) 0.02…0.15 in² (10…95 mm²) (AWG 8...AWG 3/0)
number of slots: 2 auxiliary switch OF plug-in);1 alarm switch SD plug-in);1 overcurrent trip switch SDE plug-in);1 voltage release MN or MX plug-in)
Power wire stripping length: 0.63 in (16 mm)
Color: Black
Height: 6.42 in (163 mm)
Width: 4.09 in (104 mm)
Depth: 3.39 in (86 mm)
Net Weight: 4.85 lb(US) (2.2 kg)
Quantity per Set: 1
communication interface: Modbus;Ethernet
quality labels: CE
Standards: UL;CSA;NEMA;NOM-003-SCFI-2000;IEC 60947-2
product certifications: UL;CSA;NOM
IP degree of protection: Front cover IP40 IEC 60529
pollution degree: 3 IEC 60947-1
Ambient air temperature for operation: 28…158 °F (-2…70 °C)
Ambient Air Temperature for Storage: -58…185 °F (-50…85 °C)
operating altitude: < 6561.68 ft (2000 m) without derating;5000 m with derating
Category: 01125-HJ;JJ UNT MNT MTR CIRCUIT PROTECTR
Discount Schedule: DE2
GTIN: 785901647706
Returnability: Yes
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 5.51 in (14.0 cm)
Package 1 Width: 7.40 in (18.8 cm)
Package 1 Length: 8.82 in (22.4 cm)
Package 1 Weight: 4.32 lb(US) (1.96 kg)
Warranty: 18 months
