H368N | SW,FUSIBLE 600V 1200A 3P NEMA1/NEUTRAL | Square D by Schneider Electric

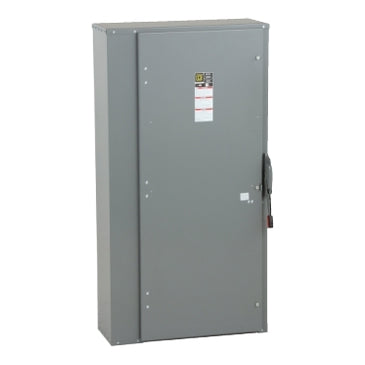

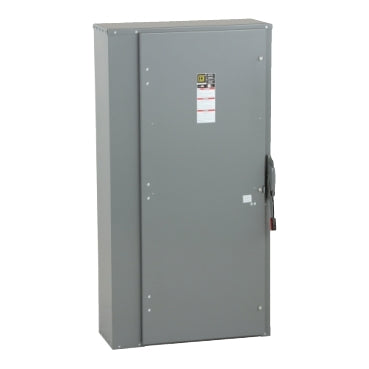

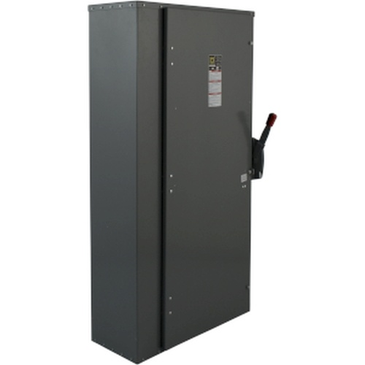

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to H368N
Overview
Details for H368N
SW,FUSIBLE 600V 1200A 3P NEMA1/NEUTRAL
Specifications
- Product
- Single Throw Safety Switch
- Duty Rating
- Heavy duty
- Device Application
- Heavy application
- Disconnect Type
- Fusible disconnect
- Factory Installed Neutral
- Neutral (factory installed)
- Phase
- 3 phase
- Number of Poles
- 3
- Current Rating
- 1200 A
- Voltage Rating
- 600 V AC/DC
- Enclosure Rating
- NEMA 1 steel
- Motor power hp
- 200 hp at 480 V AC 50-60 Hz for 3 phase motors;500 hp at 480 V AC 50-60 Hz for 3 phase motors;250 hp at 600 V AC 50-60 Hz for 3 phase motors;500 hp at 600 V AC 50-60 Hz for 3 phase motors;50 hp at 600 V DC
- Short Circuit Current Rating
- 200 kA maximum L
- fuse type
- L
- Mounting Type
- Surface
- Electrical Connection
- Lugs
- wiring configuration
- 4-wire (3PH + N)
- Wire Size
- AWG 3/0...750 kcmil copper or aluminium
- tightening torque
- 375 lbf.in (42.37 N.m) 0.13…0.59 in² (85.01…380 mm²) (AWG 3/0...750 kcmil)
- Depth
- 17.75 in (450.85 mm)
- Width
- 36.62 in (930.15 mm)
- Height
- 69.13 in (1755.90 mm)
- Net Weight
- 371.92 lb(US) (168.7 kg)
- Certifications
- UL listed file E2875
- Category
- 00053-H&HU SW;NEMA1;400-1200A
- Discount Schedule
- DE1
- GTIN
- 785901442462
- Returnability
- Yes
- Country of origin
- US
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 73.50 in (186.7 cm)
- Package 1 Width
- 29.88 in (75.9 cm)
- Package 1 Length
- 37.99 in (96.5 cm)
- Package 1 Weight
- 362.00 lb(US) (164.2 kg)
- Warranty
- 18 months
