H362AWH | SWITCH FUSIBLE HD 60A HUBBELLOCK RECEPT | Square D (OBSOLETE)

Brand: Square DSKU: H362AWH

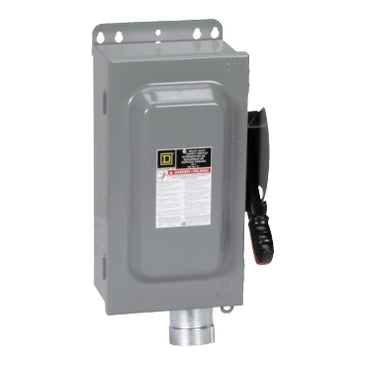

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to H362AWH

Jump to: Overview & Specifications Reviews

Overview Details for H362AWH

DISCONTINUED MODEL, CONTACT TECHNICAL SUPPORT FOR REPLACEMENT OPTIONS

SWITCH FUSIBLE HD 60A HUBBELLOCK RECEPT

SWITCH FUSIBLE HD

Line Rated Current : 60 A
Enclosure Rating : NEMA 12 galvannealed steel
Horsepower Rating: 50 hp 600 V AC, 30 hp 480 V AC
Disconnect Type : Fusible disconnect switch
Short Circuit Current Rating : 10 kA
Number of Poles : 3
Phase : 3 phases

These Square D heavy duty safety switches are designed to provide exceptional electrical protection in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard. Some of the things that make these switches desirable is there reliability, life durability, ease to install and safety features. Due to this, these heavy duty switches are the ideal for your electrical disconnect and protection for all your commercial and industrial needs. This is a three pole fusible heavy duty safety switch that is rated at 200A with voltage of 600 VAC and 600 VDC. It is rated when using time delay fuses of 120 HP at 480 VAC three phase, 150 HP at 600 VAC three phase and 50 HP at 600 VDC. This switch has a 3 wire configuration and is rated for 6 AWG to 250 kcmil aluminum or copper wire. This device has enclosure rating of NEMA 4/4X/5 and it is made of stainless steel. It has a height of 29 in, width of 19.25 in and has a depth of 8.88 in. It is UL listed with the file E2875.

Specifications

Product: Receptacle Switch
For Use With: Plug SD12781 Hubbellock
Disconnect Type: Fusible disconnect switch
Phase: 3 phase
Number of Poles: 3
Current rating: 60 A
Voltage Rating: 600 V AC;250 V DC
Enclosure Rating NEMA 3R: NEMA 12K
Maximum Horse Power Rating: 15 hp at 480 V AC 50-60 Hz for 3 phase motors;30 hp at 480 V AC 50-60 Hz for 3 phase motors;15 hp at 600 V AC 50-60 Hz for 3 phase motors;50 hp at 600 V AC 50-60 Hz for 3 phase motors;10 hp at 250 V DC
Mounting Type: Surface
Electrical Connection: Receptacle
Wire Configuration: 4-wire
Wire Size: AWG 12...AWG 2 aluminium;AWG 14...AWG 2 copper
tightening torque: 45 lbf.in (5.08 N.m) (AWG 6...AWG 4);40 lbf.in (4.52 N.m) (AWG 8);35 lbf.in (3.95 N.m) (AWG 14...AWG 10)
Depth: 7 in (177.80 mm)
Width: 10.5 in (266.70 mm)
Height: 16.5 in (419.10 mm)
Net Weight: 17.64 lb(US) (8 kg)
Certifications: UL Listed
Category: 00119-H&HU SW;W/HUBBELL RECPT-WH
Discount Schedule: DE1
GTIN: 785901482123
Returnability: Yes
Country of origin: US
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 8.00 in (20.32 cm)
Package 1 Width: 14.00 in (35.56 cm)
Package 1 Length: 32.30 in (82.042 cm)
Package 1 Weight: 20.48 lb(US) (9.29 kg)
Warranty: 18 months
