Documents: H361DS

Datasheet More Info

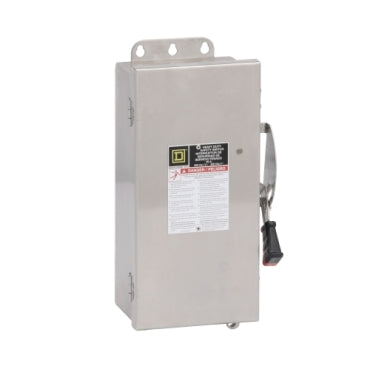

H361DS | SWITCH FUSIBLE HD 30A 3P STAINLESS | Square D

Brand: Square DSKU: H361DS

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to H361DS

Jump to: Overview & Specifications Reviews

Overview Details for H361DS

SWITCH FUSIBLE HD 30A 3P STAINLESS

The Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. F Series safety switches provide significantly higher levels of mechanical endurance than NEMA KS-1 or UL98 standards require. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock and a color-coded indicator handle. This Single Throw Safety Switch has a rated current of 30A and is UL listed with a NEMA 3/3R4/4X/12 rating of protection. This 3-pole switch has operational voltage ratings of & 600VAC/DC. The enclosure is made of stainless steel 304 and has no neutral installed. This fusible disconnect has a short circuit current rating of 10kA to 200kA. This safety switch accepts H,J,K,L,Rfuse types and is surface mounted. This switch comes with an 18 months warranty.

Specifications

Product: Single Throw Safety Switch
Duty Rating: Heavy duty
Device Application: Heavy application
Disconnect Type: Fusible disconnect
Factory Installed Neutral: None
Phase: 3 phase
Number of Poles: 3
Current Rating: 30 A
Voltage Rating: 600 V AC/DC
Enclosure Rating: NEMA 4/4X/5 stainless steel 304
Motor power hp: 5 hp at 480 V AC 50-60 Hz for 3 phase motors;15 hp at 480 V AC 50-60 Hz for 3 phase motors;7.5 hp at 600 V AC 50-60 Hz for 3 phase motors;20 hp at 600 V AC 50-60 Hz for 3 phase motors;5 hp at 250 V DC;15 hp at 600 V DC
Short Circuit Current Rating: 10 kA H or K;200 kA R or J
fuse type: H or K;R or J
Mounting Type: Surface
Electrical Connection: Lugs
wiring configuration: 3-wire (3P)
Wire Size: AWG 12...AWG 6 aluminium;AWG 14...AWG 6 copper
tightening torque: 45 lbf.in (5.08 N.m) 0.02 in² (13.3 mm²) (AWG 6);40 lbf.in (4.52 N.m) 0.01 in² (8.367 mm²) (AWG 8);35 lbf.in (3.95 N.m) 0.00…0.01 in² (2.06…5.261 mm²) (AWG 14...AWG 10)
Depth: 5.11 in (129.79 mm)
Width: 8.67 in (220.22 mm)
Height: 14.93 in (379.22 mm)
Net Weight: 13.23 lb(US) (6 kg)
Certifications: UL listed file E2875
Category: 00010-H&HU SW;2&3P;N4;SS;30-200A
Discount Schedule: DE1
GTIN: 785901023616
Returnability: Yes
Country of origin: US
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 5.80 in (14.732 cm)
Package 1 Width: 9.10 in (23.114 cm)
Package 1 Length: 17.50 in (44.45 cm)
Package 1 Weight: 13.74 lb(US) (6.232 kg)
Unit Type of Package 2: PAL
Number of Units in Package 2: 70
Package 2 Height: 45.00 in (114.3 cm)
Package 2 Width: 40.00 in (101.6 cm)
Package 2 Length: 48.00 in (121.92 cm)
Package 2 Weight: 961.00 lb(US) (435.902 kg)
Warranty: 18 months
