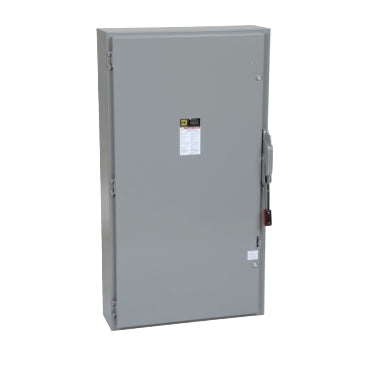

FUSIBLE SWITCH HD 240V 400A 2P NEMA1/NEUTRAL

The Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. Heavy Duty Safety Switches are utilized from commercial and institutional to industrial and manufacturing facilities. F Series safety switches provide significantly higher levels of mechanical endurance than NEMA Type KS-1 or UL98 standards require. The design life of a F-Series switch is a minimum of three times the NEMA requirement. An abundance of copper is used in the heaviest current carrying power paths of all Square D by Schneider Electric Heavy Duty Safety Switches. The more copper for current carrying paths, the lower the temperature rise. Managing temperatures inside the switch is the key to providing greater service life. This heavy duty Single Throw Safety Switch has a rated current of 400A and has a NEMA 1 degree of protection. This fusible disconnect has a short circuit rating of 200kA@240VAC and has a neutral (factory installed). This safety switch has a steel enclosure and is surface mounted. This product is compatible with H or K, R, J or L fuses. The acceptable AWG gauge for this product is AWG 1/0 / 750 kcmil, copper or aluminum and has a tightening torque of 550-550 lbf in. This product complies to UL listed file E2875 standards and comes with an 18 month warranty. Dimensions for this product are 50.25 in (H), 27.63 in (W), 10.13 in (D).

Specifications

Product
Single Throw Safety Switch
Duty Rating
Heavy duty
Device Application
Heavy application
Disconnect Type
Fusible disconnect
Factory Installed Neutral
Neutral (factory installed)
Phase
3 phase
Number of Poles
2
Current Rating
400 A
Voltage Rating
250 V DC;240 V AC
Enclosure Rating
NEMA 1 steel
Motor power hp
50 hp at 240 V AC 50-60 Hz for 3 phase motors;125 hp at 240 V AC 50-60 Hz for 3 phase motors;50 hp at 250 V DC
Short Circuit Current Rating
10 kA H or K;200 kA R or J
fuse type
H or K;R or J
Mounting Type
Surface
Electrical Connection
Lugs
wiring configuration
3-wire
Wire Size
AWG 1/0...750 kcmil copper or aluminium
tightening torque
550 lbf.in (62.14 N.m) (AWG 1/0...750 kcmil)
Depth
10.13 in (257.30 mm)
Width
27.63 in (701.80 mm)
Height
50.25 in (1276.35 mm)
Net Weight
175.05 lb(US) (79.4 kg)
Certifications
UL listed file E2875
Category
00053-H&HU SW;NEMA1;400-1200A
Discount Schedule
DE1
GTIN
785901450429
Returnability
Yes
Country of origin
US
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
14.02 in (35.6 cm)
Package 1 Width
27.99 in (71.1 cm)
Package 1 Length
52.01 in (132.1 cm)
Package 1 Weight
175.00 lb(US) (79.379 kg)
Warranty
18 months
