Details for GV3P73

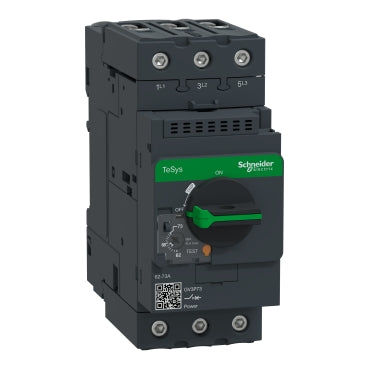

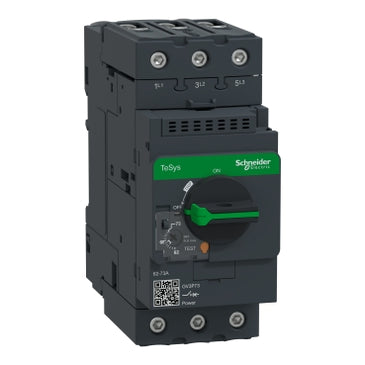

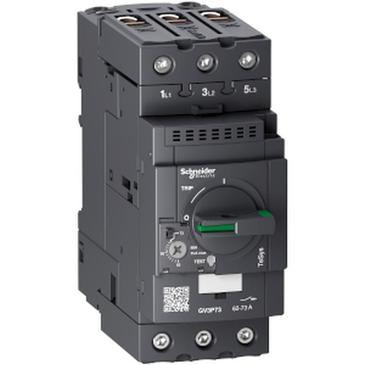

TeSys GV3 Circuit Breaker, Thermal Magnetic, 3-Pole, 73A, 690VAC, EverLink BTR Screw Connectors, IP20

TeSys GV2 Motor Circuit Breaker

Trip Unit Technology: Thermal Magnetic
Poles Description: 3-Pole
Magnetic Tripping Current: 73A
Rated Operational Voltage: 690VAC 50/60 Hz conforming to IEC 60947-2
Connections - Terminals: EverLink BTR Screw Connectors 2 Cables
Degree of Protection: IP20

TeSys GV motor circuit breaker, 3 poles (3P), 73A/690V, for 3-phase motor applications 37kW@400V. It provides a thermal-magnetic protection with a thermal setting range 62-73A, magnetic tripping at 15xIn, high breaking capacity Icu 50kA@400V. Connection by Everlink BTR screw terminals. Start-stop control by rotary knob guaranteed for 20 000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh).

Specifications

range: TeSys Deca;TeSys Deca
product name: TeSys GV3;TeSys Deca
Product or Component Type: Motor circuit breaker
device short name: GV3P
Device Application: Motor protection
trip unit technology: Thermal-magnetic
poles description: 3P
network type: AC
utilisation category: AC-3 IEC 60947-4-1
network frequency: 50/60 Hz
motor power kW: 37 kW 400/415 V AC 50/60 Hz;55 kW 690 V AC 50/60 Hz;45 kW 500 V AC 50/60 Hz
breaking capacity: 50 kA Icu 400/415 V AC 50/60 Hz;50 kA Icu 440 V AC 50/60 Hz;12 kA Icu 500 V AC 50/60 Hz;6 kA Icu 690 V AC 50/60 Hz;65 kA Icu 230/240 V AC 50/60 Hz
[Ics] rated service short-circuit breaking capacity: 100 % 230/240 V AC 50/60 Hz;60 % 400/415 V AC 50/60 Hz;60 % 440 V AC 50/60 Hz;50 % 500 V AC 50/60 Hz;50 % 690 V AC 50/60 Hz
Control Type: Rotary handle
Line Rated Current: 73 A
magnetic tripping current: 1120 A
[Ue] rated operational voltage: 690 V AC 50/60 Hz
[Ith] conventional free air thermal current: 73 A IEC 60947-4-1
[Uimp] rated impulse withstand voltage: 6 kV IEC 60947-2
power dissipation per pole: 8 W
mechanical durability: 50000 cycles
electrical durability: 20000 cycles AC-3 415 V In
rated duty: Continuous IEC 60947-4-1
phase failure sensitivity: Yes IEC 60947-4-1
suitability for isolation: Yes IEC 60947-1
Width: 2.17 in (55 mm)
Height: 5.20 in (132 mm)
Depth: 5.35 in (136 mm)
Net Weight: 2.12 lb(US) (0.96 kg)
Standards: EN/IEC 60947-2;EN/IEC 60947-4-1;UL 60947-4-1;CSA C22.2 No 60947-4-1
Product Certifications: CCC;EAC;BV;LROS (Lloyds register of shipping);DNV-GL;ABS;UL;CSA;UKCA;ATEX
IP degree of protection: IP20 IEC 60529
climatic withstand: IACS E10
Ambient Air Temperature for Storage: -40…176 °F (-40…80 °C)
fire resistance: 1760 °F (960 °C) IEC 60695-2-11
ambient air temperature for operation: -4…140 °F (-20…60 °C)
operating altitude: 9842.52 ft (3000 m)
Category: 22366-MAN STR PROTECTORS-GV1/GV3
Discount Schedule: I11
GTIN: 3606481304513
Returnability: No
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 2.68 in (6.800 cm)
Package 1 Width: 5.83 in (14.800 cm)
Package 1 Length: 6.30 in (16.000 cm)
Package 1 Weight: 2.22 lb(US) (1.007 kg)
Unit Type of Package 2: P06
Number of Units in Package 2: 120
Package 2 Height: 29.53 in (75.000 cm)
Package 2 Width: 23.62 in (60.000 cm)
Package 2 Length: 31.50 in (80.000 cm)
Package 2 Weight: 287.66 lb(US) (130.480 kg)
Warranty: 18 months
