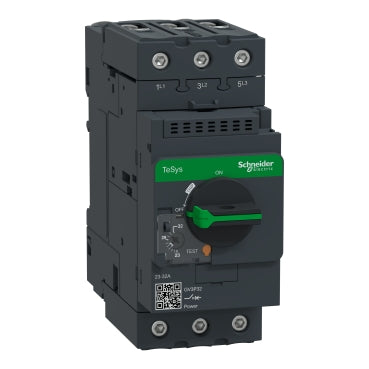

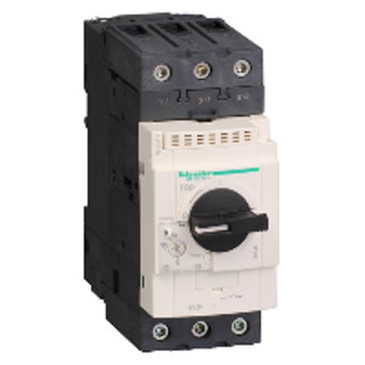

GV3P32 | TeSys GV3 Circuit Breaker, Thermal Magnetic, 3-Pole, 32A, 690VAC, EverLink BTR Screw Connectors, IP20 | Square D by Schneider Electric

Brand: Square DSKU: GV3P32

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to GV3P32

Jump to: Overview & Specifications Reviews

Overview Details for GV3P32

TeSys GV3 Circuit Breaker, Thermal Magnetic, 3-Pole, 32A, 690VAC, EverLink BTR Screw Connectors, IP20

TeSys GV2 Motor Circuit Breaker

Trip Unit Technology: Thermal Magnetic
Poles Description: 3-Pole
Magnetic Tripping Current: 32A
Rated Operational Voltage: 690VAC 50/60 Hz conforming to IEC 60947-2
Connections - Terminals: EverLink BTR Screw Connectors 2 Cables
Degree of Protection: IP20

GV3P32 is a TeSys GV motor circuit breaker from Schneider Electric. It ensures thermal-magnetic protection for motors 15kW@400V and high breaking capacity Icu 100kA. Start-stop control by rotary knob guaranteed for 50 000 cycles AC-3 415V. GV3P32 is a TeSys GV motor circuit breaker from Schneider Electric designed for motor applications 15kW@400V. It fulfills a thermal-magnetic protection with a thermal setting range 23-32A, magnetic tripping at 14xIn and high breaking capacity Icu 100kA@400V. Start-stop control by rotary knob guaranteed for 50 000 cycles AC-3 415V. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach). Complete motor protection in a single device , short-circuit, overload, disconnection. Associated with a TeSys contactor, it ensures a complete type 1 or type 2 Motor Starter solution. Compact, 55mm wide, for DIN-rail and panel mounting. Manual control with rotary knob for Start / Stop, padlockable. Possible mounting of auxiliary contacts front or side mounted (GVAE, GVAN, GVAD) for status and tripping signaling. For large industrial or building LV distribution networks thanks to a high 100kA breaking capacity. Power connections with EverLink BTR screw connectors providing constant tightening pressure. Can be associated with undervoltage or shunt tripping units (GVAU, GVAS) and power distribution busbars (GV3G).

Specifications

range: TeSys Deca;TeSys Deca
product name: TeSys GV3;TeSys Deca
Product or Component Type: Motor circuit breaker
device short name: GV3P
Device Application: Motor protection
trip unit technology: Thermal-magnetic
poles description: 3P
network type: AC
utilisation category: AC-3 IEC 60947-4-1
network frequency: 50/60 Hz IEC 60947-4-1
motor power kW: 15 kW 400/415 V AC 50/60 Hz;18.5 kW 500 V AC 50/60 Hz;22 kW 690 V AC 50/60 Hz
breaking capacity: 100 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2;100 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2;50 kA Icu 440 V AC 50/60 Hz IEC 60947-2;6 kA Icu 690 V AC 50/60 Hz IEC 60947-2;12 kA Icu 500 V AC 50/60 Hz IEC 60947-2
[Ics] rated service short-circuit breaking capacity: 100 % 230/240 V AC 50/60 Hz IEC 60947-2;100 % 440 V AC 50/60 Hz IEC 60947-2;100 % 400/415 V AC 50/60 Hz IEC 60947-2;50 % 500 V AC 50/60 Hz IEC 60947-2;50 % 690 V AC 50/60 Hz IEC 60947-2
Control Type: Rotary handle
Line Rated Current: 32 A
magnetic tripping current: 448 A
[Ue] rated operational voltage: 690 V AC 50/60 Hz IEC 60947-2
[Ith] conventional free air thermal current: 32 A IEC 60947-4-1
[Uimp] rated impulse withstand voltage: 6 kV IEC 60947-2
power dissipation per pole: 8 W
mechanical durability: 50000 cycles
electrical durability: 50000 cycles AC-3 415 V In
rated duty: Continuous IEC 60947-4-1
phase failure sensitivity: Yes IEC 60947-4-1
suitability for isolation: Yes IEC 60947-1
Width: 2.17 in (55 mm)
Height: 5.20 in (132 mm)
Depth: 5.35 in (136 mm)
Net Weight: 2.12 lb(US) (0.96 kg)
Standards: EN/IEC 60947-2;EN/IEC 60947-4-1;UL 60947-4-1;CSA C22.2 No 60947-4-1
Product Certifications: CCC;EAC;BV;LROS (Lloyds register of shipping);DNV-GL;ABS;UL;CSA;UKCA;ATEX
IP degree of protection: IP20 IEC 60529
climatic withstand: IACS E10
Ambient Air Temperature for Storage: -40…176 °F (-40…80 °C)
fire resistance: 1760 °F (960 °C) IEC 60695-2-11
ambient air temperature for operation: -4…140 °F (-20…60 °C)
operating altitude: 9842.52 ft (3000 m)
Category: 22366-MAN STR PROTECTORS-GV1/GV3
Discount Schedule: I11
GTIN: 3389119405386
Returnability: Yes
Country of origin: FR
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 6.30 in (16 cm)
Package 1 Width: 2.56 in (6.5 cm)
Package 1 Length: 5.71 in (14.5 cm)
Package 1 Weight: 2.21 lb(US) (1.001 kg)
Unit Type of Package 2: P06
Number of Units in Package 2: 120
Package 2 Height: 29.53 in (75 cm)
Package 2 Width: 23.62 in (60 cm)
Package 2 Length: 31.50 in (80 cm)
Package 2 Weight: 293.48 lb(US) (133.12 kg)
Warranty: 18 months
