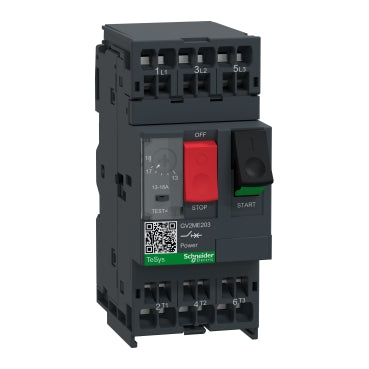

GV2ME203 | TeSys GV2 Thermal-Magnetic Circuit Breaker, 13-18 A, Spring Terminals | Square D by Schneider Electric

Brand: Square DSKU: GV2ME203

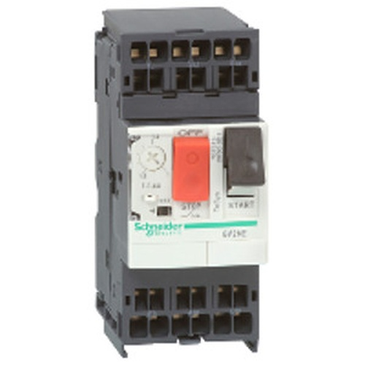

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to GV2ME203

Jump to: Overview & Specifications Reviews

Overview Details for GV2ME203

TeSys GV2 Thermal-Magnetic Circuit Breaker, 13-18 A, Spring Terminals

TeSys GV2 Circuit Breaker

Trip Unit Technology: Thermal-Magnetic
Rated Current: 13-18 A
Connections: Spring Terminals
IP Degree of Protection: IP20

TeSys GV motor circuit breaker, 3 poles (3P), 18A/690V, for 3-phase motor applications 7.5kW@400V. It provides a thermal-magnetic protection with a thermal setting range 13-18A, magnetic tripping at 13xIn, high breaking capacity Icu 15kA@400V. Connection by spring terminals. Start-stop control by push-button guaranteed for 100 000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh).

Specifications

range: TeSys Deca;TeSys Deca
product name: TeSys GV2;TeSys Deca
Product or Component Type: Motor circuit breaker
device short name: GV2ME
Device Application: Motor protection
poles description: 3P
network type: AC
Control Type: Push-button
motor power kW: 7.5 kW 400/415 V AC 50/60 Hz;9 kW 500 V AC 50/60 Hz
Line Rated Current: 18 A
trip unit technology: Thermal-magnetic
magnetic tripping current: 223 A
suitability for isolation: Yes IEC 60947-1 § 7-1-6
phase failure sensitivity: Yes IEC 60947-4-1
utilisation category: AC-3 IEC 60947-4-1;Category A IEC 60947-2
[Ue] rated operational voltage: 690 V AC 50/60 Hz IEC 60947-2
[Ith] conventional free air thermal current: 18 A IEC 60947-4-1
network frequency: 50/60 Hz IEC 60947-4-1
[Uimp] rated impulse withstand voltage: 6 kV IEC 60947-2
power dissipation per pole: 2.5 W
mechanical durability: 100000 cycles
electrical durability: 100000 cycles AC-3 415 V;415 V
rated duty: Continuous IEC 60947-4-1
breaking capacity: 100 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2;3 kA Icu 690 V AC 50/60 Hz IEC 60947-2;15 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2;8 kA Icu 440 V AC 50/60 Hz IEC 60947-2;6 kA Icu 500 V AC 50/60 Hz IEC 60947-2
[Ics] rated service short-circuit breaking capacity: 100 % 230/240 V AC 50/60 Hz IEC 60947-2;75 % 690 V AC 50/60 Hz IEC 60947-2;75 % 500 V AC 50/60 Hz IEC 60947-2;50 % 400/415 V AC 50/60 Hz IEC 60947-2;50 % 440 V AC 50/60 Hz IEC 60947-2
Height: 3.98 in (101 mm)
Width: 1.77 in (45 mm)
Depth: 3.09 in (78.5 mm)
Net Weight: 0.62 lb(US) (0.28 kg)
Standards: EN/IEC 60947-2;EN/IEC 60947-4-1
Product Certifications: CCC;UL;CSA;EAC;ATEX;BV;LROS (Lloyds register of shipping);UKCA;DNV-GL;RINA
climatic withstand: IACS E10
IP degree of protection: IP20 IEC 60529
ambient air temperature for operation: -4…140 °F (-20…60 °C)
Ambient Air Temperature for Storage: -40…176 °F (-40…80 °C)
fire resistance: 1760 °F (960 °C) IEC 60695-2-11
operating altitude: 6561.68 ft (2000 m)
Category: 22367-MANUAL STR PROTECTOR - GV2
Discount Schedule: I11
GTIN: 3389110346473
Returnability: No
Country of origin: FR
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 2.20 in (5.600 cm)
Package 1 Width: 4.37 in (11.100 cm)
Package 1 Length: 3.43 in (8.700 cm)
Package 1 Weight: 11.36 oz (322 g)
Unit Type of Package 2: S02
Number of Units in Package 2: 20
Package 2 Height: 5.91 in (15.000 cm)
Package 2 Width: 11.81 in (30.000 cm)
Package 2 Length: 15.75 in (40.000 cm)
Package 2 Weight: 14.75 lb(US) (6.689 kg)
Unit Type of Package 3: P06
Number of Units in Package 3: 320
Package 3 Height: 29.53 in (75.000 cm)
Package 3 Width: 23.62 in (60.000 cm)
Package 3 Length: 31.50 in (80.000 cm)
Package 3 Weight: 261.95 lb(US) (118.820 kg)
Warranty: 18 months
