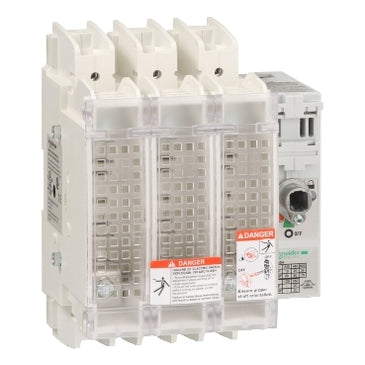

GS2JU3N | Disconnect Switch Fusible 600V 100A 3P | Square D by Schneider Electric

Brand: Square DSKU: GS2JU3N

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to GS2JU3N

Jump to: Overview & Specifications Reviews

Overview Details for GS2JU3N

Disconnect Switch Fusible 600V 100A 3P

TeSys GS fuse switch-disconnector, 3 poles (3P), 100A/750V, to be used with class J fuse links up to 100A, for motor applications up to 51kW@400V AC-23. To be equipped with an external front side mounting operating handle GS2AH (several models available). It provides screw terminals with 3P terminal shrouds, high short circuit current rating 200kA@600V. Add-on auxiliary contact modules, front mounting GS1AM (early-break and position signaling), side mounting GS1AN (position signaling) can complete the assembly (to be ordered separately). UL/CSA certified, Green Premium compliant (RoHS/REACh).

Specifications

range: TeSys
product name: TeSys GS
device short name: GS2JU
Product or Component Type: Switch-disconnector-fuse
Device Application: Protection
poles description: 3P
protected poles description: 3t
contacts type and composition: 3 NO
[Ith] conventional free air thermal current: 100 A 104 °F (40 °C)
[Ie] rated operational current: 100 A
fuse type: UL
fuse size: J
network type: AC;DC
Network Frequency: 50/60 Hz
type of operating handle: External frontal
Mounting Support: Plate
[Ui] rated insulation voltage: 750 V
[Uimp] rated impulse withstand voltage: 8 kV
rated operational power in W: 51 kW 400 V;63 kW 500 V;90 kW 690 V
short-circuit withstand: 22 kA
mechanical durability: 10000 cycles
electrical durability: 6000 cycles
connections - terminals: lugs-ring terminals;Power circuit bars 0.05…0.07 in² (34…42 mm²)
tightening torque: Power circuit 35.40 lbf.in (4 N.m)
Standards: CSA C22.2 No 4;UL98
IP degree of protection: IP20 IEC 60529 with terminal cover)
Ambient air temperature for operation: -4…158 °F (-20…70 °C)
Ambient Air Temperature for Storage: -40…176 °F (-40…80 °C)
fire resistance: 1760 °F (960 °C) body
Height: 7.32 in (186 mm)
Width: 5.88 in (149.3 mm)
Depth: 4.81 in (122.2 mm)
Net Weight: 6.09 lb(US) (2.761 kg)
Category: 22640-IEC DISCONNECT-GS1;LK3
Discount Schedule: I11
GTIN: 3606480512346
Returnability: Yes
Country of origin: FR
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 5.91 in (15.000 cm)
Package 1 Width: 9.25 in (23.500 cm)
Package 1 Length: 9.65 in (24.500 cm)
Package 1 Weight: 5.08 lb(US) (2.306 kg)
Unit Type of Package 2: S04
Number of Units in Package 2: 4
Package 2 Height: 11.81 in (30.000 cm)
Package 2 Width: 15.75 in (40.000 cm)
Package 2 Length: 23.62 in (60.000 cm)
Package 2 Weight: 22.13 lb(US) (10.036 kg)
Unit Type of Package 3: P06
Number of Units in Package 3: 16
Package 3 Height: 29.53 in (75.000 cm)
Package 3 Width: 23.62 in (60.000 cm)
Package 3 Length: 31.50 in (80.000 cm)
Package 3 Weight: 109.83 lb(US) (49.816 kg)
Warranty: 18 months
