GS2GU3N | TeSys GS - Switch-Disconnector-fuse - 3 P - UL - 60 A- fuse size J | Square D by Schneider Electric

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to GS2GU3N

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Square D GS2GU3N Documents

Datasheet More Info

Overview

Details for GS2GU3N

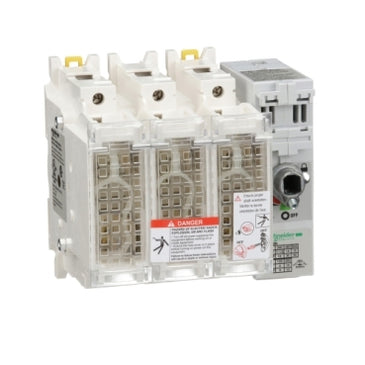

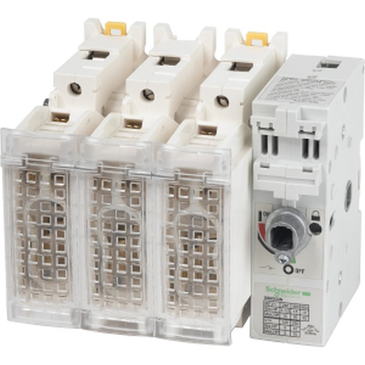

TeSys GS - Switch-Disconnector-fuse - 3 P - UL - 60 A- fuse size J

TeSys GS fuse switch-disconnector, 3 poles (3P), 60A/750V, to be used with class J fuse links up to 60A, for motor applications up to 30kW@400V AC-23. To be equipped with an external front side mounting operating handle GS2AH (several models available). It provides screw terminals with 3P terminal shrouds, high short circuit current rating 100kA@600V. Add-on auxiliary contact modules, front mounting GS1AM (early-break and position signaling), side mounting GS1AN (position signaling) can complete the assembly (to be ordered separately). UL/CSA certified, Green Premium compliant (RoHS/REACh).

Specifications

range: TeSys
product name: TeSys GS
device short name: GS2GU
Product or Component Type: Switch-disconnector-fuse
Device Application: Protection
poles description: 3P
protected poles description: 3t
contacts type and composition: 3 NO
[Ith] conventional free air thermal current: 60 A 104 °F (40 °C)
[Ie] rated operational current: 60 A
fuse type: UL
fuse size: J
network type: DC;AC
Network Frequency: 50/60 Hz
type of operating handle: External frontal
Mounting Support: Plate
[Ui] rated insulation voltage: 750 V
[Uimp] rated impulse withstand voltage: 8 kV
rated operational power in W: 30 kW 400 V;40 kW 500 V;55 kW 690 V
short-circuit withstand: 17.6 kA
mechanical durability: 10000 cycles
electrical durability: 6000 cycles
connections - terminals: Power circuit lugs-ring terminals 0.01…0.02 in² (6…16 mm²)
tightening torque: Power circuit 30.98 lbf.in (3.5 N.m)
Standards: CSA C22.2 No 4;UL98
IP degree of protection: IP20 IEC 60529 with terminal cover)
Ambient air temperature for operation: -4…158 °F (-20…70 °C)
Ambient Air Temperature for Storage: -40…176 °F (-40…80 °C)
fire resistance: 1760 °F (960 °C) body
Height: 5.35 in (136 mm)
Width: 5.88 in (149.3 mm)
Depth: 4.84 in (123 mm)
Category: 22640-IEC DISCONNECT-GS1;LK3
Discount Schedule: I11
GTIN: 3606480512322
Returnability: Yes
Country of origin: FR
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 6.18 in (15.700 cm)
Package 1 Width: 7.01 in (17.800 cm)
Package 1 Length: 9.06 in (23.000 cm)
Package 1 Weight: 3.90 lb(US) (1.770 kg)
Unit Type of Package 2: S04
Number of Units in Package 2: 5
Package 2 Height: 11.81 in (30.000 cm)
Package 2 Width: 15.75 in (40.000 cm)
Package 2 Length: 23.62 in (60.000 cm)
Package 2 Weight: 20.94 lb(US) (9.496 kg)
Unit Type of Package 3: P06
Number of Units in Package 3: 20
Package 3 Height: 29.53 in (75.000 cm)
Package 3 Width: 23.62 in (60.000 cm)
Package 3 Length: 31.50 in (80.000 cm)
Package 3 Weight: 107.38 lb(US) (48.708 kg)
Warranty: 18 months
