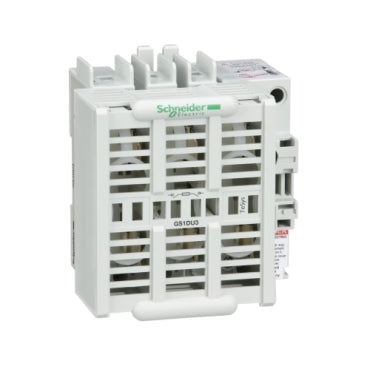

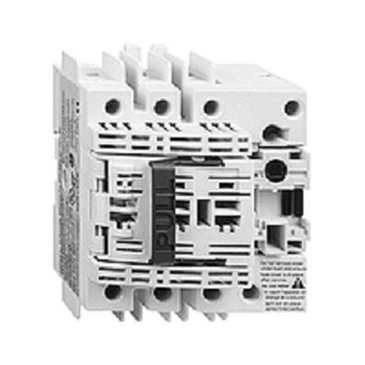

GS1DU3 | Switch-disconnector fuse body GS1 - TeSys GS - 3 poles - UL 30 A - fuse size J | Square D by Schneider Electric

Brand: Square DSKU: GS1DU3

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to GS1DU3

Jump to: Overview & Specifications Reviews

Overview Details for GS1DU3

Switch-disconnector fuse body GS1 - TeSys GS - 3 poles - UL 30 A - fuse size J

TeSys GS fuse switch-disconnector, 3 poles (3P), 30A/800V, to be used with class J fuse links up to 30A, for motor applications up to 15kW@400V AC-23. To be equipped with a direct operating handle GS1AH106 (to be ordered separately), or with an external front side mounting operating handle (several models available). It provides screw terminals with 3P terminal shrouds, high short circuit current rating 100kA@600V. Add-on auxiliary contact modules front mounting GS1AM (early-break and position signaling) can complete the assembly (to be ordered separately). UL/CSA certified, Green Premium compliant (RoHS/REACh).

Specifications

range: TeSys
product name: TeSys GS
device short name: GS1D
Product or Component Type: Switch-disconnector-fuse
Device Application: Protection
design: Compact
poles description: 3P
protected poles description: 3t
contacts type and composition: 3 NO
[Ith] conventional free air thermal current: 30 A 104 °F (40 °C)
[Ie] rated operational current: 30 A
fuse type: UL
fuse size: J
network type: AC;DC
Network Frequency: 50/60 Hz
type of operating handle: External frontal
Mounting Support: Plate;Rail
[Ui] rated insulation voltage: 690 V
[Uimp] rated impulse withstand voltage: 8 kV
rated operational power in W: 15 kW 400 V;18.5 kW 500 V;25 kW 690 V
short-circuit withstand: 5.5 kA
mechanical durability: 10000 cycles
electrical durability: 6000 cycles
connections - terminals: Power circuit lugs-ring terminals 0.00…0.01 in² (2…6 mm²)
tightening torque: Power circuit 26.55 lbf.in (3 N.m)
Standards: CSA C22.2 No 5;UL 489
Product Certifications: LOVAG;LROS (Lloyds register of shipping);ASEFA
IP degree of protection: IP20 IEC 60529 with terminal cover)
Ambient Air Temperature for Operation: -4…158 °F (-20…70 °C)
Ambient Air Temperature for Storage: -40…176 °F (-40…80 °C)
fire resistance: 1760 °F (960 °C) body IEC 60695-2-1
Height: 4.57 in (116 mm)
Width: 4.13 in (105 mm)
Depth: 3.90 in (99 mm)
Net Weight: 1.54 lb(US) (0.7 kg)
Category: 22640-IEC DISCONNECT-GS1;LK3
Discount Schedule: I11
GTIN: 3389110179545
Returnability: Yes
Country of origin: FR
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 4.96 in (12.6 cm)
Package 1 Width: 5.35 in (13.6 cm)
Package 1 Length: 6.18 in (15.7 cm)
Package 1 Weight: 22.54 oz (639.0 g)
Unit Type of Package 2: S03
Number of Units in Package 2: 8
Package 2 Height: 11.81 in (30 cm)
Package 2 Width: 11.81 in (30 cm)
Package 2 Length: 15.75 in (40 cm)
Package 2 Weight: 12.32 lb(US) (5.589 kg)
Package 3 Height: 30.31 in (77 cm)
Warranty: 18 months
